10 pieces, 6 digits LCD panel TN LCD with silk print -40~80C operating temperature GD46532

GD46532
Custom made TN Positive Segment LCD, 12 o'colok, with 6 digits and dynamic drive. Can be used with backlight for working in dark surroundings. Operating temperature -40~80C, so is suitable for industrial instrument.
Price:
USD
$10.00
    Please select the information you wantX
Quantity:
-
+
(2000 available)
  • Description
  • Reviews

Any questions, just feel free to contact me, my email is: clara@good-display.com

There are plenty in stock, welcome to your order!

General Description

This is a custom made TN Positive Segment LCD, 12 o'colok viewing direction, with 6 digits and dynamic drive.

Transflective type, so can be used with backlight for working in dark surroundings. Operating temperature is -40~80C,

so is suitable for industrial instrument.



Feature

Wide temperature range
Can be used with backlight for working in dark surrounding.

The above price inclundes

1) Transflective segment lcd GD46532 *10pcs

Main Parameters

Part   Number

GD46532

Display   Content

6 digits

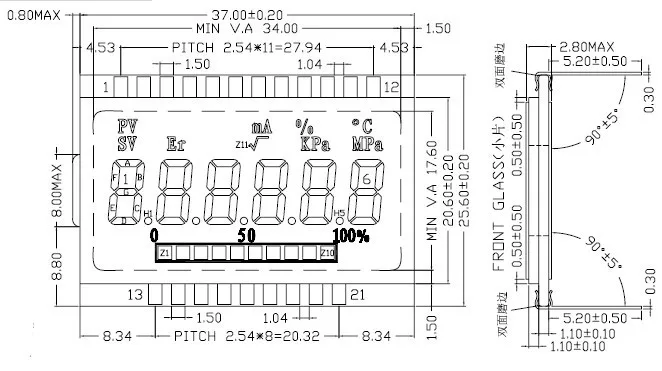

Outline   Dimension

37.0*25.6*2.8mm

Active   Area:

34.0*17.6

View   Direction

12 o'clock

Operating Voltage

3.0V

Operating Temp

-40~80C

Storage Temp

-40~90C

Multiplex Level

1/4 Duty, 1/3 Bias

Display Type

TN, Positive

Polarizer Mode

Transflective

Connector

Pin



Specification download
http://www.e-paper-display.com/products_detail/productId=165.html

Warranty

Payment and Shipmen
1)We accept credit cards, T/T bank transfer,paypal, Moneybookers and debit cards.
2)We cannot arrange shipments on weekend or public holidays.
3)Your orders will be shipped out within 48 working hours on receipt of cleared payment. (Excludes Saturdays & Sundays)
4) We'll add a tracking number after sending the item so that you can track your parcel.
5)Please be advised that the international delivery time highly depends on your local customs and post services policy.
6)Customs fees and import duties for exports are your responsibility.
We cannot predict or prepay these fees. We will charge you for any duties or customs fees erroneously charged to us.
Feedback
1)We'll leave POSITIVE FEEDBACK on receipt of cleared payment.
2)If you're satisfied with the item and our service, please leave POSITIVE FEEDBACK, it's important to us.
3)Once any problems occured, please contact us first. We'll try our best to work things out.
