Inventory Promotion!low power consumption segment FSTN COG lcd module GDM0328

GDM0328
GDM0328 is 8digits+ICON COG lcd module,single led backlight with white color,fstn-lcd positive,dark blue text on the grey background,wide operating temperature range,rohs compliant.
Price:
USD
$4.00
    Please select the information you wantX
Quantity:
-
+
(10 available)
  • Description
  • Reviews

Any questions, just feel free to contact me, my email is: clara@good-display.com

General Description

There are total two versions of this type:12:00 view,If you do not have special request for samples, then we will send randomly according to our stock. If you have special request, then please contact us in advance for details.



GDM0328 is 8digits+ICON COG lcd module,EM6110 controller,I2C Serial interface,single led backlight with white  color included can be dimmed easily with a resistor or PWM,fstn-lcd positive,dark blue text on the grey background,wide operating temperature range,rohs compliant.

It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.



Main Parameters

Part Number

GDM0328

Display type

FSTN,Transflective/Positive

Display format

Digits+ICON

Backlight Color

White

Power Supply

DC5.0V

Interface

I2C Serial

Viewing Angle

12 o'clock

Controller

EM6110

Dimensional Outline

55.8(W)x37.0(H)x2.8(T)mm

Viewing Area

45.0(W)x27.0(T)mm

Connector

FPC

Multi level

1/4 Duty,1/3 Bias

Operating Temp

-10~+60C

Stroage Temp

-20~+70C


product details

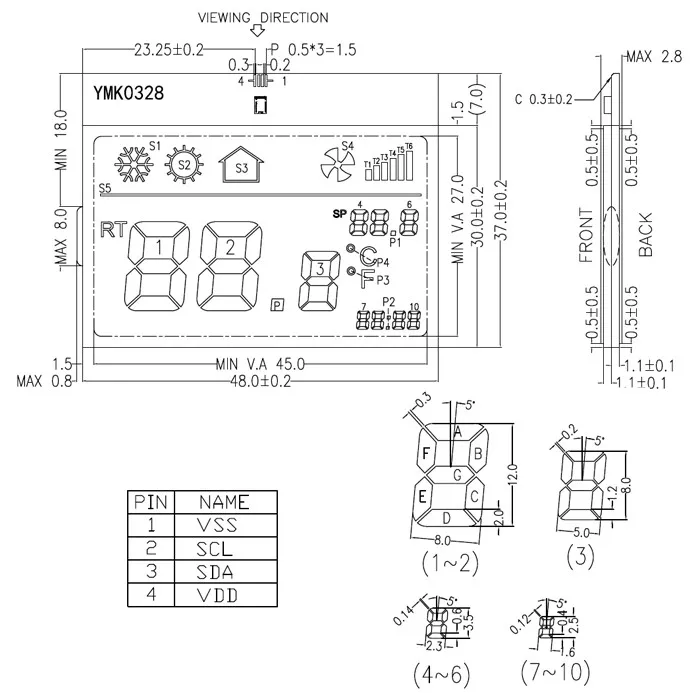

GDM0328 Drawing

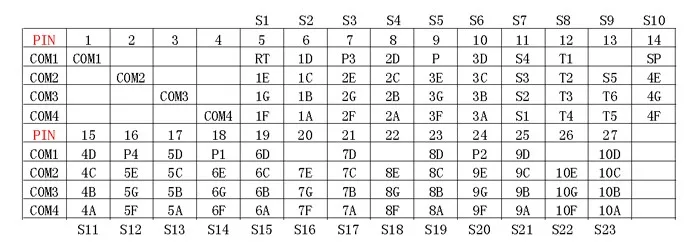

GDM0328 PIN Assignment

GDM0328 Picture
