☆ INTRODUCTION
This is a set of E-PAPER HAT with 2.9 inch e-paper with 296x128 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This 2.9 inch e-paper GDEW029T5D is perfect for low power devices powered by solar or batteries.
This connection board DESPI-C02 used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow)
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
Use our free e-paper software to prepare your bitmap image for this display.
☆ FEATURE
● Support 4 Grayscale
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● Bistable. (Will continue to display with no power source)
● Support partial refresh. The partial refresh rate is 0.3s/frame
● I2C Signal Master Interface to read external temperature sensor.
☆ THE ABOVE PRICE INCLUDE

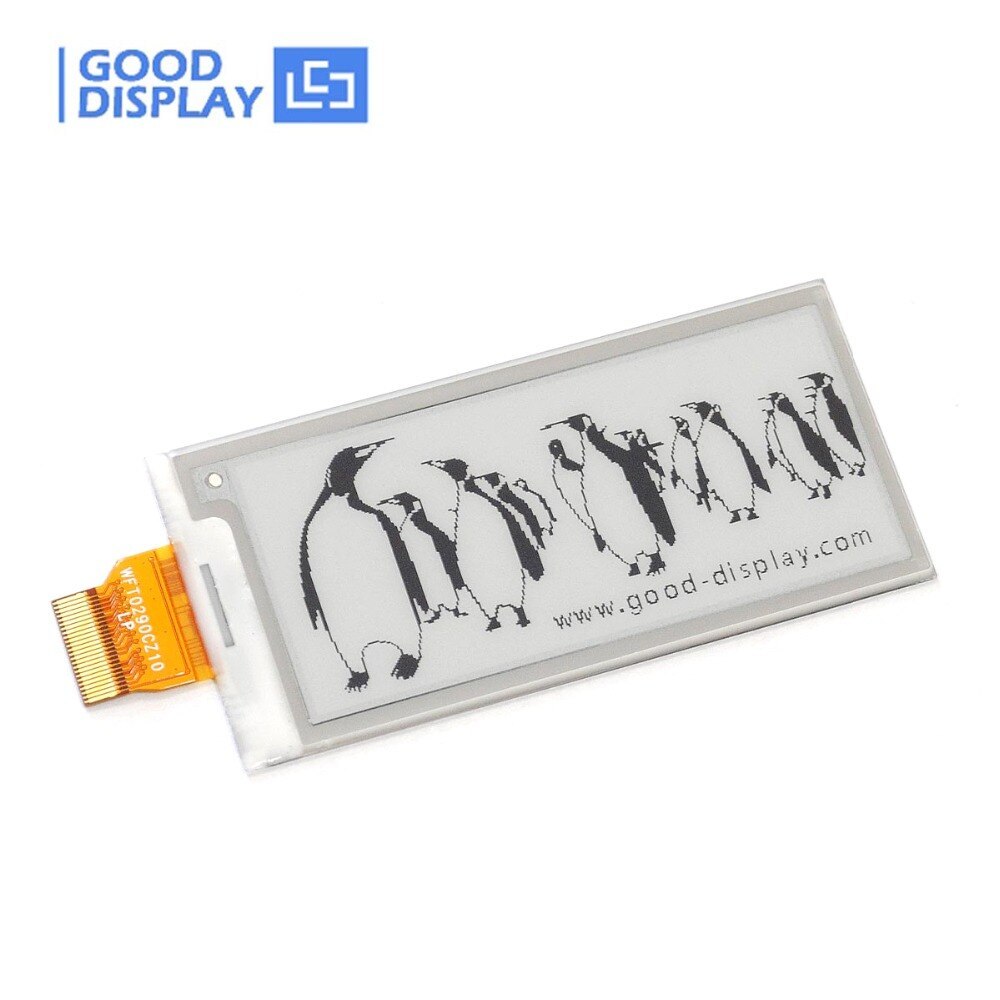

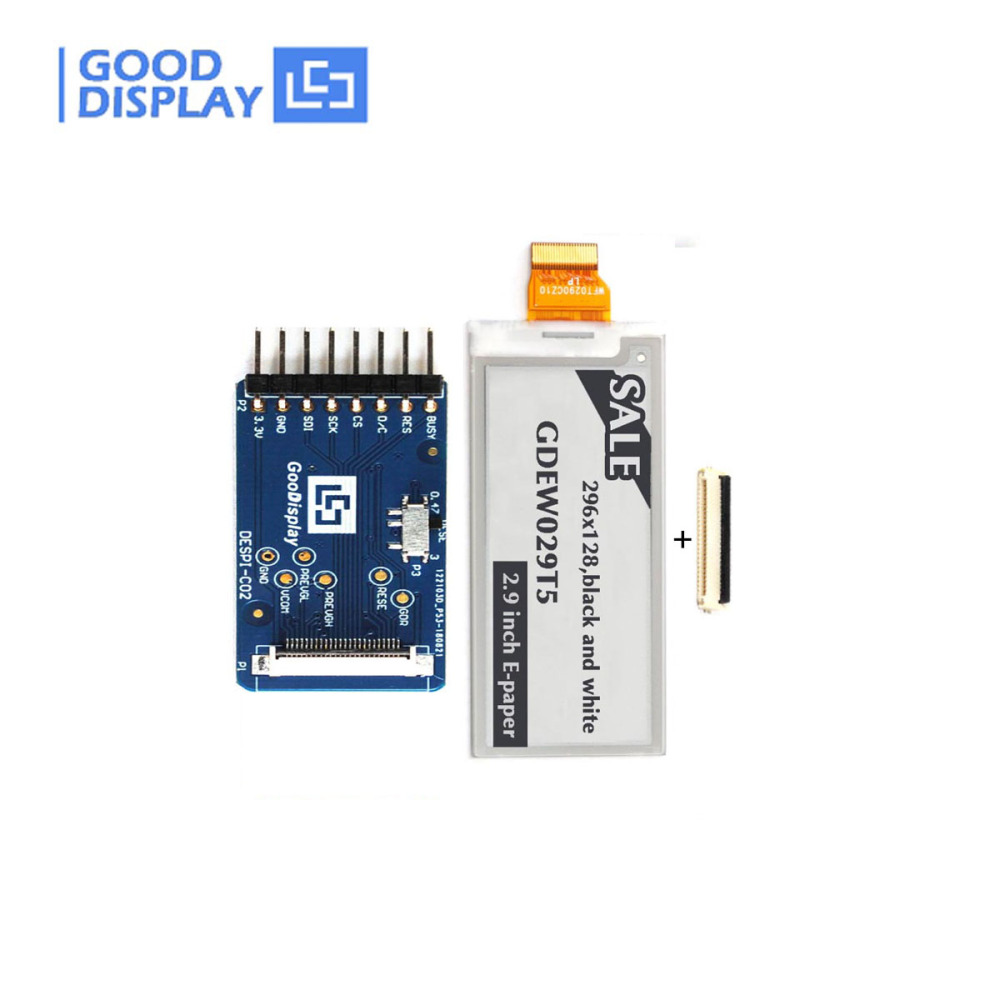

1) 296x128 Resolution GDEW029T5D*1pc
2) Matched FPC Connector*1pc

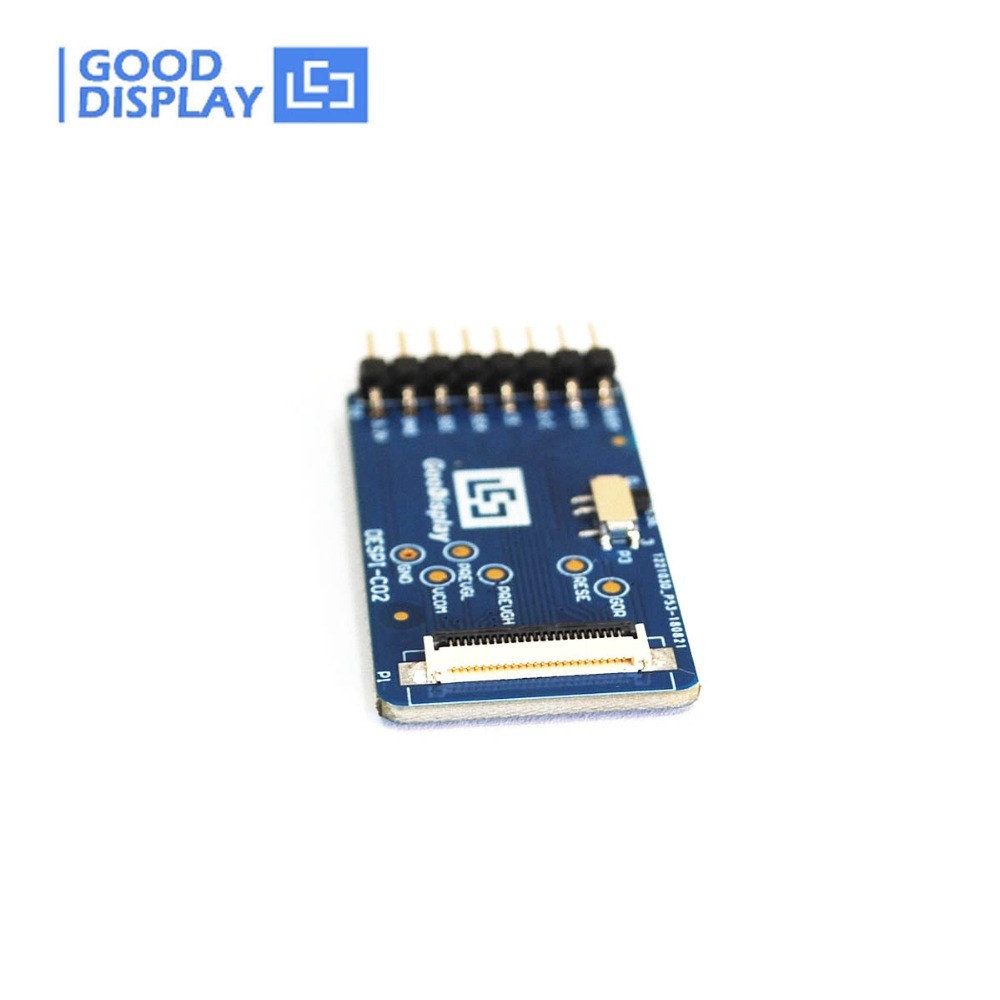

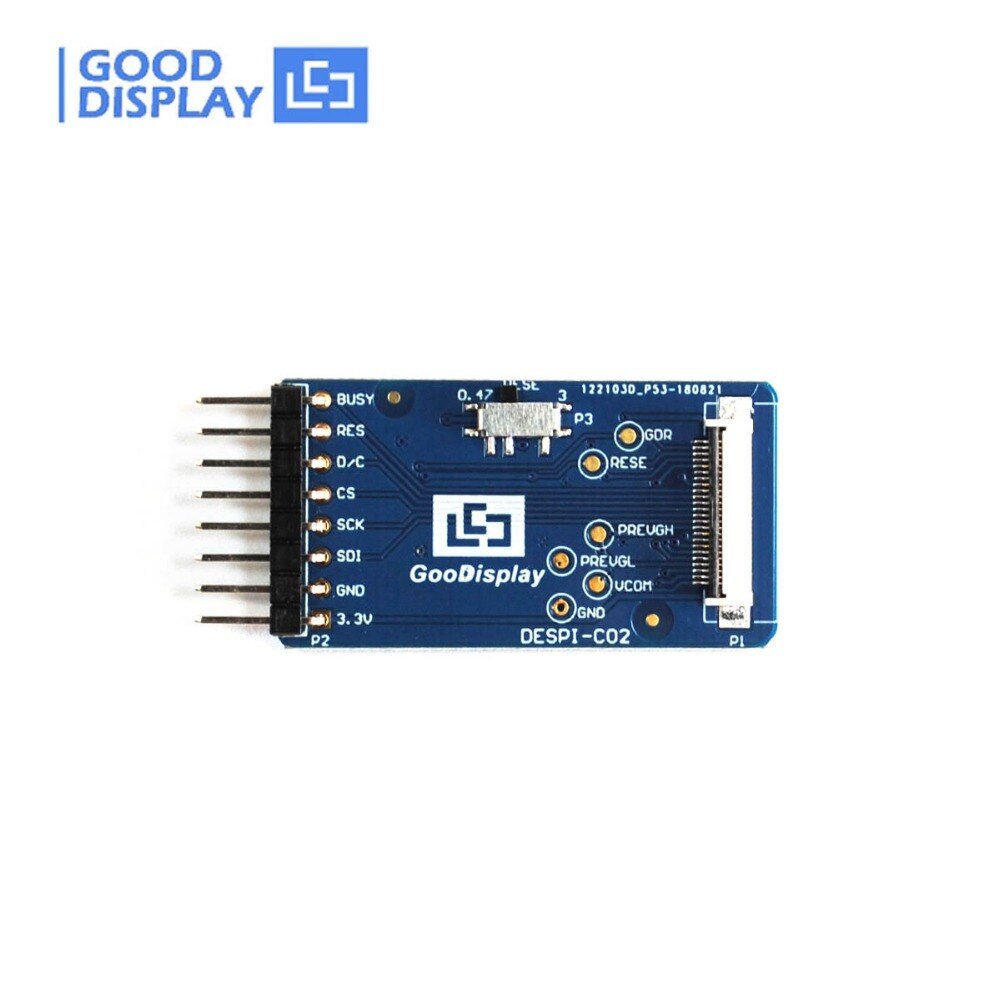

3) FPC Connector Board DESPI-C02*1pc

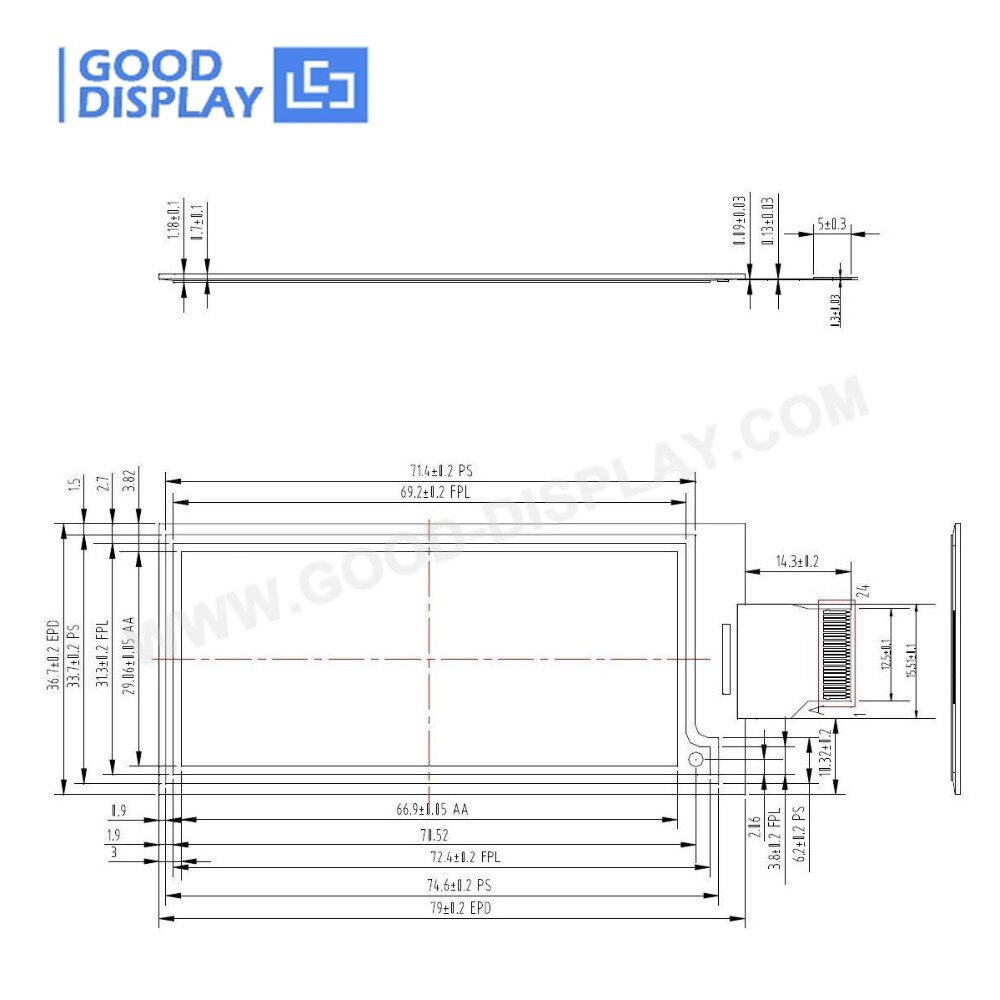

☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEW029T5D
|
|
SIZE
|
2.9 inch
|
|
TYPE
|
Dot Matrix
|
|
IC
|
UC8151D
|
|
RESOLUTION
|
296x128
|
|
OUTLINE SIZE(mm)
|
79x36.7x1.18
|
|
ACTIVE SIZE(mm)
|
66.9x29.06
|
|
PIXEL PITCH(mm)
|
0.227x0.226
|
|
OPERATING TEMP.
|
0℃~50℃
|
|
STORAGE TEMP.
|
-25℃~70℃
|
|
CONNECTOR
|
24 Pin FPC
|
|
MAX GRAYSCALE
|
4
|
|
COLOR
|
Black, White
|
|
INTERFACE
|
SPI
|
|
FULL REFRESH(s)
|
3
|
|
PARTIAL REFRESH RATE(s)
|
0.3
|
|
POWER CONSUMPTION OF THE REFRESH(mW)
|
26.4
|
|
STANDBY POWER CONSUMPTION (mW)
|
0.0165
|
|
PART NUMBER
|
DESPI-C02
|
|
PLATFORM
|
STM32
|
|
FUNCTION
|
Connection E-paper Display with Drive Board
|
|
OUTSIDE DIMENSION
|
41x22mm
|
|
INTERFACE
|
SPI
|
|
POWER INPUT
|
DC3.3V
|
|
FEATURE
|
Fully and Partial Refresh
|
|
OPERATING TEMP.
|
-20℃~70℃
|
☆ 2.9 INCH E-PAPER DISPLAY
|
Part Number
|
Color
|
IC |
Features
|
Refresh Time |
| GDEY029T94 |
B/W |
SSD1680 |
Partial refresh, 4 Grayscale |
3s |
|
GDEW029T5D
|
B/W
|
UC8151D |
Fast refresh, Partial refresh, 4 Grayscale |
0.82s(fast refresh)
|
| GDEY029Z94 |
B/W/R |
SSD1680A |
Red |
12s |
| GDEH029Z13 |
B/W/R |
UC8151D |
Red |
15s |
| GDEW029Z13 |
B/W/R |
UC8151D |
Red |
12s |
☆ ABOUT US
Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com
|
Model
|
GDEW029T5D
|
|
Dimension
|
79.0 (H)x36.7 (V) x1.05(D)mm
|
|
Screen Size
|
2.9inch
|
| IC |
UC8151D |
|
E-Paper Type
|
E-ink (EPD)
|
|
Resolution
|
296(H)x128(V)
|
|
Pixel Pitch
|
0.227×0.226mm
|
|
Active Area
|
66.9 (H)×29.1 (V)mm
|
|
Operation Temperature
|
0Cto60C
|
|
Storage Temperature
|
-25Cto85C
|
|
Weight
|
7.35±0.5g
|
|
Pixel Configuration
|
Rectangle
|
| Max Grayscale |
4 |
| Power consumption of the refresh(mW) |
26.4 |
| Standby power consumption Pc(mW) |
0.0165 |
| Time of refresh(s) |
3 |
| Time of partial refresh(s) |
0.3 |

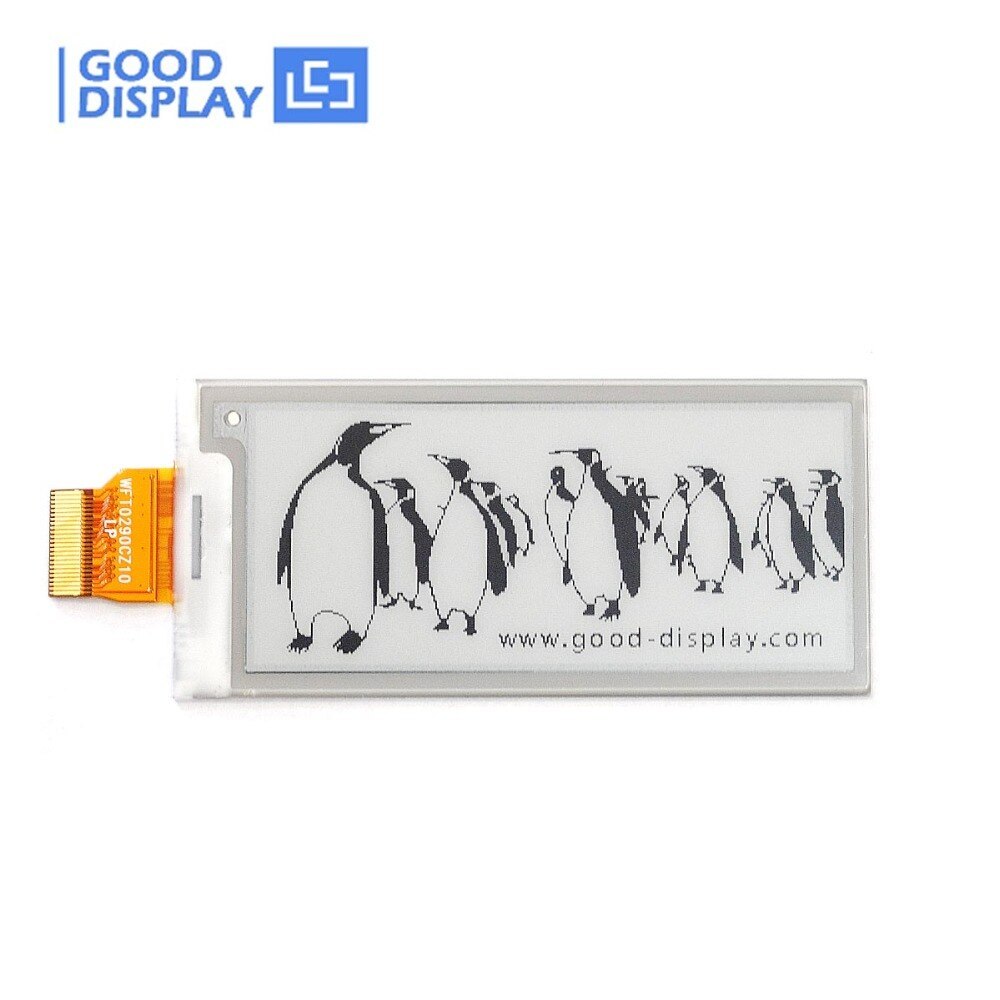

Picture show &Picture show of Connector
|
Part Number
|
Color
|
Features
|
Refresh Time |
| GDEM029T94 |
B/W |
Partial refresh, 4 Grayscale |
3S |
| GDEW029M06 |
B/W |
DES,Wide working temperature range, Partial refresh |
3S |
| GDEM029E97 |
B/W
|
SPI interface
|
--
|
|
GDEW029T5D
|
B/W
|
Fast refresh, Partial refresh, 4 Grayscale |
0.82S(fast refresh)
|
|
GDEH029D57LT
|
B/W
|
Ultra-low temperature
|
3S
|
| GDEW029I6FD |
B/W
|
Flexible, Partial refresh, 4 Grayscale
|
3S
|
| GDEH029Z92 |
B/W/R |
Three colors |
13S |
| GDEH029Z13 |
B/W/R |
Three colors |
15S |
