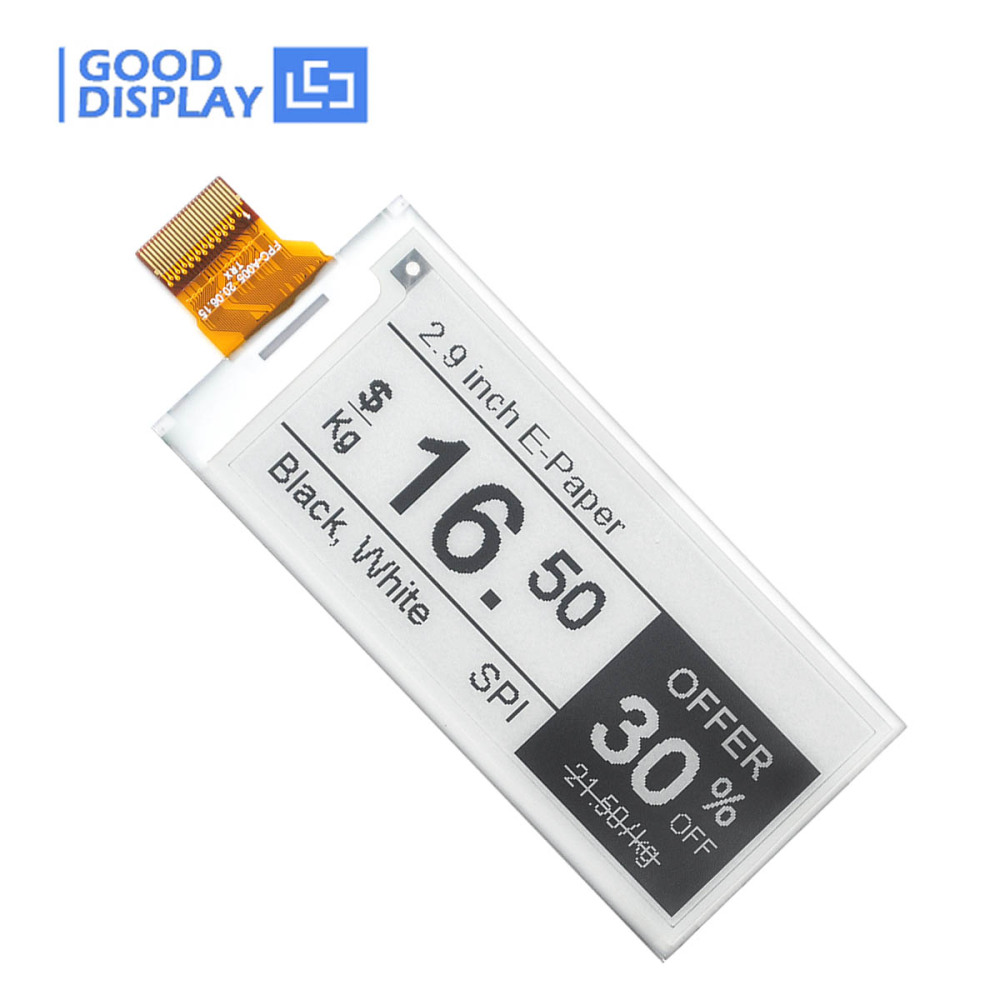

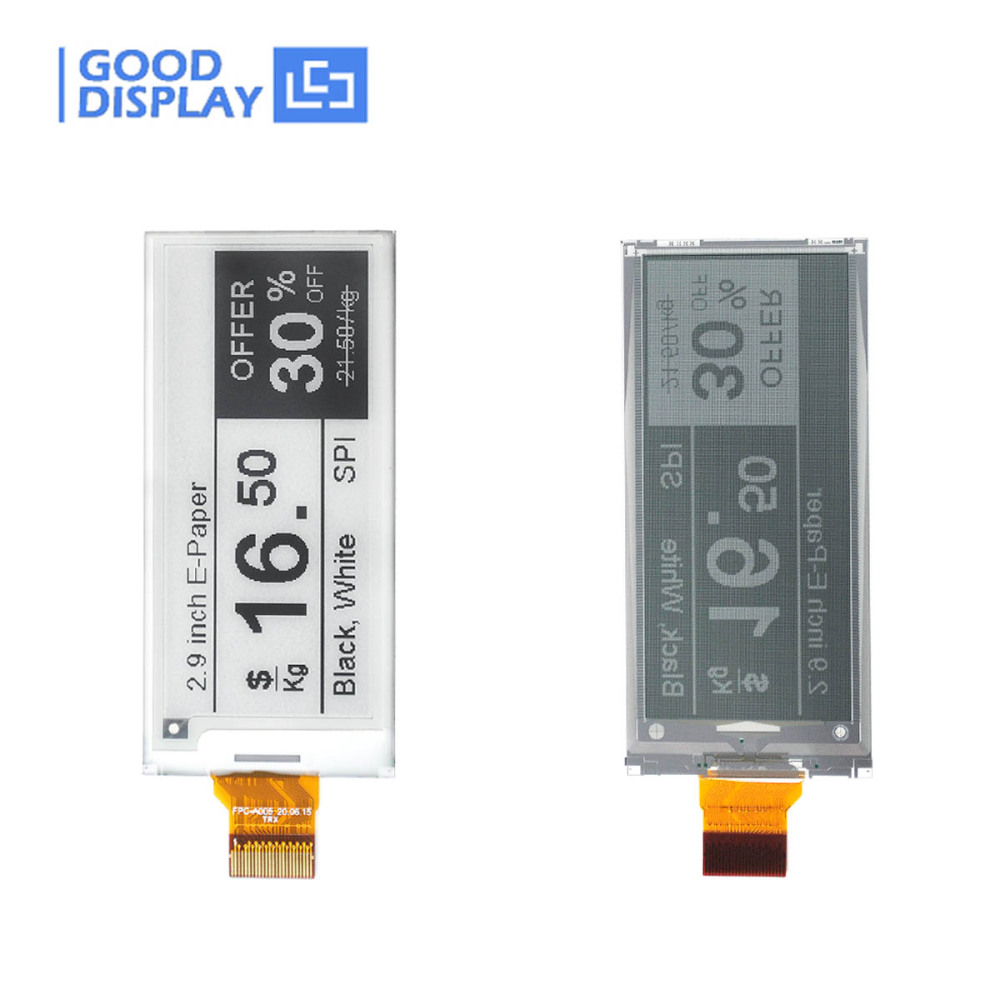

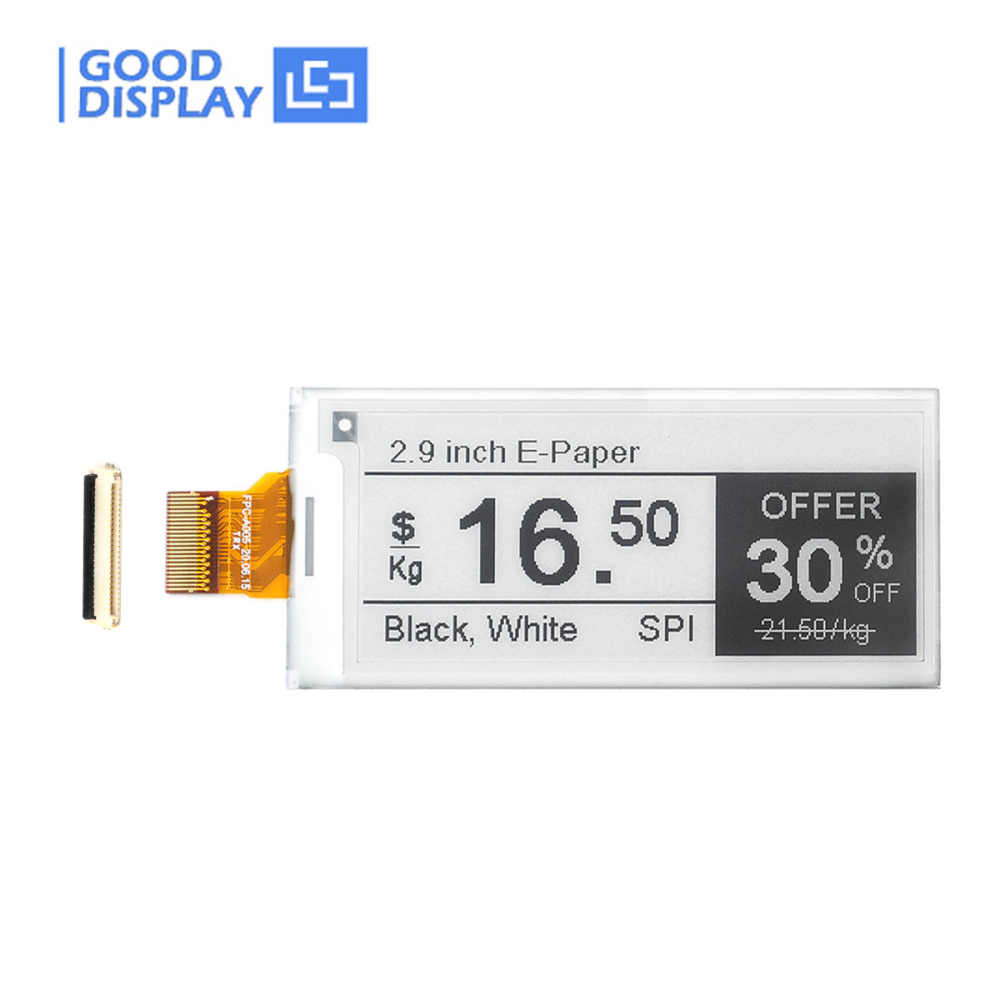

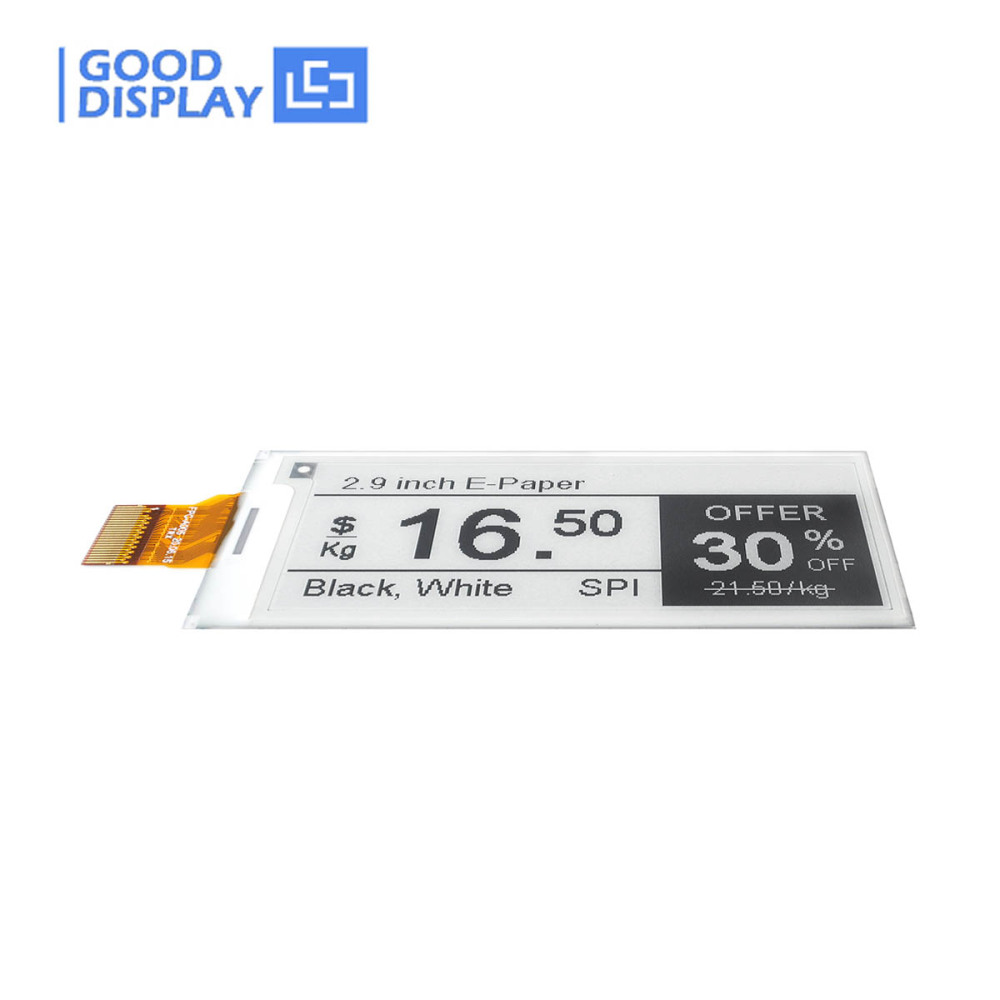

This is a 2.9 inch e-ink screen Raspberry pi display with 296x128 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEY029T94 is perfect for low power devices powered by solar or batteries.

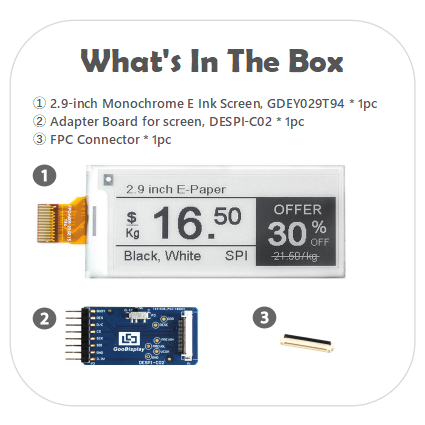

We provide the E-Ink Adapter Board for you to connect the E-paper Display.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array
* Note: We can customize the OTP code to make the refresh time of this 2.9 inch e-paper display GDEY029T94 reach to 1.5s, if you need, please contact us.
● Support 4 Grayscale
● Customizable 1.5s Fast Refresh
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● Bistable. (Will continue to display with no power source)
● Support partial refresh. The partial refresh rate is 0.3s/frame
● Compared with other 2.9 inch electornic paper displays, the power consumption is lower
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32
|
PART NUMBER |
GDEY029T94 |
||
|
DISPLAY FORMAT |
296x128 |
COLOR | Black, White |
| IC | SSD1680 | MAX GRAYSCALE | 4 |
|

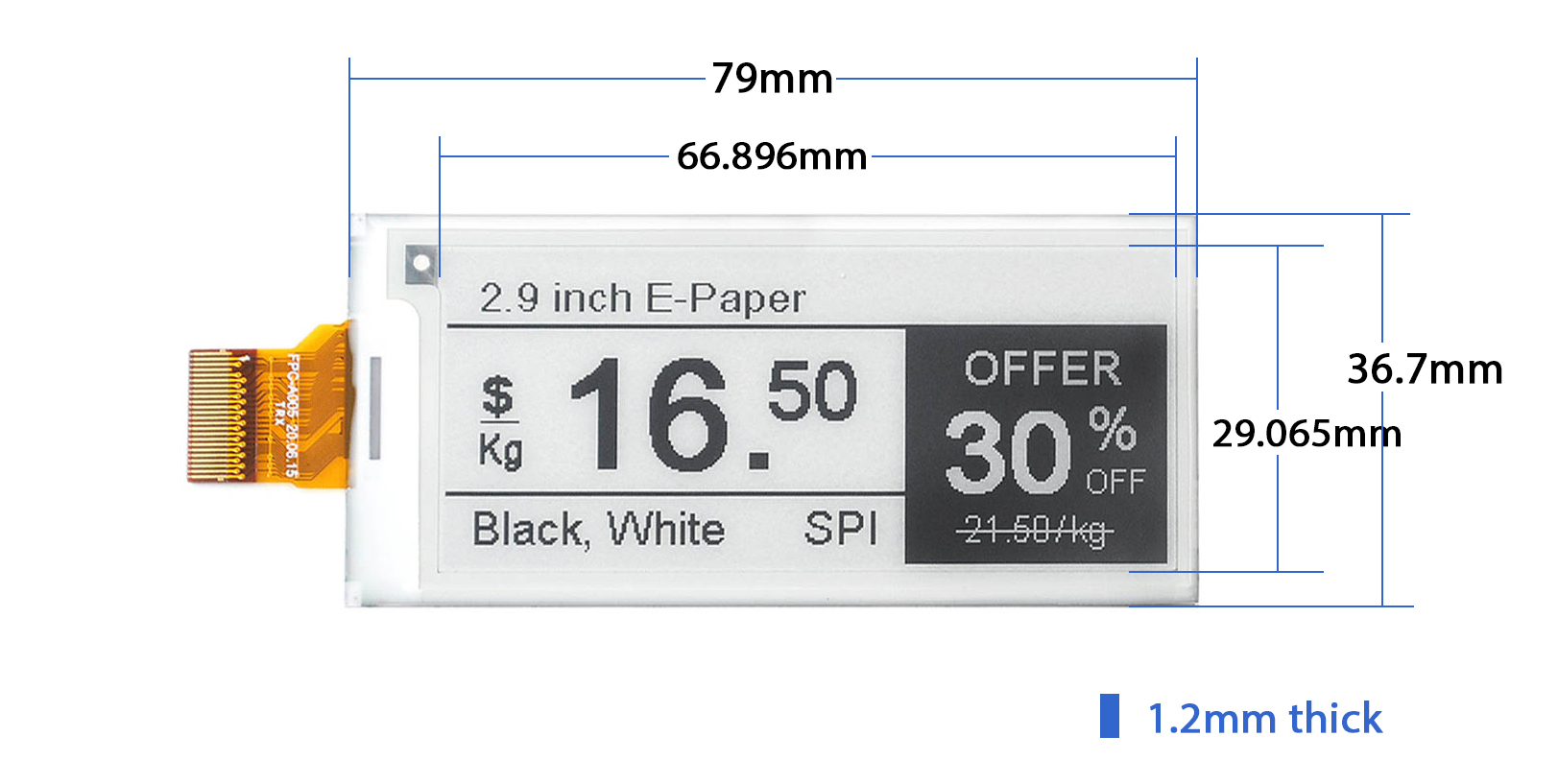

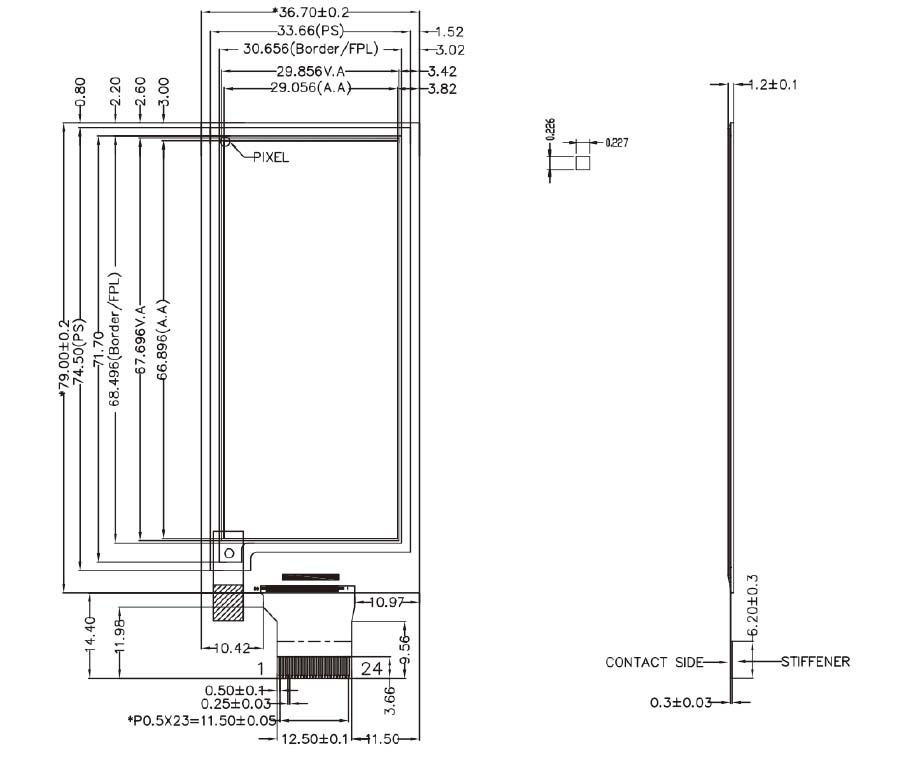

OUTLIN DIMENSION(mm) |
79x36.7x1.2 |
INTERFACE | SPI |
|
ACTIVE AREA(mm) |
66.896x29.056 |
POWER CONSUMPTION OF THE REFRESH(mW) | 9 |
| PIXEL PITCH(mm) | 0.227x0.226 | STANDBY POWER CONSUMPTION (mW) | 0.003 |
|
SIZE(mm) |
2.9 inch |
FULL REFRESH(s) | 3 |
|
OPERATING TEMP. |
0℃~50℃ |
PARTIAL REFRESH TIME(s) | 0.3 |
| STORAGE TEMP. | -25℃~70℃ | ||
|
Part Number |
Color |
IC |
Features |
Refresh Time |
| GDEY029T94 | B/W | SSD1680 | Partial refresh, 4 Grayscale | 3s |
| GDEY029Z94 | B/W/R | SSD1680A | Red | 12s |
| GDEH029Z13 | B/W/R | UC8151D | Red | 15s |
| GDEW029Z13 | B/W/R | UC8151D | Red | 12s |
● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)
● DEArduino-L(C02) (Arduino Platform)

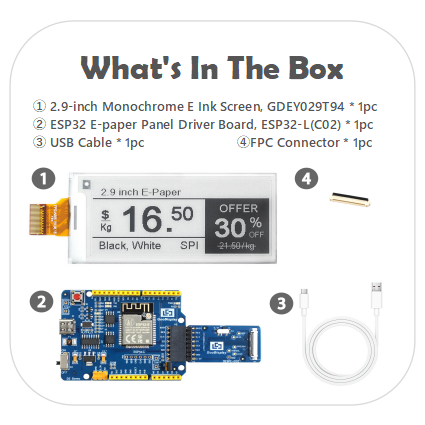

● ESP32-L(C02) (WiFi / Bluetooth)
● DESPI-C03 (Rasberry Pi Epaper HAT)
