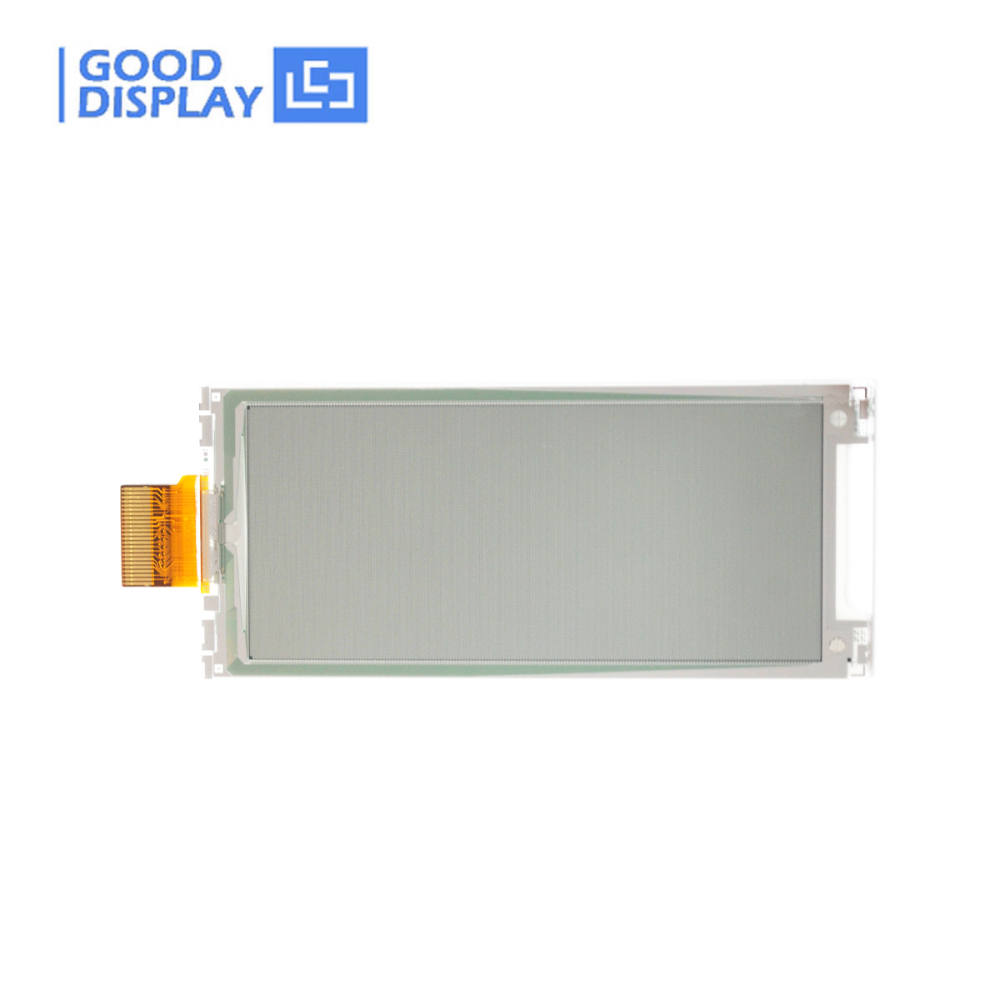

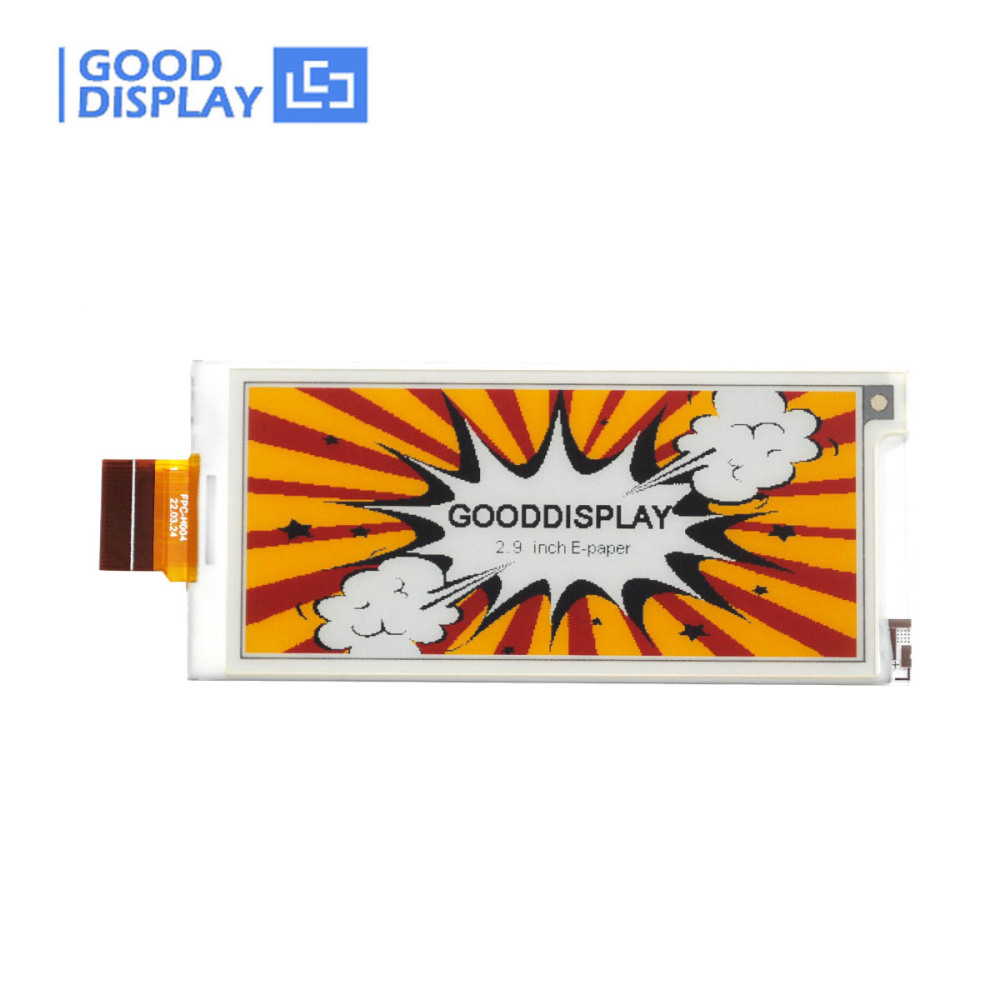

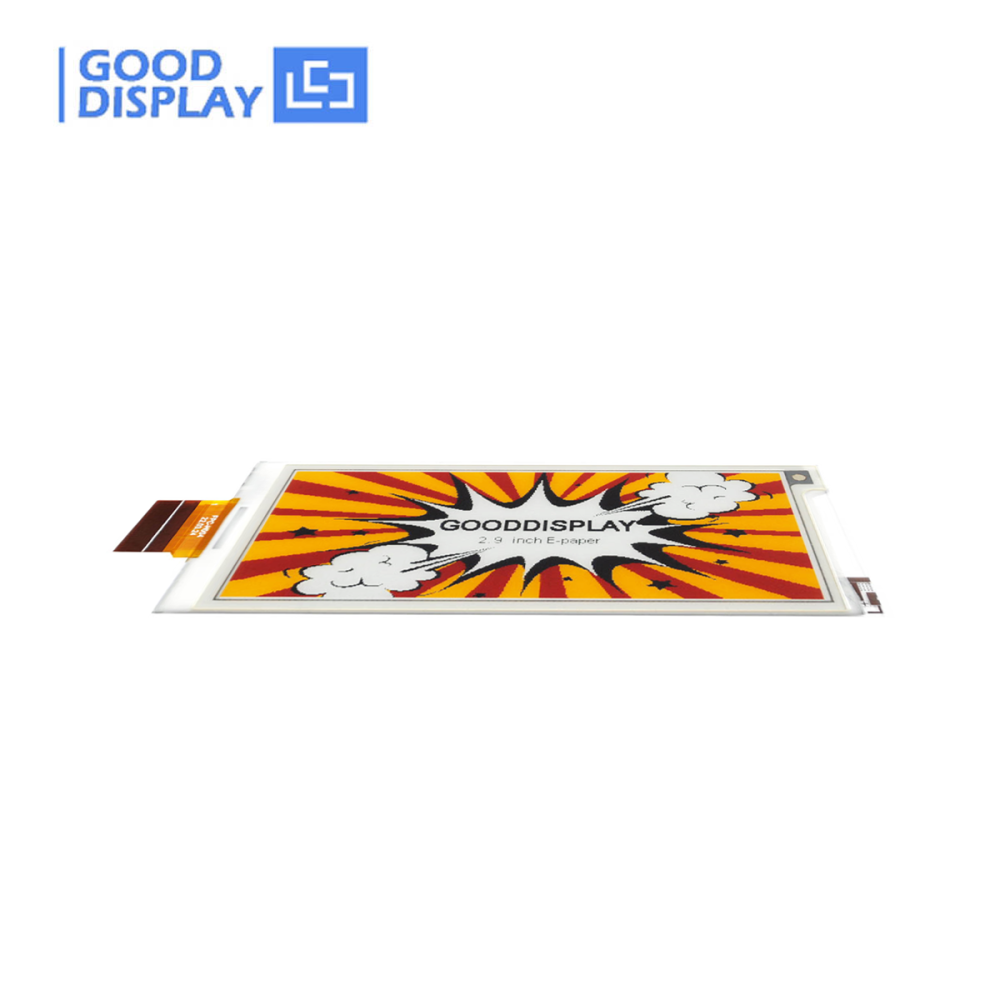

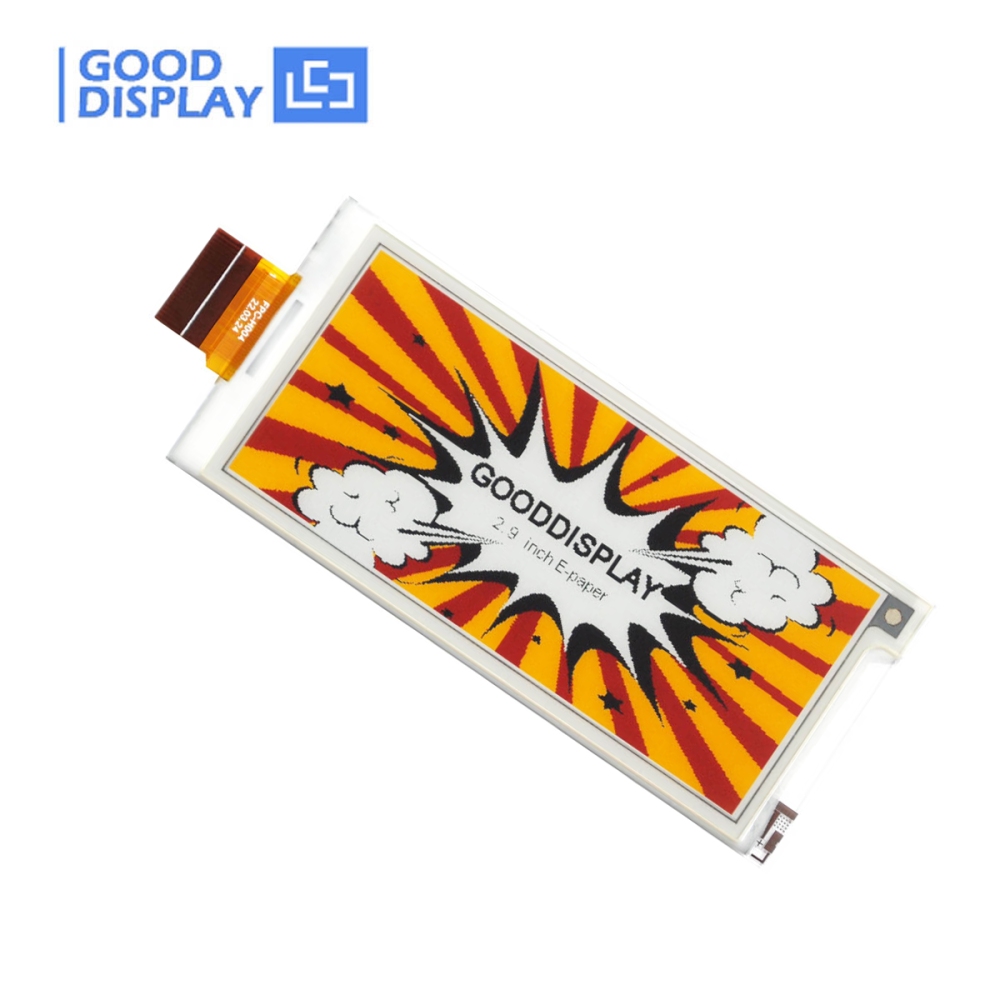

2.9 inch electronic paper screen high resolution 384x168 4-color e-ink display, GDEY029F51H

4-Color 2.9 inch e-paper display with 384x168 resolution, 24 pins FPC connection, SPI interface,  supports black, white, yellow and red. Its IC is JD79667.
Price:
USD
$8.90
Quantity:
-
+
(50 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Library
  • Selection Guide (Above 4.2 inch)
  • Selection Guide
  • Reviews

☆ INTRODUCTION



This is a 2.9 inch color epaper display with high resolution 384x168 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEY029F51H is perfect for low power devices powered by solar or batteries.



We provide the E-Ink Adapter Board for you to connect the E-paper Display.

We could provide front light, touch screen and other accessories for you.


Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.

You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array
* This e-ink display module DOES NOT support partial updates

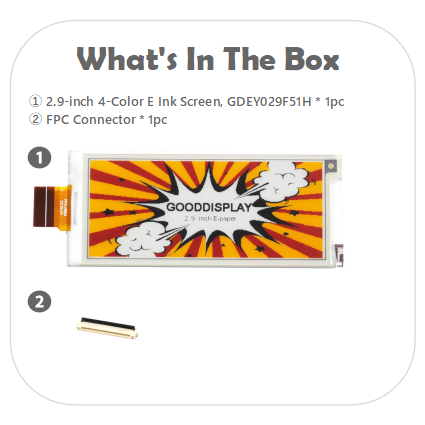

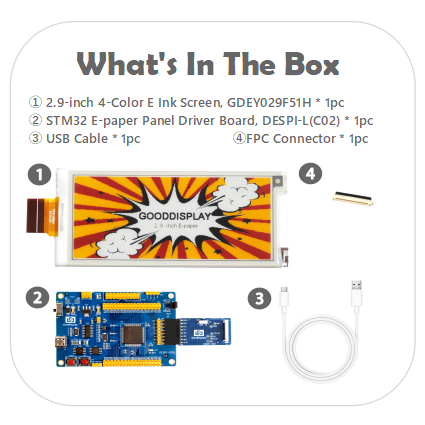

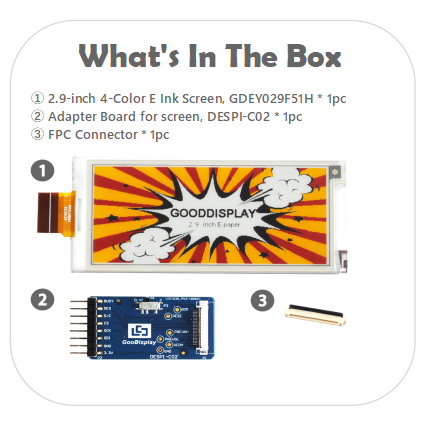

☆ THE ABOVE PRICE INCLUDE


1) 2.9 inch electronic paper screen JD79661 384x168 color e-ink display GDEY029F51H * 1pc
2) FPC Connector * 1pc


☆ MAIN PARAMETERS



PART NUMBER

GDEY029F51H



SIZE

2.9 inch

 STORAGE TEMP. -25℃~60℃

TYPE

Dot Matrix

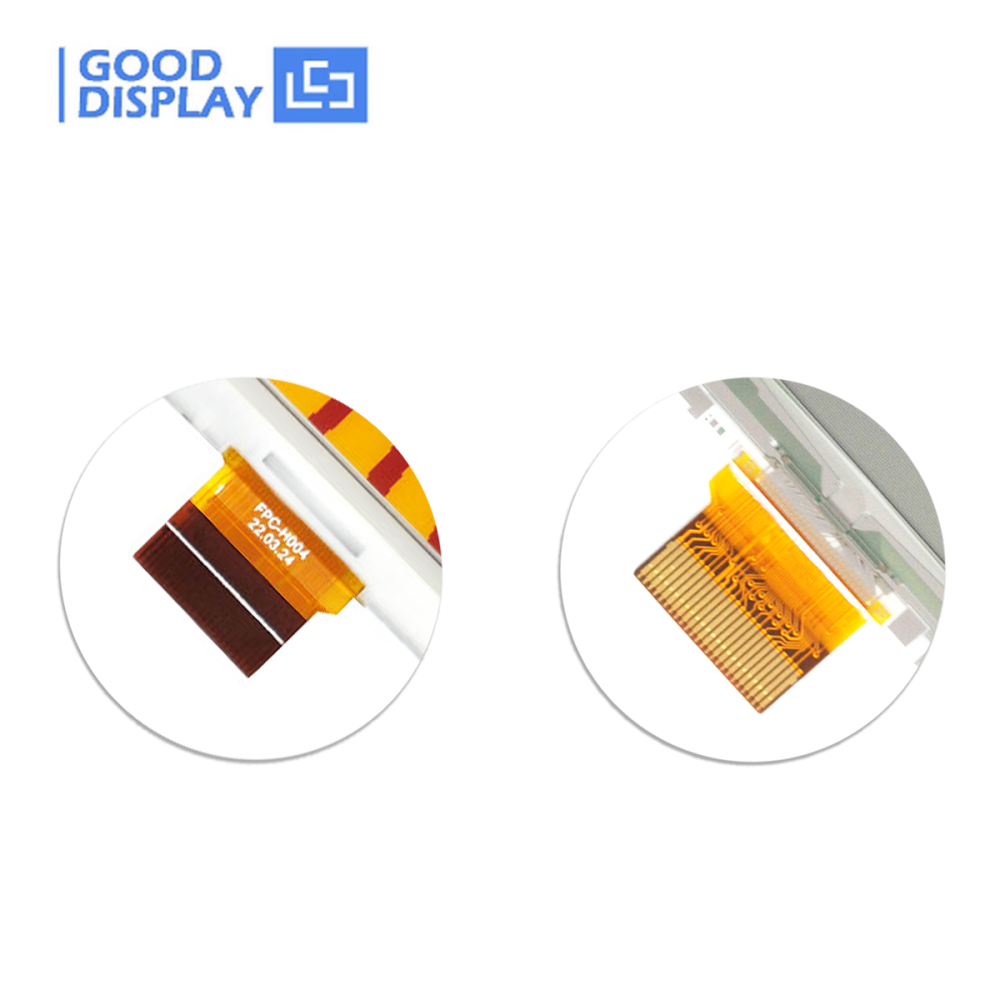

 CONNECTOR 24 Pin FPC

IC

JD79667

 MAX GRAYSCALE 2

RESOLUTION

384x168

 COLOR Black, White, Yellow, Red

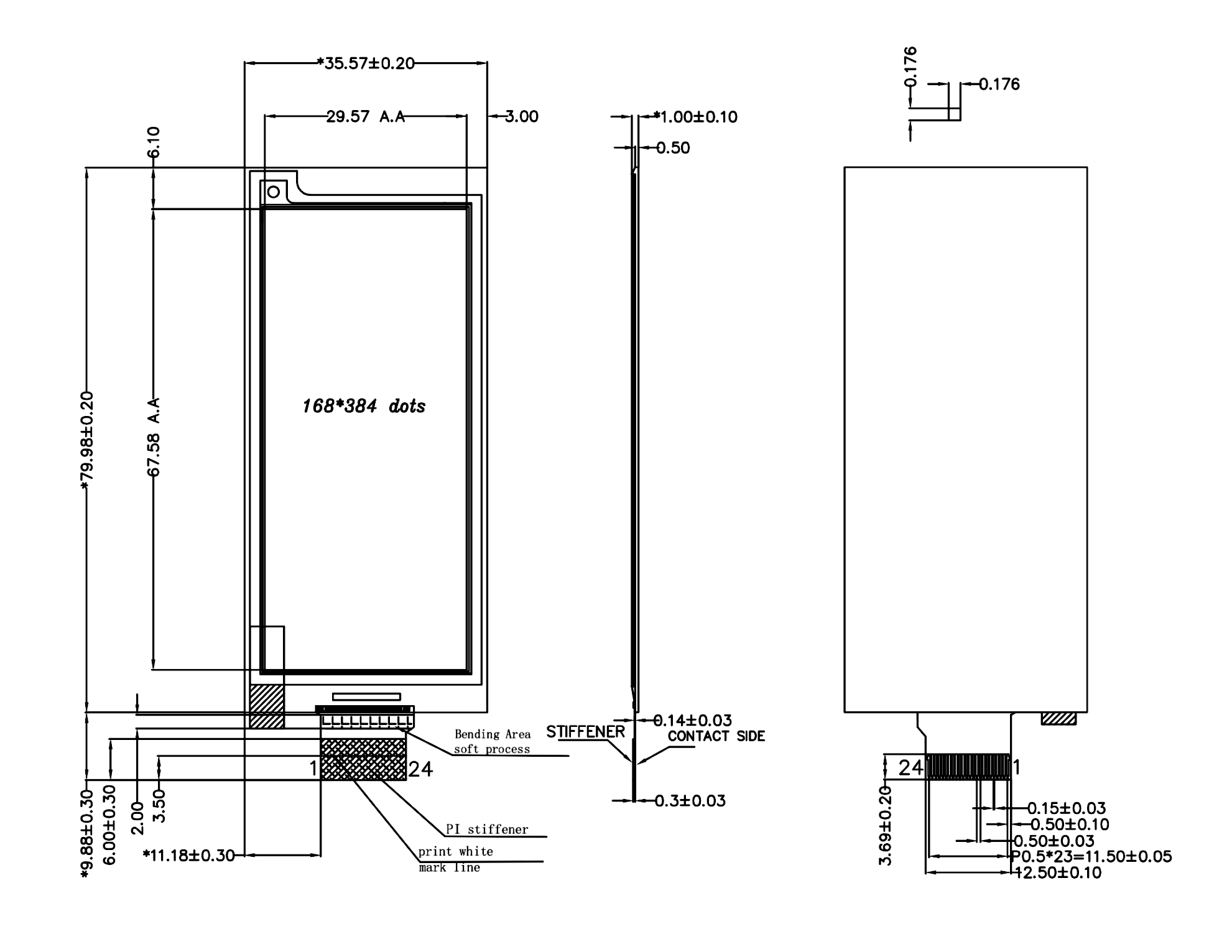

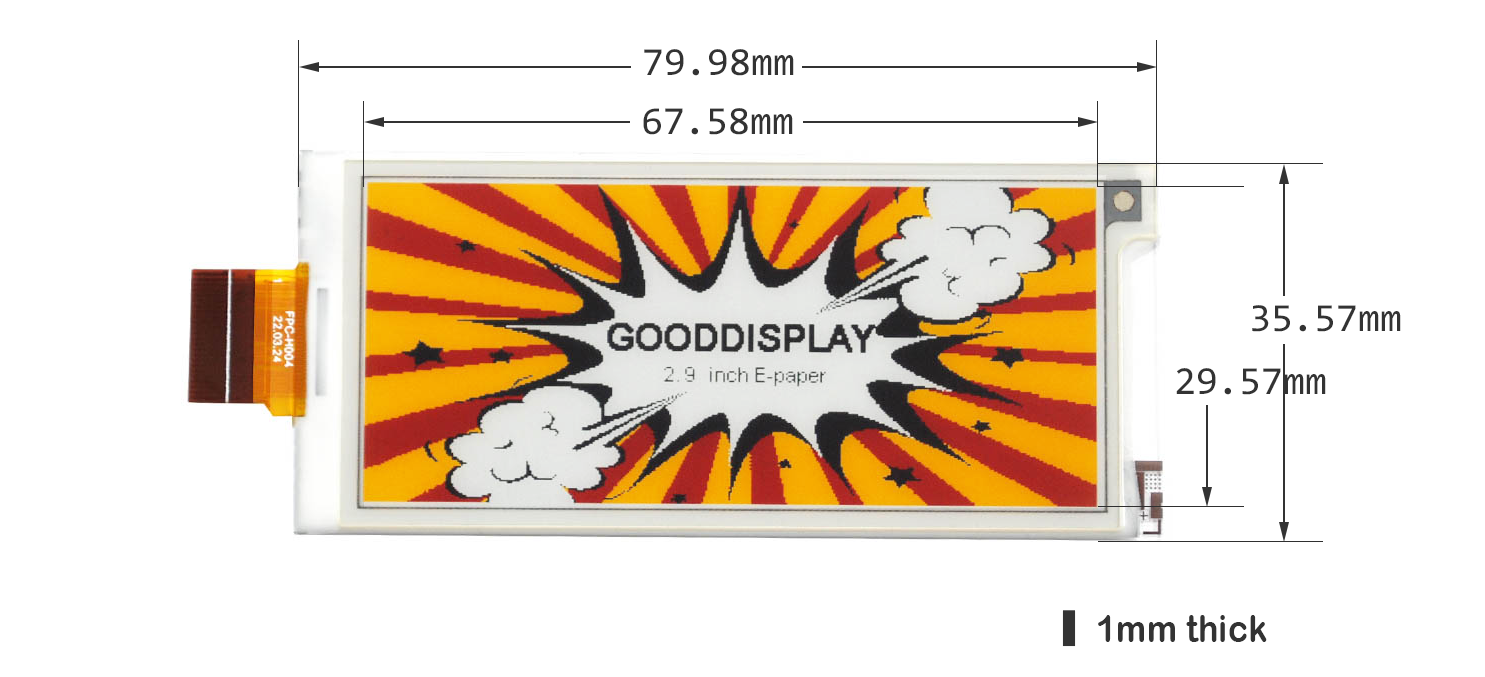

OUTLINE SIZE(mm)

79x35.57x1.2

 INTERFACE SPI

ACTIVE SIZE(mm)

67.58x29.57

 FULL REFRESH(s) 25

PIXEL PITCH(mm)

0.176x0.176

 POWER CONSUMPTION OF THE REFRESH(mW) 9.9

OPERATING TEMP.

0℃~40℃

 STANDBY POWER CONSUMPTION (mW) 0.003



☆ FEATURE



●  Versatile. Use in portrait or landscape format.

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor

●  Black, white and red. Compared with monochrome electronic paper display, it is more beautiful

●  Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32


☆ DETAILS





☆ MATCHED DEVELOPMENT KIT



● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)

● DEArduino-L(C02) (Arduino Platform)

● ESP8266-L(C02) (WiFi)

● ESP32-L(C02) (WiFi / Bluetooth)

● DESPI-C03 (Rasberry Pi Epaper HAT)


☆ WE ALSO SUGGEST...



2.9 inch e-paper screen 296x128 customizable 1.5s fast refresh Raspberry pi SPI display, GDEY029T94

2.9 inch Black and white partial refresh e-paper display module GDEM029E97

2.9 inch e ink flexible ultra-thin 4 grayscale e-paper display GDEW029I6FD

2.9 inch electronic paper screen SSD1680A 296x128 color e-ink display, GDEY029Z94

☆ SPECIFICATION DOWNLOAD


1. Product Specification & Sample Code
1)  GDEY029Z94 Specification
2)  GDEY029F51H STM32 Sample Code


2. Image to E-paper Display Software
1) Slave Computer Software-Image to EPD V3.6
2) Image to EPD Instruction Manual
