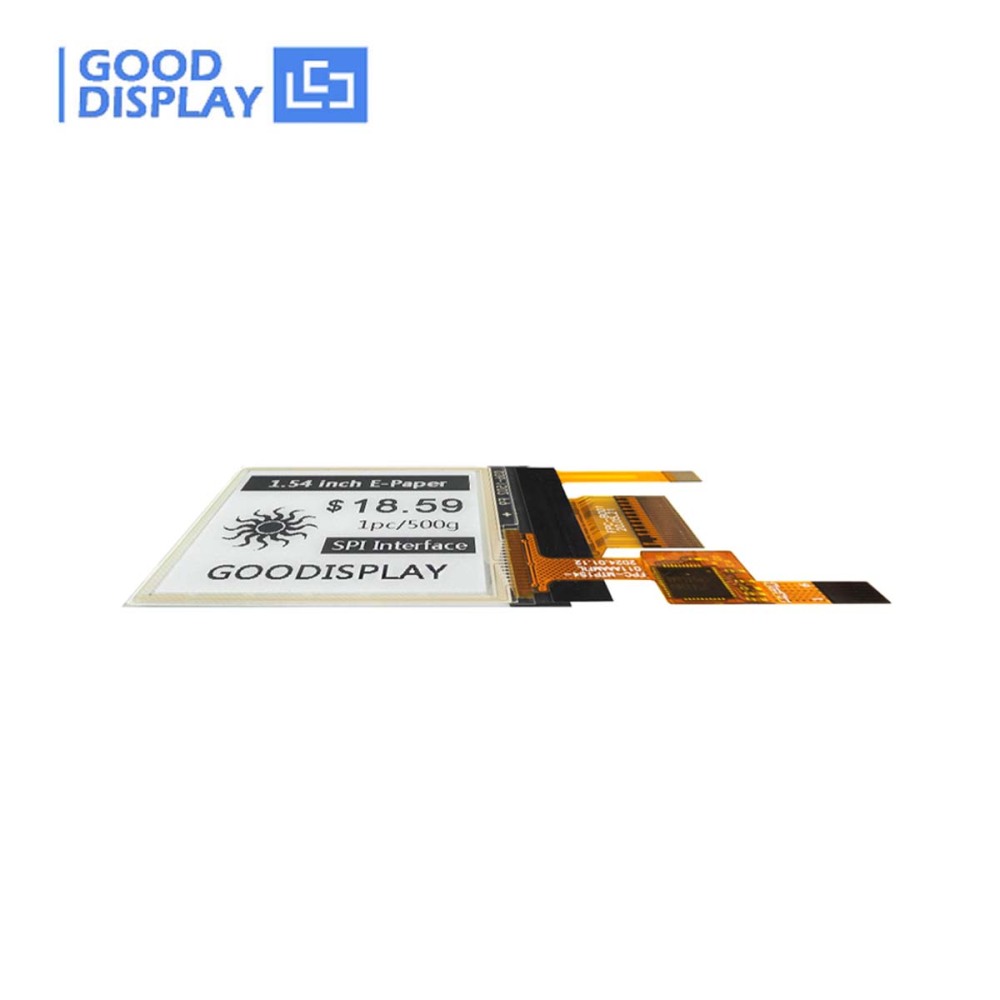

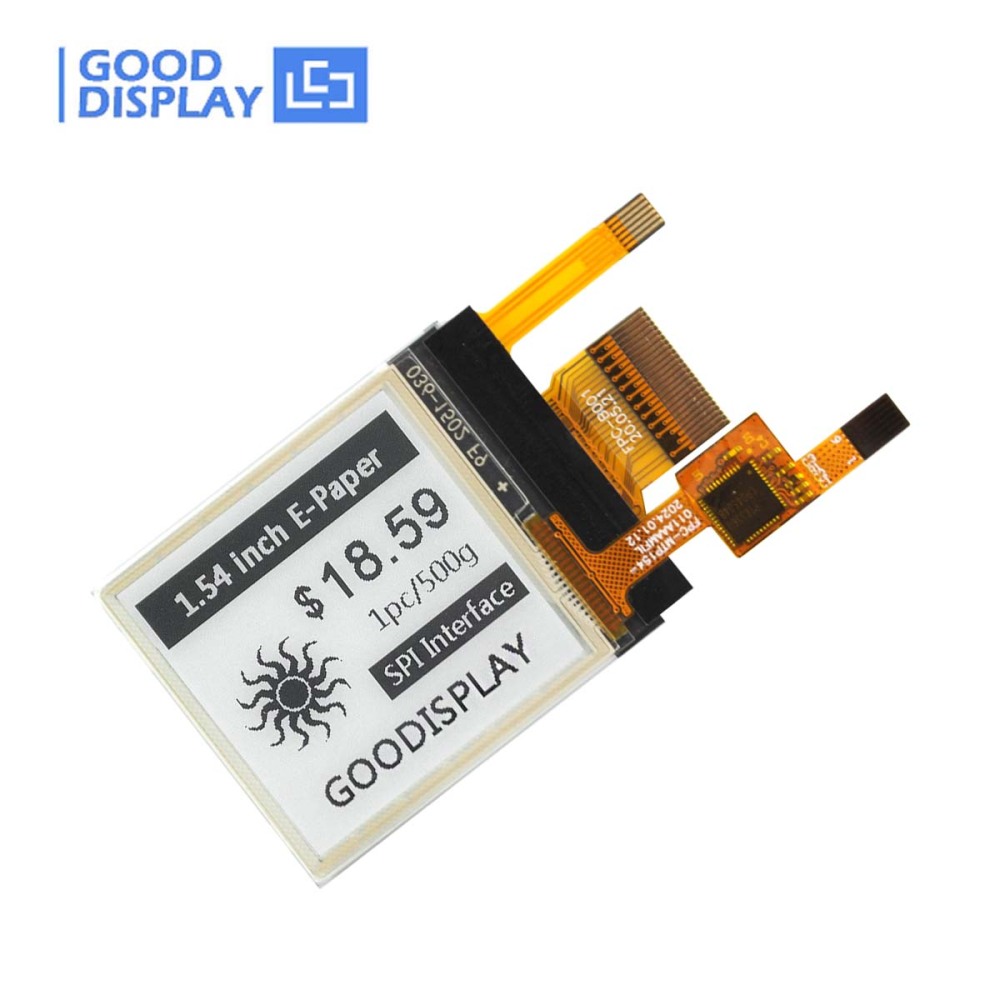

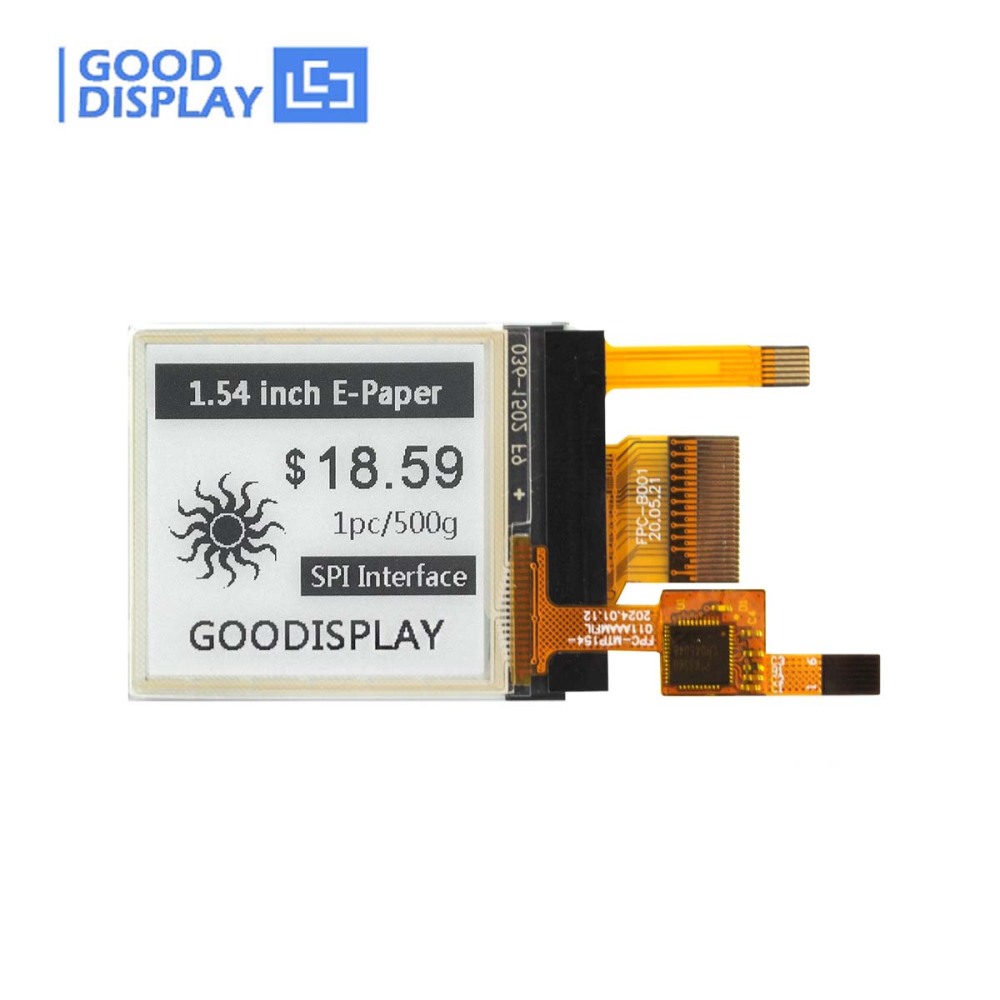

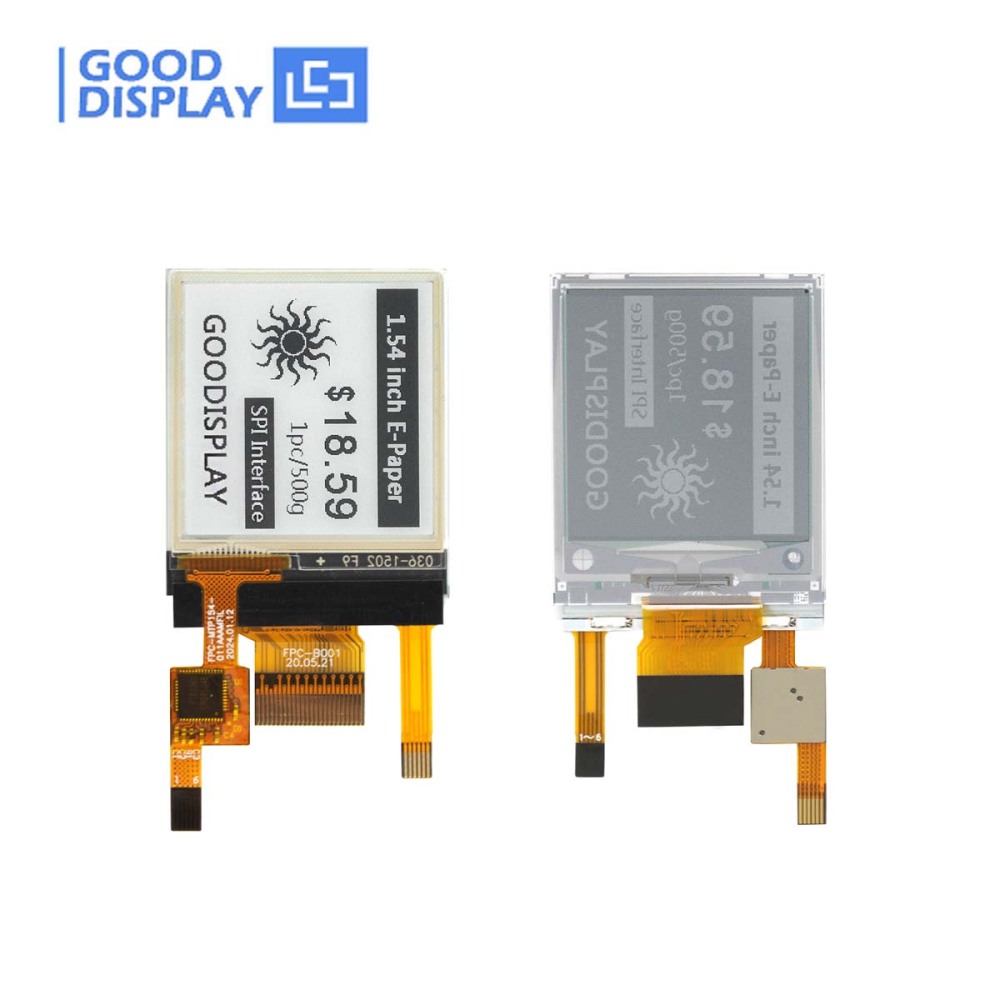

This is a 1.54 inch e-ink display with 200x200 resolution, SPI interface, and the display is capable to display images with black and white content. It supports 2s full refresh，1.5s fast refresh and 0.26s partial refresh. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This electronic paper display GDEY0154D67-FT01 is perfect for low power devices powered by solar or batteries.

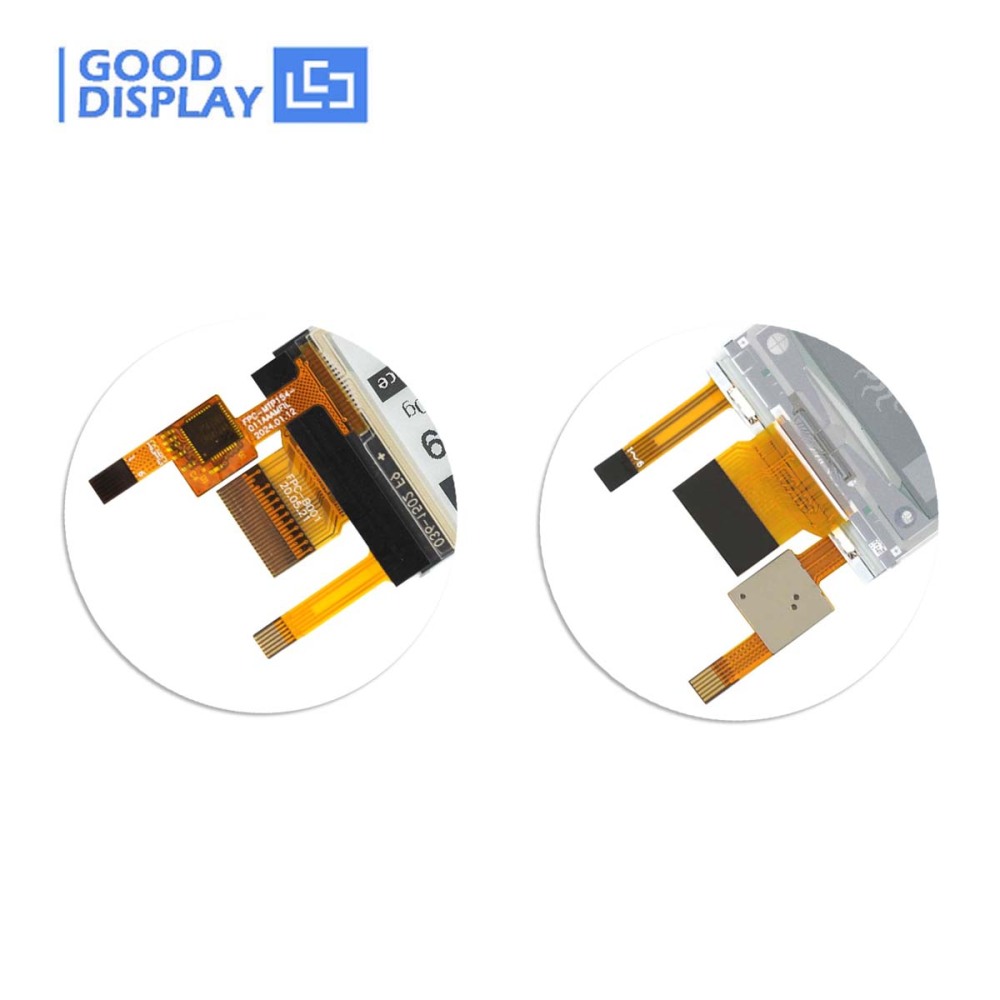

We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
* Note: We can customize the OTP code to make the refresh time of this 1.54 inch e-paper display GDEY0154D67-FT01 reach to 1.5s, if you need, please contact us.

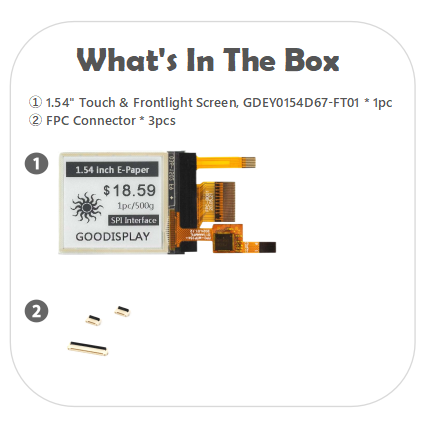

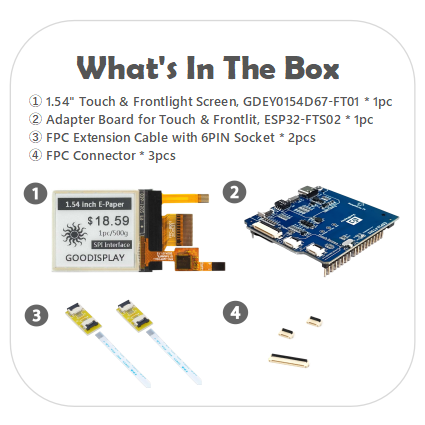

| Package A |  |
+ |  |
||||||
| a. 1.54 inch electronic paper display 200x200 partial refresh digital price tags screen, GDEY0154D67 * 1pc | b. FPC Connector * 1pc | ||||||||
|
|
|||||||||
| Package B | |
+ | |
+ |  |
||||
| a. 1.54 inch electronic paper display 200x200 partial refresh digital price tags screen, GDEY0154D67 * 1pc | b. FPC Connector * 1pc | c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02 *1pc | |||||||
|
|
|||||||||

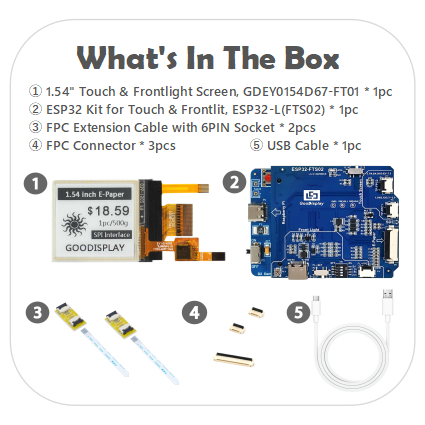

| Package C | |
+ | |
+ |  |
+ |  |
||
| a. 1.54 inch electronic paper display 200x200 partial refresh digital price tags screen, GDEY0154D67 * 2pcs | b. FPC Connector * 2pcs | c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02) *1pc | d. USB Cable *1pc | ||||||
|
|
|||||||||
| Package D | |
+ | |
+ |  |
+ | |
| a. 1.54 inch electronic paper display 200x200 partial refresh digital price tags screen, GDEY0154D67 * 2pcs | b. FPC Connector * 2pcs | c.Arduino E-paper Driving Board Type-C Interface EPD development kit, DEArduino-L(C02) *1pc | d. USB Cable *1pc | ||||
|
|
|||||||
| Package E | |
+ | |
+ |  |
+ | |
| a. 1.54 inch electronic paper display 200x200 partial refresh digital price tags screen, GDEY0154D67 * 2pcs | b. FPC Connector * 2pcs | c. ESP8266 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP8266-L(C02) *1pc | d. USB Cable *1pc | ||||
|
|
|||||||
| Package F | |
+ | |
+ |  |
+ | |
| a. 1.54 inch electronic paper display 200x200 partial refresh digital price tags screen, GDEY0154D67 * 2pcs | b. FPC Connector * 2pcs | c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02) *1pc | d. USB Cable *1pc | ||||
| PART NUMBER | GDEY0154D67-FT01 | ||
| TYPE | Dot Matrix | CONNECTOR | 24 Pin FPC |
| SIZE | 1.54 inch | MAX GRAYSCALE | 4 |
| IC | SSD1681 | COLOR | Black,White |
| RESOLUTION | 200x200 | INTERFACE | SPI |

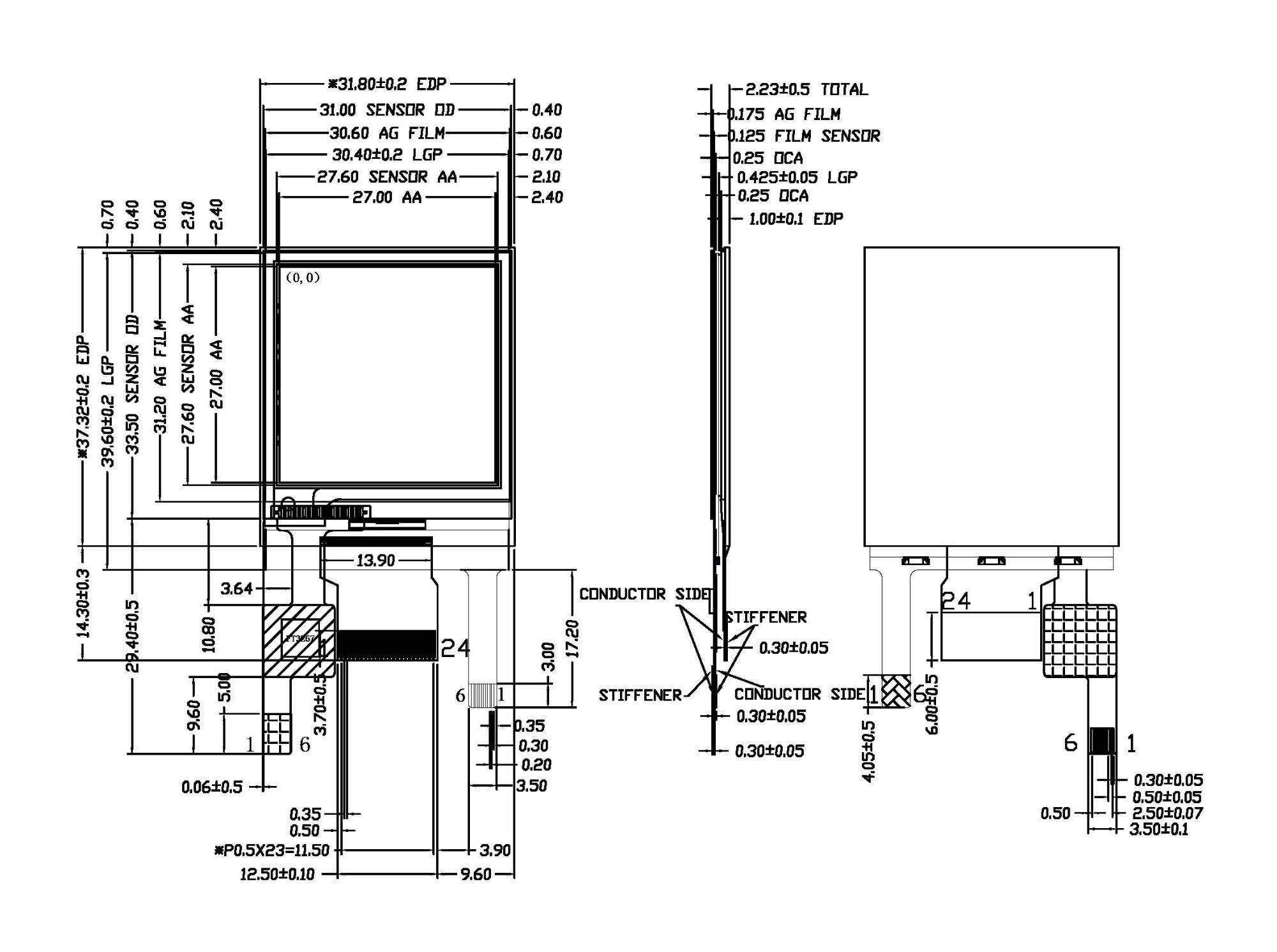

| OUTLINE SIZE(mm) | 31.8x37.32x1.00 | FULL REFRESH TIME(s) | 2 |
| ACTIVE SIZE(mm) | 27x27 | FAST REFRESH TIME(s) | 1.5 |
| PIXEL PITCH(mm) | 0.14x0.14 | PARTIAL REFRESH TIME(s) | 0.26 |
| OPERATING TEMP. | 0℃~50℃ | POWER CONSUMPTION OF THE REFRESH(mW) | 4.5 |
| STORAGE TEMP. | -25℃~70℃ | STANDBY POWER CONSUMPTION (mW) | 0.003 |
● Customizable 1.5s Fast Refresh
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● It supports partial refresh, the refresh rate is 0.26s/frame.
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor.
● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32

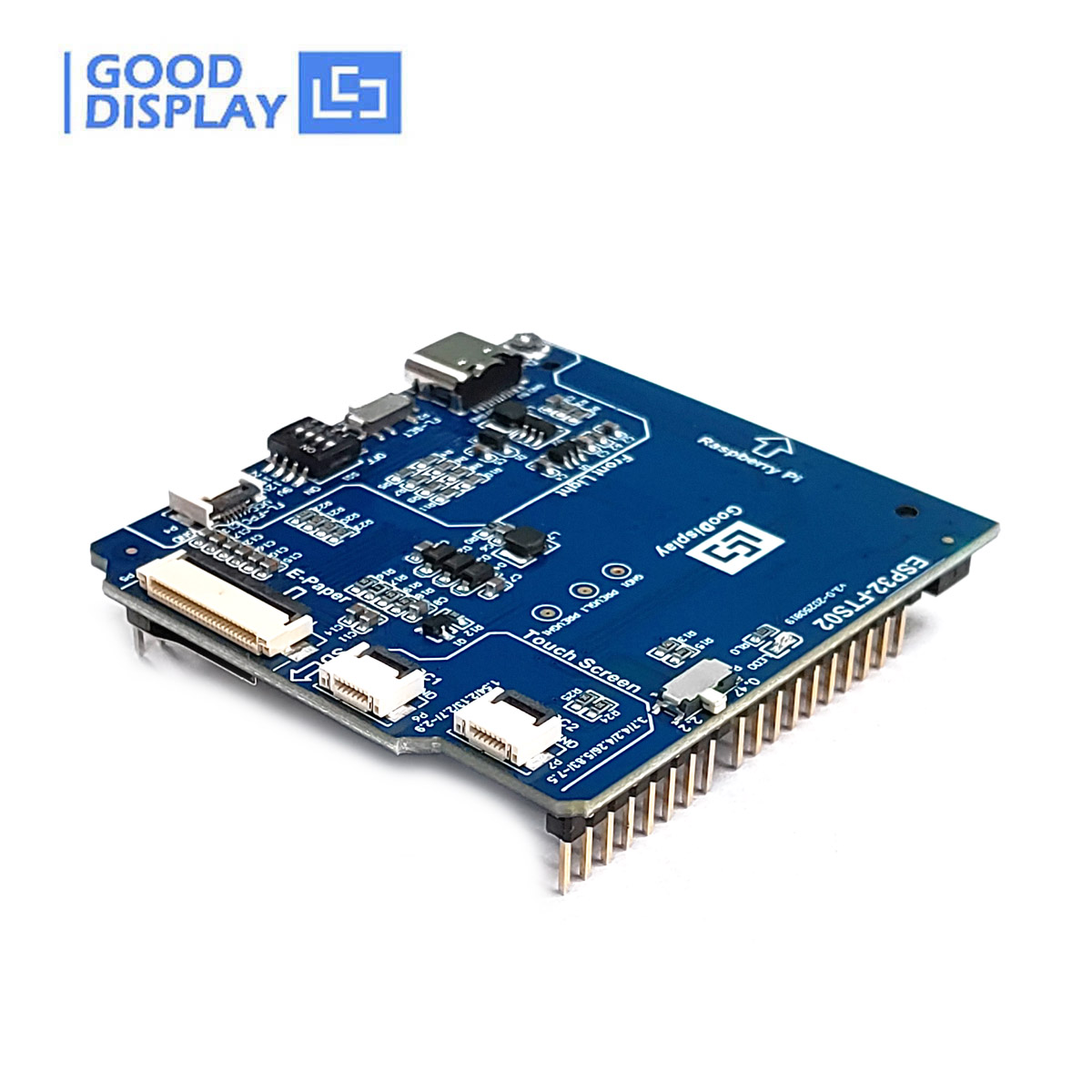

● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)
● DEArduino-L(C02) (Arduino Platform)
● ESP32-L(C02) (WiFi / Bluetooth)
● DESPI-PICO (Rasberry Pi Epaper HAT)
● GDEY0154D67 Specification
● IC Driver SSD1681
● GDEY0154D67 Picture Production and Bitmap Conversion
● GDEY0154D67 STM32 Sample Code
● GDEY0154D67 Arduino Sample Code
● GDEY0154D67 Raspberry Pi Pico Sample Code
● GDEY0154D67 ESP32 Sample Code
