STM32 E-paper 2.7 inch EPD Display 264x176 SPI E-ink Screen Module, 2pcs GDEY027T91 with STM32 Demo Kit

2pcs GDEY027T91 & DESPI-L(C02)
This is a set of epaper STM32 driver board DESPI-L(C02) with 2.7 inch e-paper with 264x176 resolution, SPI interface, and the display is capable to display images with black and white content.
Have a question?
Price:
USD
$8.37
  • product:
    EPD with STM32 Demo Kit
    EPD with Arduino Demo Kit
    EPD with ESP8266 Demo Kit
    EPD with ESP32 Demo Kit
    EPD with adapter board
    EPD
Quantity:
-
+
(250 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews


2pcs 2.7 Inch E-Ink Display with STM32 Demo Kit




This is a set of epaper STM32 driver board DESPI-L(C02) with 2.7 inch small e-ink display with 264x176 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEY027T91 is perfect for low power devices powered by solar or batteries.


This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions. And it is added the functions of USB serial port LED indicator light, Reset button, user-defined button, font chip, Flash chip and etc. It also supports being updated via computer software directly.








Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Forever Display, Zero Power Consumption: The GDEY027T91 features bistable display technology, ensuring images are preserved indefinitely even without power. Ideal for solar-powered devices or those requiring long battery life.
 ● Crystal Clear, Immersive Viewing: With a remarkable 264x176 pixel resolution and a wide viewing angle exceeding 170 degrees, every detail on the GDEY027T91 is rendered with vivid realism, whether in landscape or portrait orientation.
 ● Efficiency in Action, Real-Time Updates: Supporting multiple refresh modes—from rapid (1.5s) to selective (0.42s)—this display ensures information updates swiftly and responsively, setting a new standard for efficiency.
 ● Green Technology, Eye-Care Comfort: Operating without constant refresh needs and power support, the GDEY027T91 is environmentally friendly and energy-efficient. It emits no blue light or radiation, prioritizing both ecological responsibility and eye protection.
 ● Customizable Options, Smart Applications: Offering optional touch capabilities and front-lighting, it’s tailored to meet diverse needs perfectly, whether in smart homes, industrial settings, or beyond. Versatility at its finest.
 ● Reliable Performance, Leading Choice: Equipped with the SSD1680 driver chip and SPI interface, the GDEY027T91 delivers consistent and dependable performance, making it the forefront choice for advanced display solutions.






Technical Details

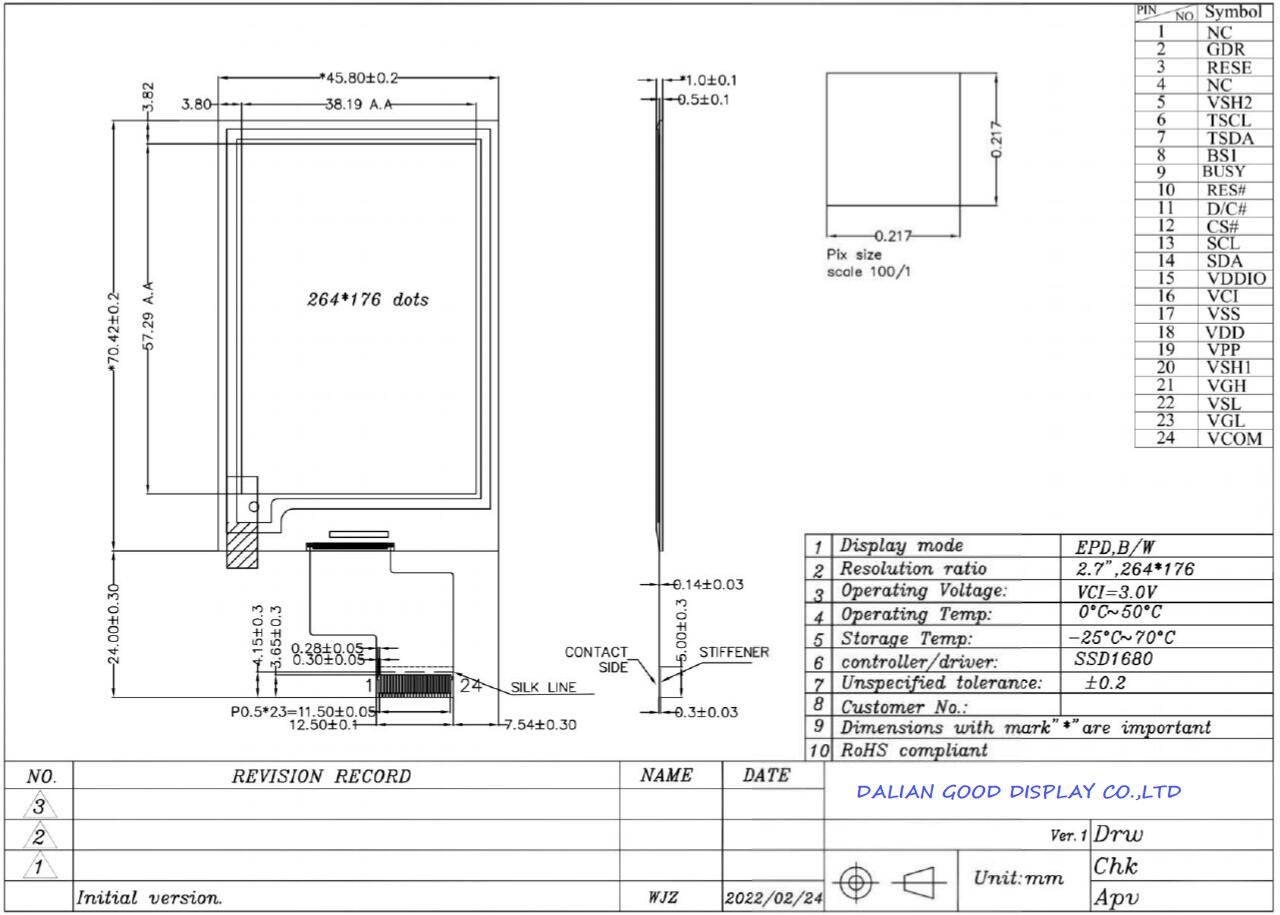

    Please refer to the product drawings for detailed dimensions










Product Specifications


    Please refer to the product specifications for more details

PART NUMBER GDEY027T91 CONNECTOR 24 Pin FPC
TYPE Dot Matrix MAX GRAYSCALE 4
SIZE 2.7 inch COLOR Black,White
IC SSD1680 INTERFACE SPI
RESOLUTION 264x176 FULL REFRESH(s) 3
OUTLINE SIZE(mm) 70.42x45.8x1.0 PARTIAL REFRESH TIME(s) 0.42
ACTIVE SIZE(mm) 57.29x38.19 FAST REFRESH TIME(s) 1.5
PIXEL PITCH(mm) 0.217x0.217 POWER CONSUMPTION OF THE REFRESH(mW) 9
OPERATING TEMP. 0℃~50℃ STANDBY POWER CONSUMPTION (mW) 0.003
STORAGE TEMP. -25℃~70℃

PART NUMBER DESPI-L(C02) OUTSIDE DIMENSION 90x60mm (DESPI-M02L)
41x22mm (DESPI-C02)
PLATFORM STM32 FUNCTION Drive E-paper Display
POWER INTERFACE Type-C OPERATING TEMP. -20~70℃
GRAY SCALE LEVEL Max 16 Grayscale SAMPLE CODE Available (please contact sales)
FEATURE Support fully refresh, fast refresh and partial refresh RESERVED FUNCTION Type-C, LED indicator, User-defined button, Reset button, Font chip, Flash chip, Current detection
MAIN FUNCTION Learn to drive e-paper display;
Test and evaluate e-paper display;
Support secondary development







  Matching Driver Board
To facilitate the testing and comparison of e-paper, we recommend the following driver boards for you.

a.DESPI-C02 (E-ink Display adapter Board) b.DESPI-L(C02) (STM32 Demo Kit) c.DEArduino-L(C02) (Arduino Platform Demo Kit)

d.ESP8266-L(C02) (ESP8266 Demo Kit) e.ESP32-L(C02) (ESP32 Demo Kit)







Related Information Download

Click on the subheadings below to download

  ● GDEY027T91 Specification ● GDEY027T91 Arduino Sample Code
  ● SSD1680 Driver IC Datasheet ● GDEY027T91 ESP8266 Sample Code
  ● Picture Production and Bitmap Convert for GDEY027T91 ● The latest Catalog of ePaper display
  ● GDEY027T91 STM32 Sample Code ● Why can't I download the files?
  ● GDEY027T91 ESP32 Sample Code
