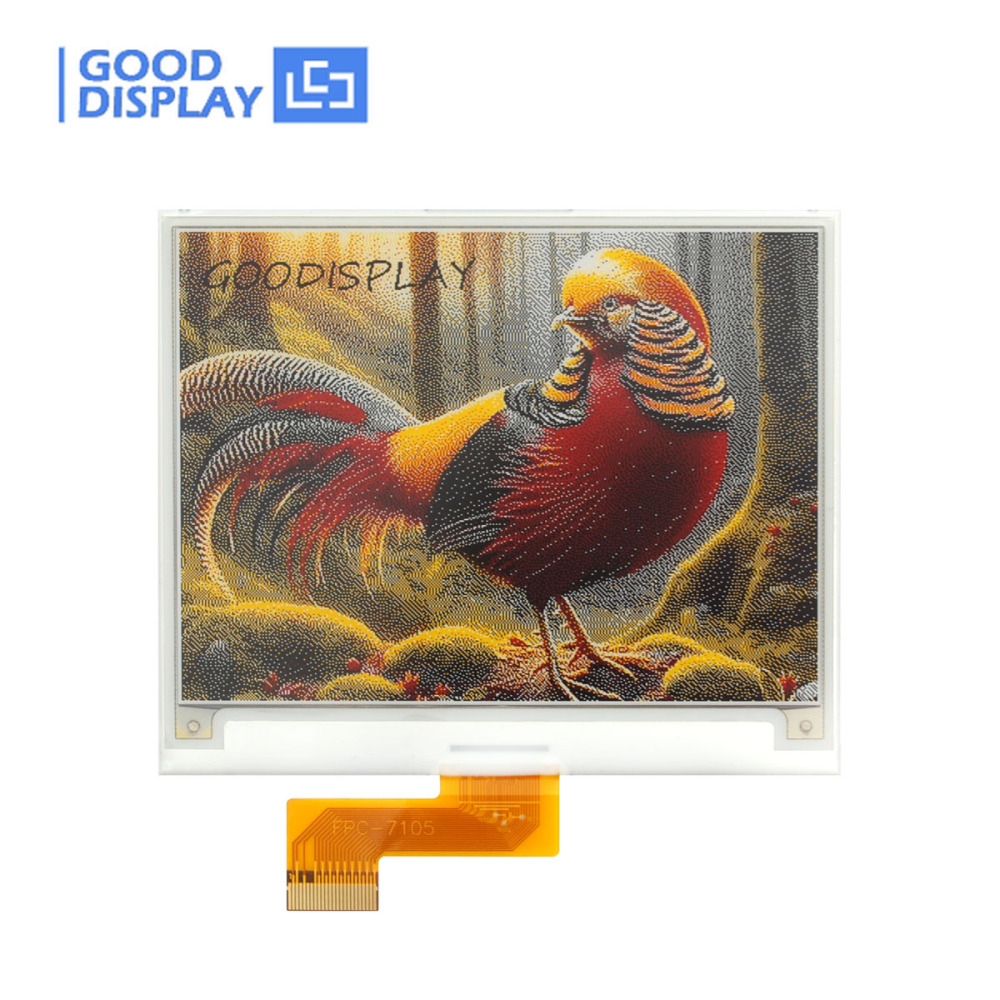

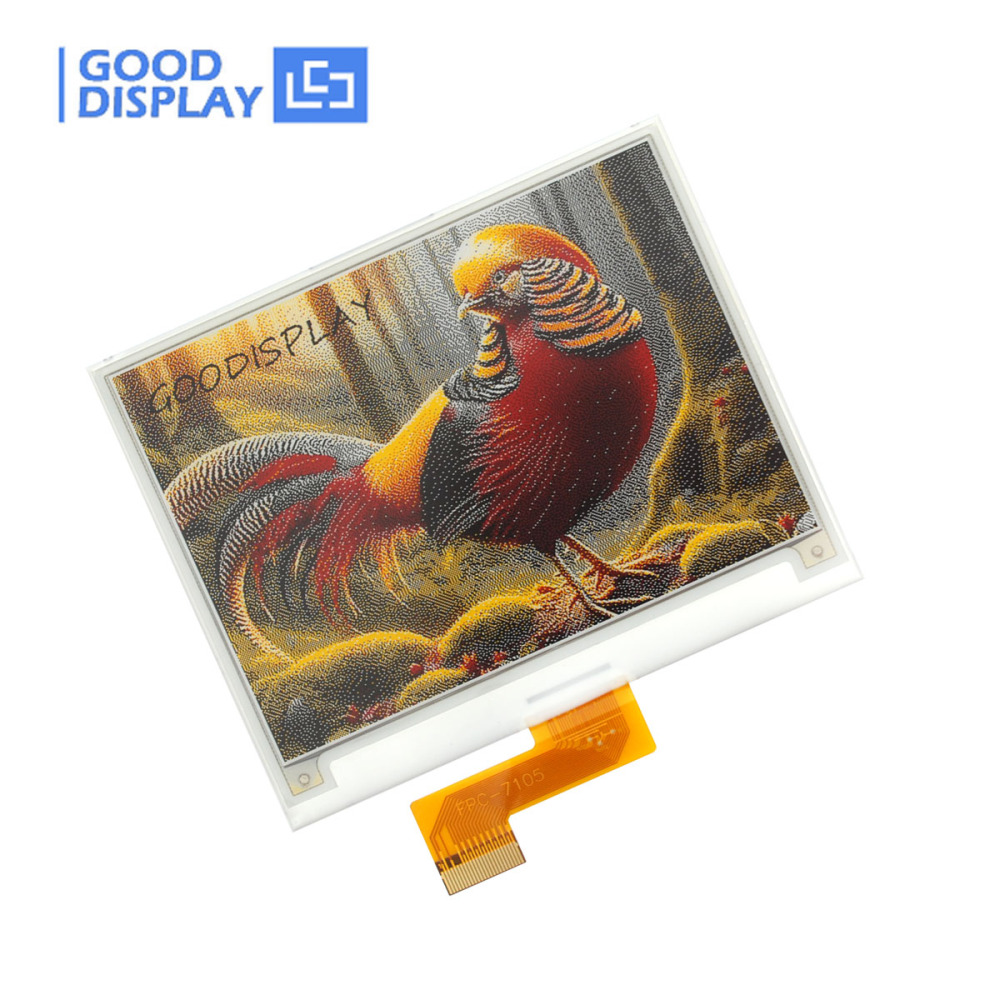

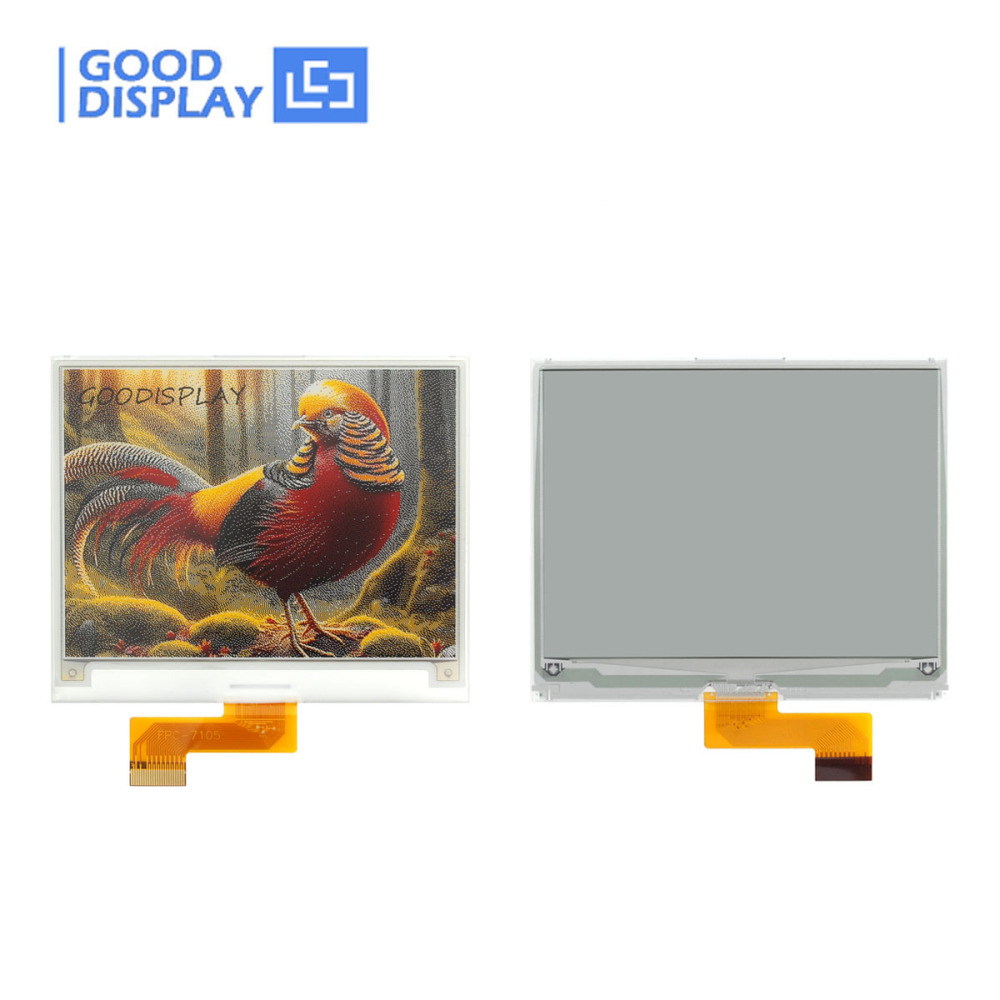

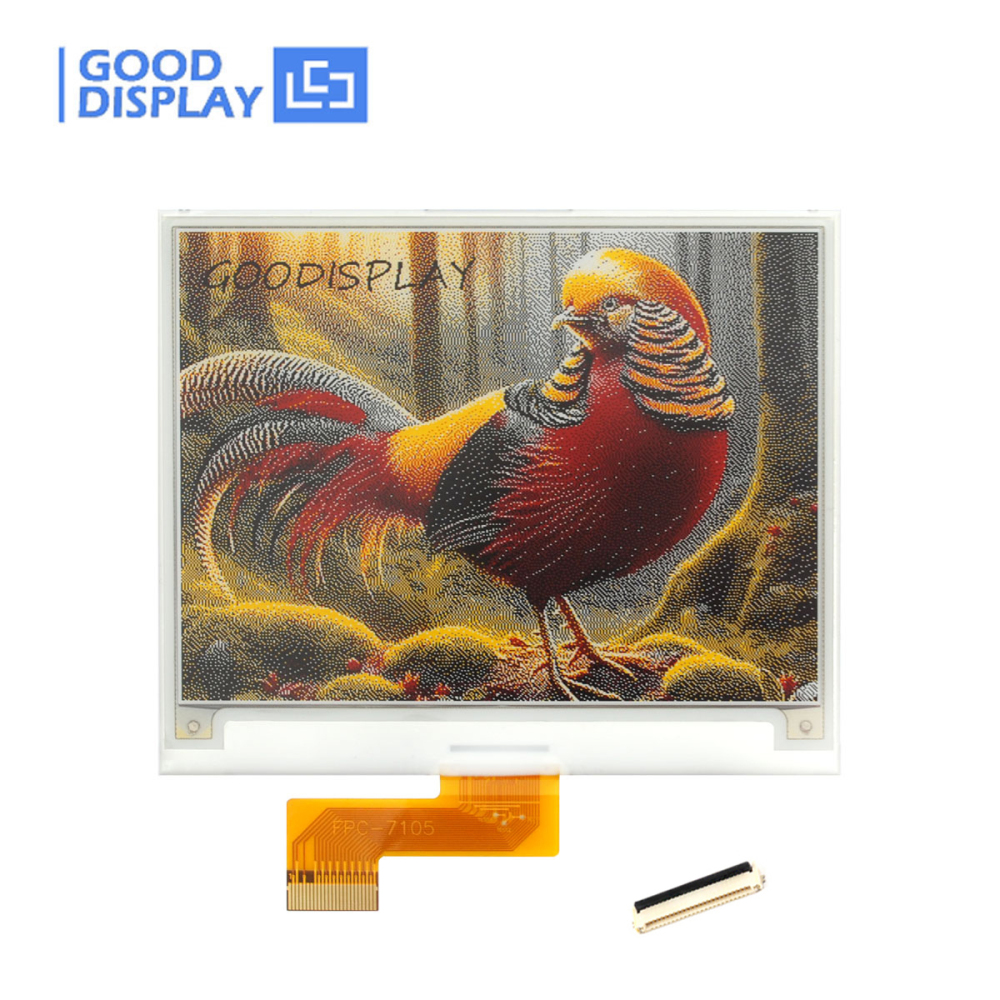

4.2" Multi-Color E Ink Display Black, White, Yellow, and Red with 400x300 Resolution GDEM042F52

Name: 4.2" Multi-Color E Ink Display Black, White, Yellow, and Red with 400x300 Resolution GDEM042F52
Brand: GOOD DISPLAY
Price: 11.04 USD
Availability: InStock
Rating: 5 (2 reviews)

(2)

31 Sold

$11.04 ~~$13.80~~

20% OFF

4.2-inch Black, White, Yellow, and Red E Ink Display (GDEM042F52) with 400x300 resolution. This cost-effective, highly recommended display is perfect for a variety of applications, including smart home devices, wearable tech, shelf signs..

GET $3.00 OFF ON ORDERS OVER $59.00

Get it

ERP72QDC

Received successfully

Coupon Code

CONTINUE SHOPPING

Wholesale:

Quantity:

0 in stock

1 * $11.04 = $11.04

save $0.00

Add to Favorites (0)

1/1

Description

		4.2" Multi-Color E Ink Display (Black, White, Yellow, Red)

		The 4.2-inch color E Ink Display is a cost-effective solution suitable for a wide range of applications, including smart home devices, wearable technology, shelf tags, and industrial instruments. Leveraging bistable display technology, this screen retains its content even during power outages and consumes minimal energy during refresh operations, delivering truly green and energy-efficient performance.

	Special Features
	● Vibrant Four-Color Display The Black, White, Yellow, and Red E Ink technology adds a splash of color to smart home and retail environments, making information display more eye-catching and especially suitable for smart tags and shelf signage. ● Ultra-Low Power Consumption With zero power consumption when not refreshing, the E Ink display helps you save energy and reduce carbon emissions. It's an eco-friendly choice for sustainable living and lowering your carbon footprint. ● Wide Viewing Angle Enjoy a viewing angle exceeding 170 degrees, ensuring sharp and clear content from any direction. Ideal for public displays and industrial instruments. ● Eye-Friendly Technology Designed with zero blue light emission, this display protects your eyes, making it perfect for prolonged use in smart home devices and wearable technology, ensuring comfort and safety for your vision. ● Durable Anti-Glare Surface Featuring a hard-coated, anti-glare surface, this display offers enhanced durability and excellent readability, even in bright light, making it suitable for both indoor and outdoor applications.

	Technical Details

Product Specifications
PART NUMBER	GDEM042F52	CONNECTOR	24 PIN 0.5mm
SIZE	4.2 inch	COLOR	Black, White, Red, Yellow
TYPE	Dot Matrix	MAX GRAYSCALE	2
IC	JD79668	FULL UPDATE(s)	20
RESOLUTION	400x300	FAST UPDATE(s)	12
PPI	119.05	OPERATING TEMP.	0℃~40℃

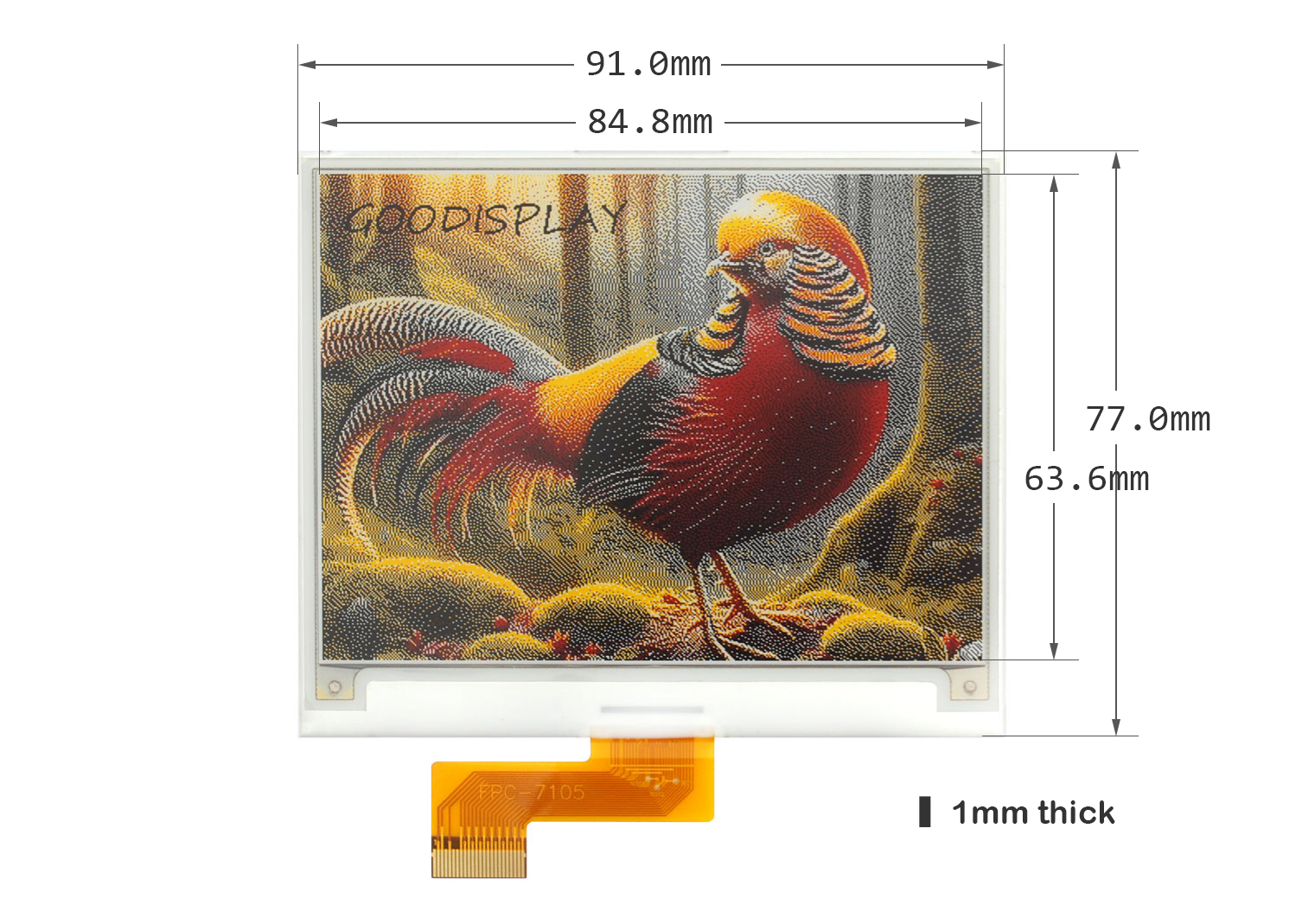

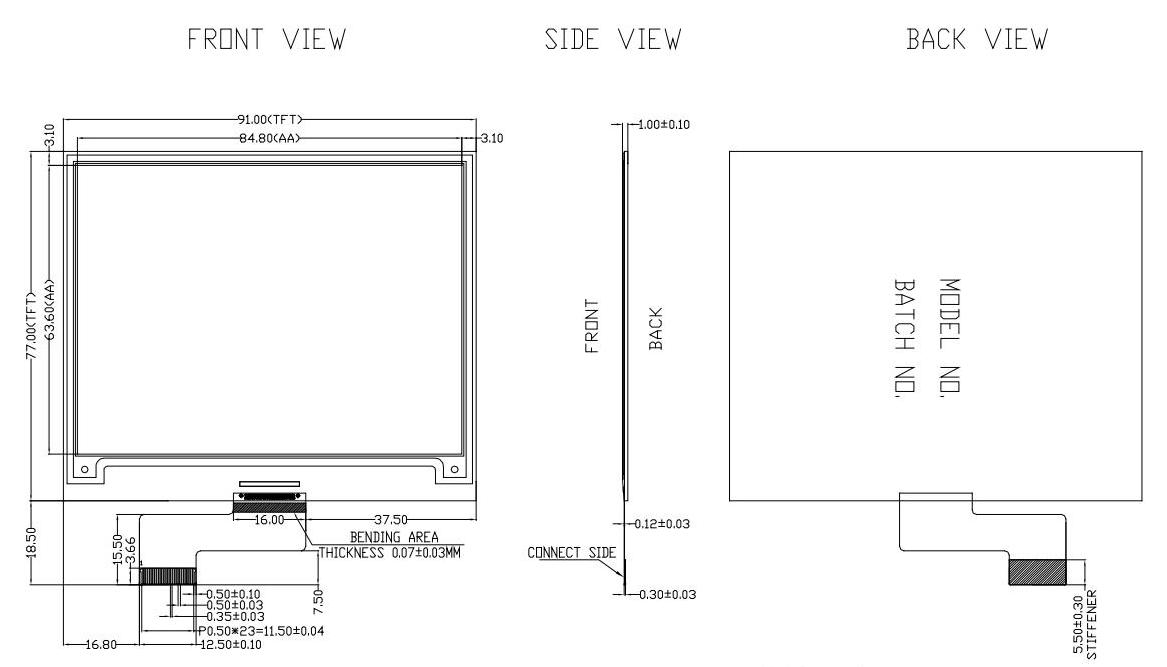

OUTLINE SIZE(mm)	91x77x1.0	STORAGE TEMP.	-25℃~70℃
ACTIVE SIZE(mm)	84.8x63.6	POWER CONSUMPTION OF THE REFRESH(mW)	18.6
PIXEL PITCH(mm)	0.212x0.212	STANDBY POWER CONSUMPTION (mW)	0.0012
INTERFACE	SPI

Matching Driver Boards

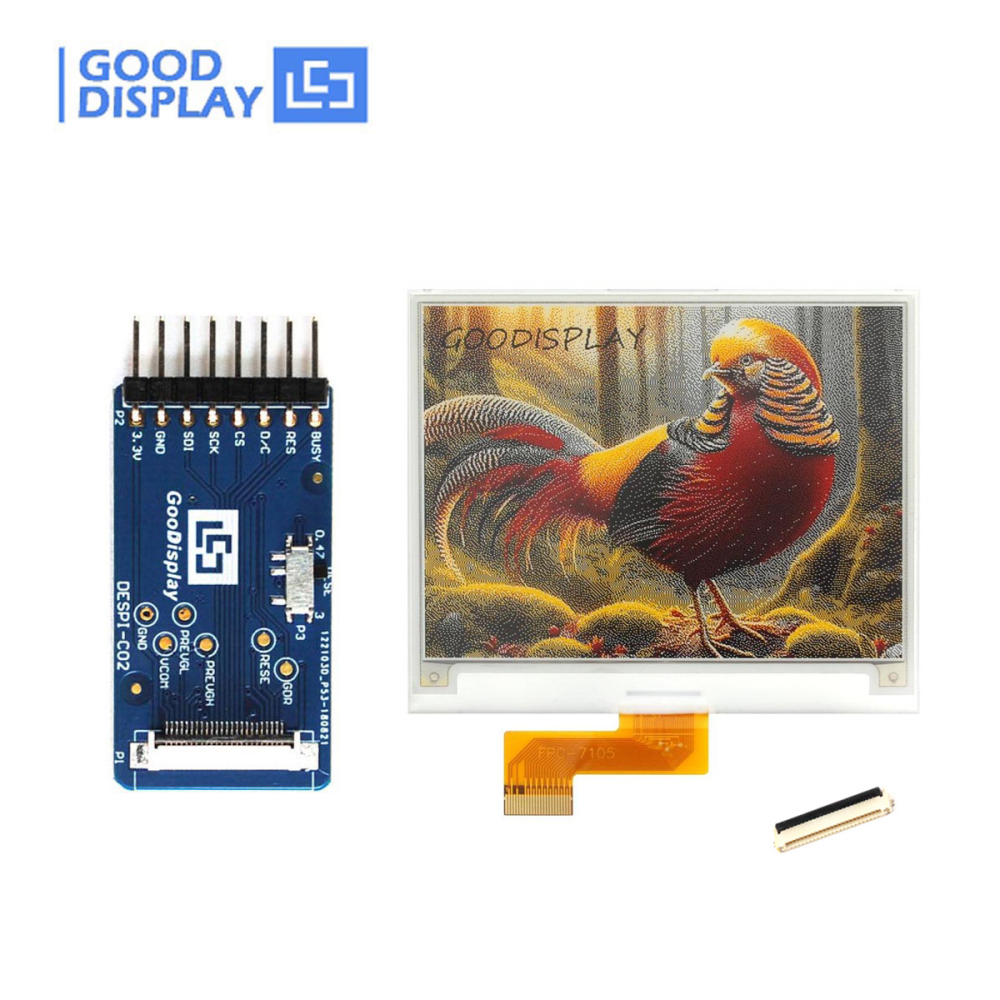

Ⅰ. DESPI-C02
(EPD adapter Board)

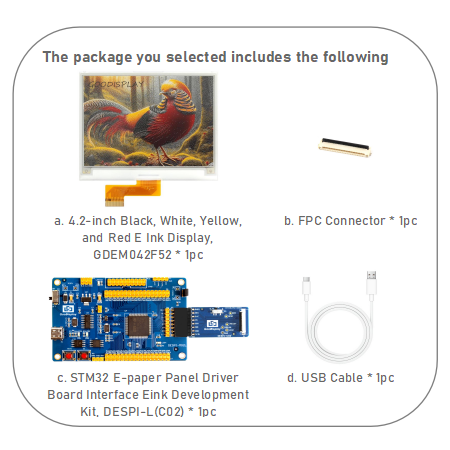

Ⅱ. DESPI-L(C02)
(STM32 Demo Kit)

Ⅳ. ESP8266-L(C02)
(ESP8266 Demo Kit)

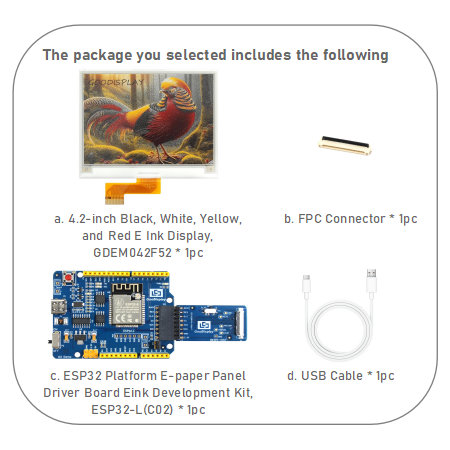

Ⅴ. ESP32-L(C02)
(ESP32 Demo Kit)

Ⅵ. ESP32E6-E01
(24Pin SPI EPD Demo Kit)

	Files And Download
	● GDEM042F52 Specification	● GDEM042F52 ESP8266 Sample Code
	● JD79668AA Driver IC Datasheet	● GDEM042F52 ESP32 Sample Code
	● Image2LCD Software Bitmap Conversion Instructions V1.1	● The latest Catalog of ePaper display
	● GDEM042F52 STM32 Sample Code	● Why can't I download the files(updated)?

Product Application

Medical Device	Industrial Instrument	Internet of Things (IoT) Device	Electronic Business Cards

Every Day is Earth Day
You don't need to be an environmental scientist to make sustainable choices. At GooDisplay, we passionately integrate sustainability into the production of e-paper.

Substitute for Paper Usage Epaper provide a paper-like touch and reading experience, serving as a sustainable alternative to traditional paper and reducing environmental impact from deforestation and paper manufacturing.	Device Packaging 95% of this device's packaging is crafted from wood fiber-based materials sourced responsibly from managed forests or recycled sources.	Energy Efficiency Epaper consumes minimal energy compared to conventional displays, reducing electricity bills and easing the demand on power plants, thereby lowering greenhouse gas emissions—a perfect choice for eco-conscious consumers.

We Also Recommend

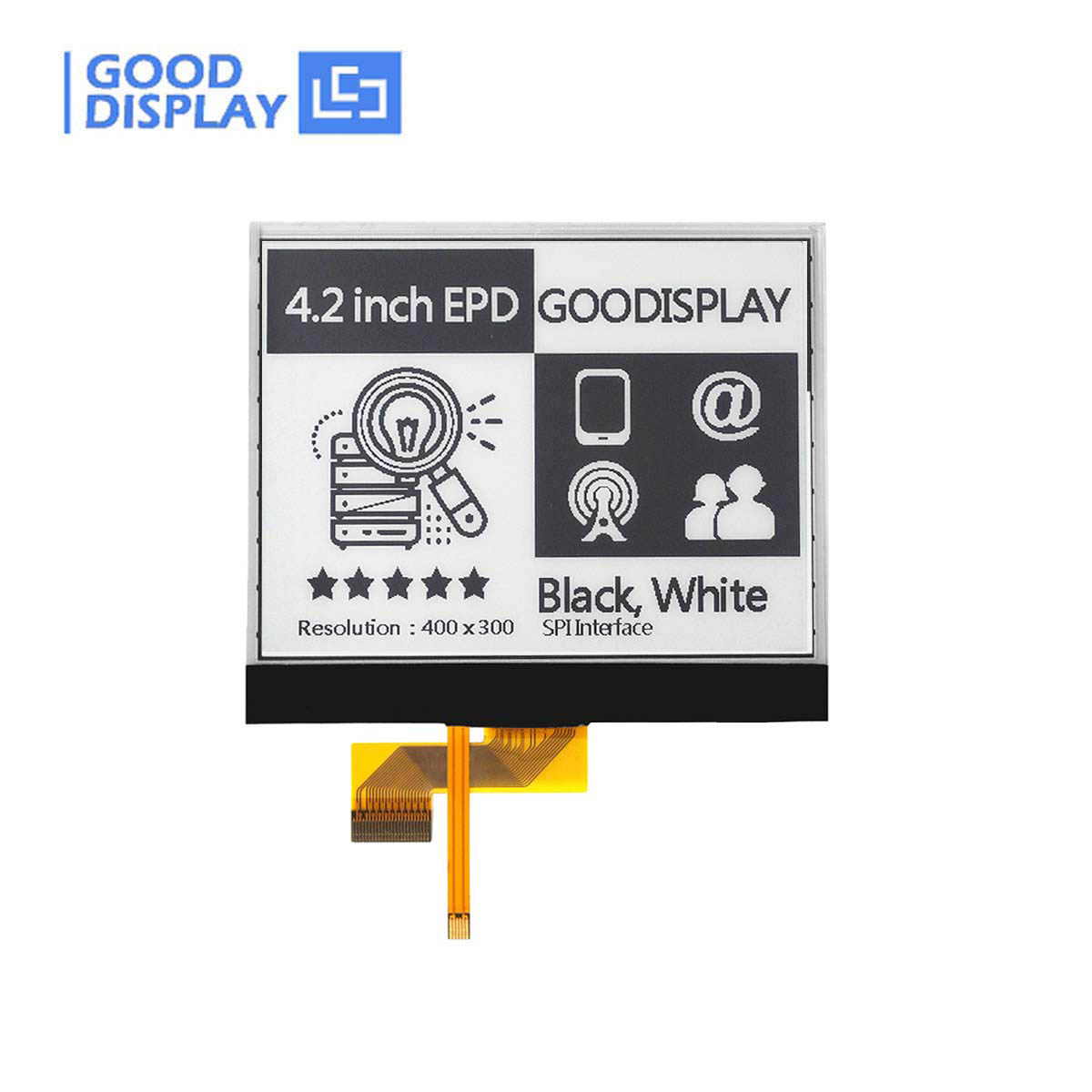

4.2 inch e-paper display fast update Morochrome SPI e-ink for digital price tags, GDEY042T81	4.2-Inch E-Paper Display with Front Light and Fast Refresh Rate, GDEY042T81-FL02	4.2-Inch E-Paper Touchscreen Display with Fast Update, Monochrome SPI E-Ink, Front Light for Optimal Reading Experience, GDEY042T81-FT02	4.2 inch tri-color e-ink display supports partial update epaper screen , GDEY042Z98

Why GooDisplay E-Paper Refreshes Faster

Optimized Fast-Refresh FPL

We rigorously select fast-refresh FPL films at the raw material level, laying a solid hardware foundation for high-speed performance.

Smart Temp-Controlled Drive

Our engineers optimize waveform files for different temperature ranges, ensuring excellent display quality even during rapid refresh cycles.

Chip-Level Integrated Solution

Optimized waveforms are built into the display driver chip—activate fast refresh mode with a simple code call!

Display Type	Refresh Capability	Available Sizes
Black & White (B/W) Displays	Supports fast refresh, partial refresh, and 4-level grayscale	0.97" to 10.3"
Black, White & Red (BWR) Displays	Supports fast refresh and partial B/W refresh	2.13" to 11.6"
Black, White, Red & Yellow (BWRY) Displays	Supports fast refresh with multi-color layered updating	0.97" to 11.6"
