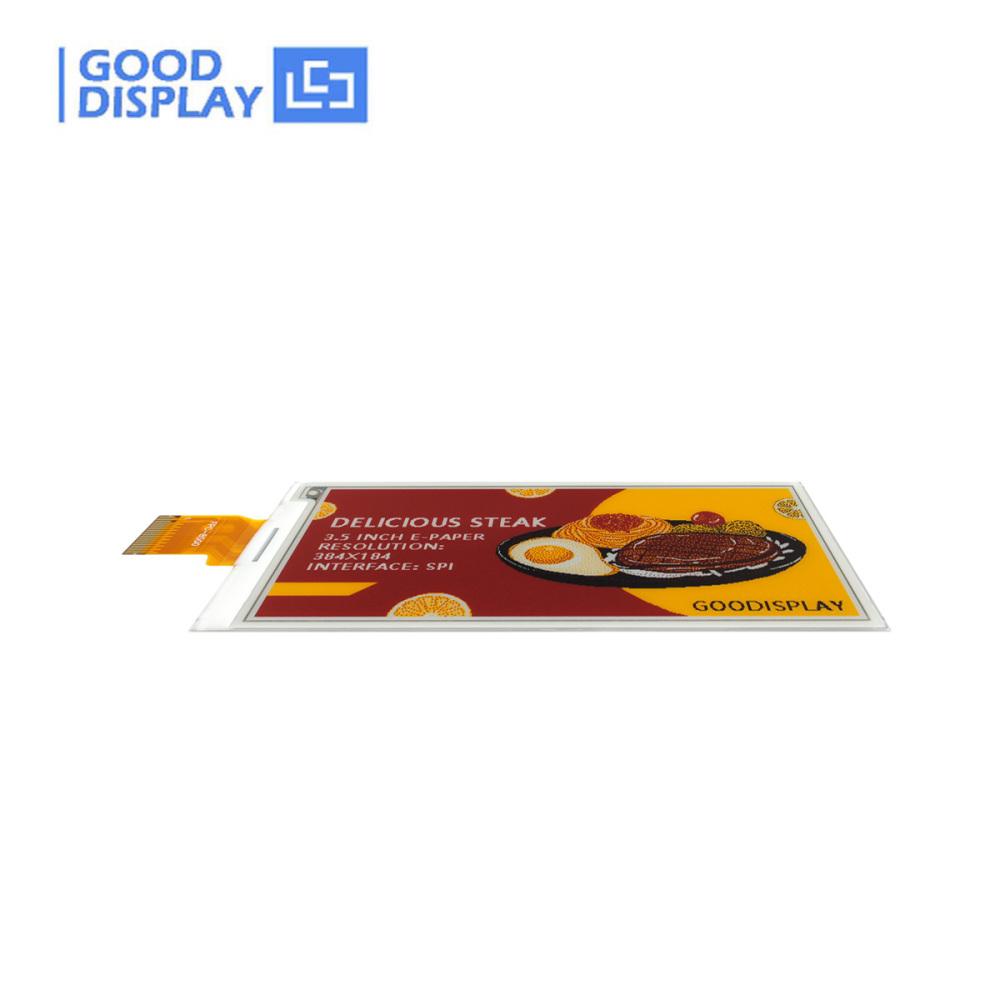

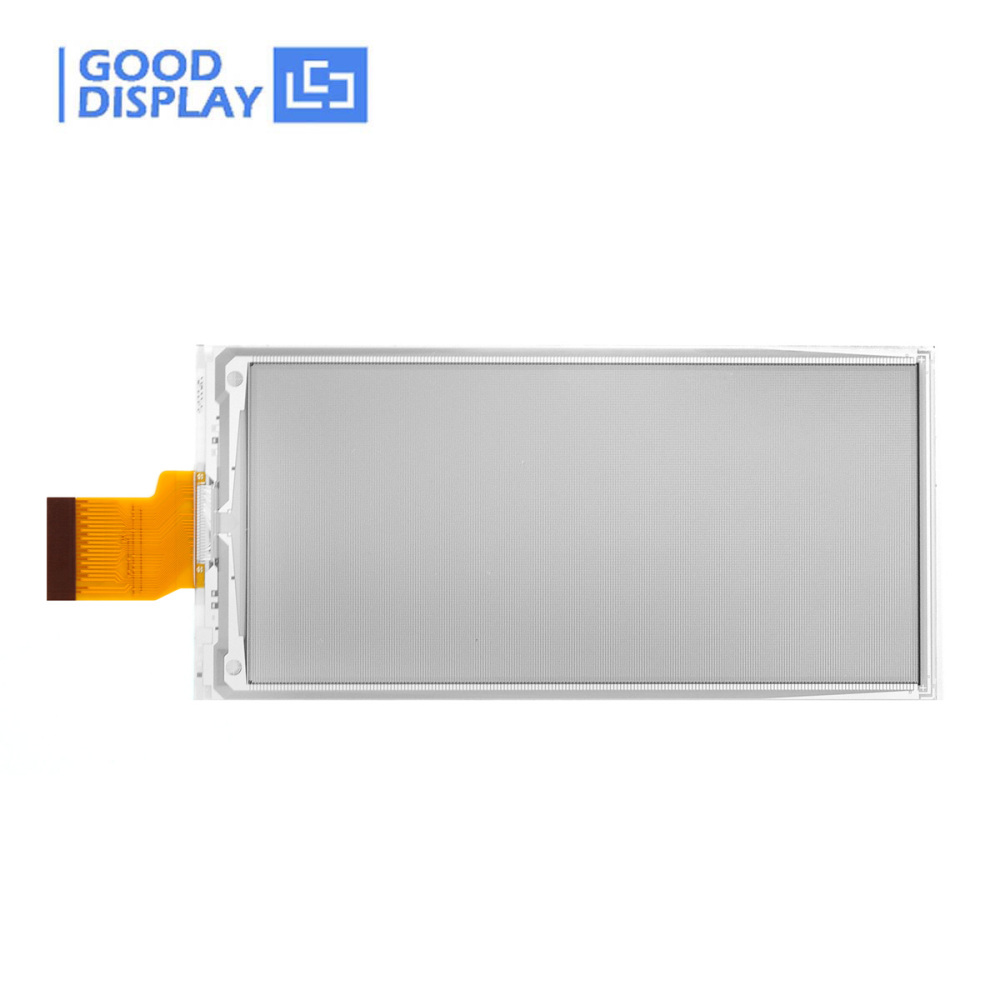

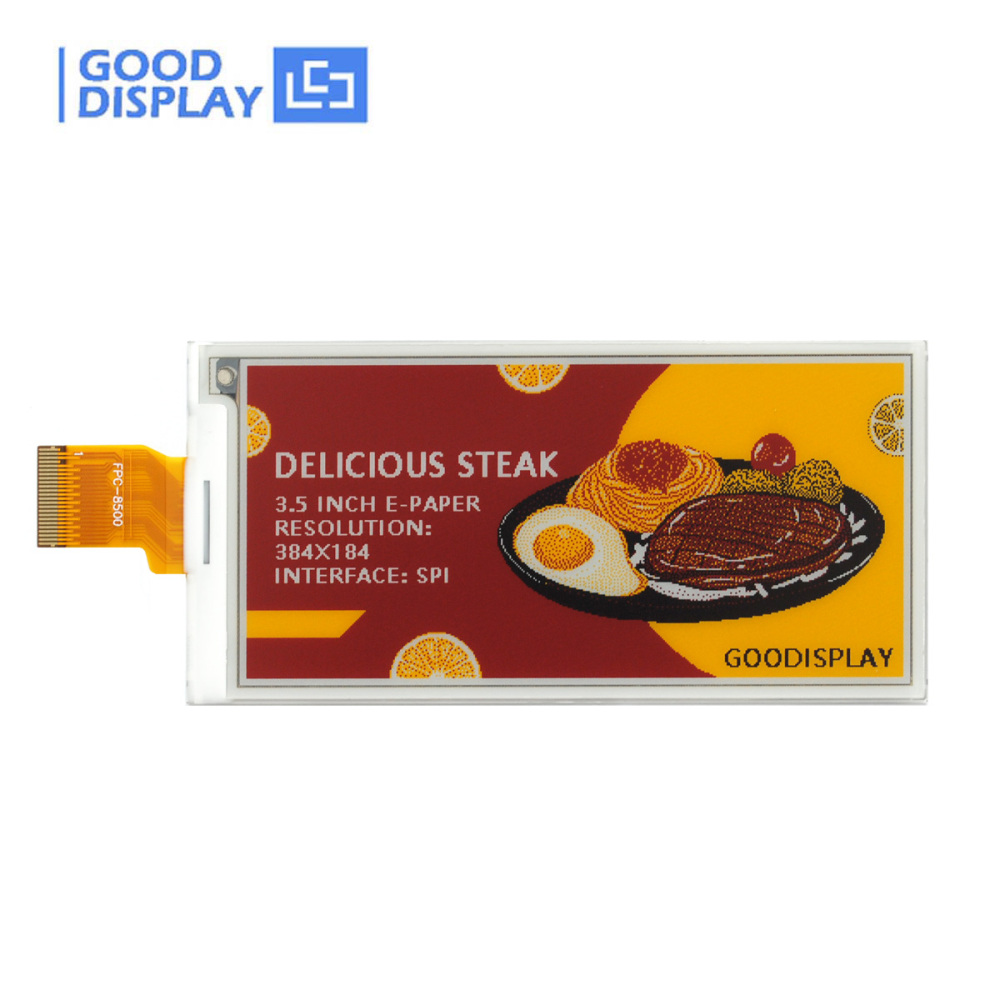

3.5" 4-Color E-Paper Display Zero-Power E Ink Module 384x184 High-Contrast SPI Ready, GDEM035F86

SKU:
(0)
0 Sold
$9.88 $0.00
3.5 inch 4-color e-Paper module. Integrated DC-DC, SRAM, and temp compensation. Eliminates external components, reduces BOM cost. Black/White/Red/Yellow, 122 PPI. Datasheet, Arduino/ESP32 code, and driver boards available.
GET $3.00 OFF ON ORDERS OVER $59.00
Get it
ERP72QDC
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • GET $2.00 OFF ON ORDERS OVER $100.00
  • GET $6.00 OFF ON ORDERS OVER $199.00
  • GET $10.00 OFF ON ORDERS OVER $298.00
01/06/2026/00:00:00 - 30/06/2026/00:00:00
    Please select the information you want X
  • product:

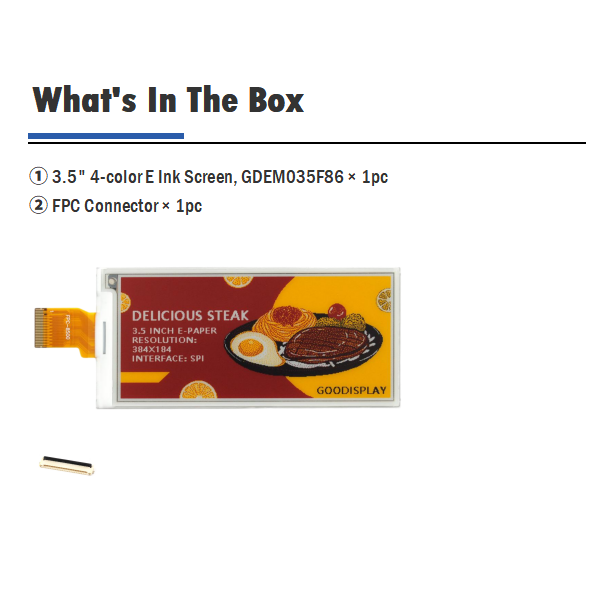

    ePaper Only
    ePaper Only

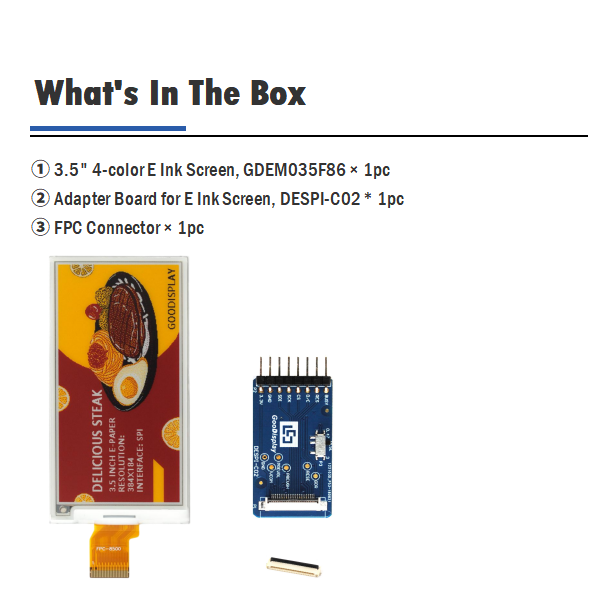

    with Adapter Board
    with Adapter Board
    with STM32 Demo Kit
    with STM32 Demo Kit
    with ESP32 Demo Kit
    with ESP32 Demo Kit
    Please select the information you wantX
Quantity:
0 in stock
Add to Favorites (0)
  • 9.7-inch 4 Colors Vivid Paper-Like Display 12s Fast Refresh SPI Interface 960×672 E-Ink Panel, GDEY097F91
  • 9.7-inch 4 Colors Vivid Paper-Like Display 12s Fast Refresh SPI Interface 960×672 E-Ink Panel, GDEY097F91
  • 9.7-inch 4 Colors Vivid Paper-Like Display 12s Fast Refresh SPI Interface 960×672 E-Ink Panel, GDEY097F91
  • 9.7-inch 4 Colors Vivid Paper-Like Display 12s Fast Refresh SPI Interface 960×672 E-Ink Panel, GDEY097F91
  • 9.7-inch 4 Colors Vivid Paper-Like Display 12s Fast Refresh SPI Interface 960×672 E-Ink Panel, GDEY097F91
  • 3.5" 4-Color E-Paper Display Zero-Power E Ink Module 384x184 High-Contrast SPI Ready, GDEM035F86
  • 3.5" 4-Color E-Paper Display Zero-Power E Ink Module 384x184 High-Contrast SPI Ready, GDEM035F86
  • 3.5" 4-Color E-Paper Display Zero-Power E Ink Module 384x184 High-Contrast SPI Ready, GDEM035F86
  • 3.5" 4-Color E-Paper Display Zero-Power E Ink Module 384x184 High-Contrast SPI Ready, GDEM035F86
  • 9.7-inch 4 Colors Vivid Paper-Like Display 12s Fast Refresh SPI Interface 960×672 E-Ink Panel, GDEY097F91
  • 9.7-inch 4 Colors Vivid Paper-Like Display 12s Fast Refresh SPI Interface 960×672 E-Ink Panel, GDEY097F91
  • 9.7-inch 4 Colors Vivid Paper-Like Display 12s Fast Refresh SPI Interface 960×672 E-Ink Panel, GDEY097F91
  • 9.7-inch 4 Colors Vivid Paper-Like Display 12s Fast Refresh SPI Interface 960×672 E-Ink Panel, GDEY097F91
  • 9.7-inch 4 Colors Vivid Paper-Like Display 12s Fast Refresh SPI Interface 960×672 E-Ink Panel, GDEY097F91
  • 3.5" 4-Color E-Paper Display Zero-Power E Ink Module 384x184 High-Contrast SPI Ready, GDEM035F86
  • 3.5" 4-Color E-Paper Display Zero-Power E Ink Module 384x184 High-Contrast SPI Ready, GDEM035F86
  • 3.5" 4-Color E-Paper Display Zero-Power E Ink Module 384x184 High-Contrast SPI Ready, GDEM035F86
  • 3.5" 4-Color E-Paper Display Zero-Power E Ink Module 384x184 High-Contrast SPI Ready, GDEM035F86
1/1
  • 9.7-inch 4 Colors Vivid Paper-Like Display 12s Fast Refresh SPI Interface 960×672 E-Ink Panel, GDEY097F91
  • 9.7-inch 4 Colors Vivid Paper-Like Display 12s Fast Refresh SPI Interface 960×672 E-Ink Panel, GDEY097F91
  • 9.7-inch 4 Colors Vivid Paper-Like Display 12s Fast Refresh SPI Interface 960×672 E-Ink Panel, GDEY097F91
  • 9.7-inch 4 Colors Vivid Paper-Like Display 12s Fast Refresh SPI Interface 960×672 E-Ink Panel, GDEY097F91
  • 9.7-inch 4 Colors Vivid Paper-Like Display 12s Fast Refresh SPI Interface 960×672 E-Ink Panel, GDEY097F91
  • 3.5" 4-Color E-Paper Display Zero-Power E Ink Module 384x184 High-Contrast SPI Ready, GDEM035F86
  • 3.5" 4-Color E-Paper Display Zero-Power E Ink Module 384x184 High-Contrast SPI Ready, GDEM035F86
  • 3.5" 4-Color E-Paper Display Zero-Power E Ink Module 384x184 High-Contrast SPI Ready, GDEM035F86
  • 3.5" 4-Color E-Paper Display Zero-Power E Ink Module 384x184 High-Contrast SPI Ready, GDEM035F86
Frequently Bought Together
more
Frequently Bought Together
  • Description

3.5" 4-color E-Ink Display

This 3.5" ePaper doesn't just update labels – it commands the shelf in black, white, red, and yellow. At 121.7 DPI, every pixel delivers razor‑sharp contrast that cuts through store lighting and industrial glare. It refreshes in just 20s (12s partial), yet draws zero power once static – so your product outlasts its battery. Slim at 1mm, SPI‑ready, and fully self‑contained with on‑chip power, temperature sensor, and pre‑stored waveform – no external parts, no calibration, 0–40°C guaranteed. For ESL, IoT dashboards, or wearables, this display isn’t a component – it’s your silent competitive edge.

Core Advantages

4-Color High-Contrast

384×184 @ 121.7 PPI — true Black, White, Red & Yellow. Cuts through glare, makes your labels and dashboards unmissable.

  • 121.7 PPI
  • 4 Colors
  • 384×184 Res
Best-in-class

Zero-Power Display Retention

Image and data remain perfectly visible even after power is removed — no battery drain, no refresh needed.

  • 0.003 mW to hold
  • Years retention
  • Always readable
True Bistable

All‑in‑One Drop‑in Ready

Single‑chip DC‑DC, SRAM, timing, temp sensor & OTP pre‑stored waveform. No external parts, SPI ready — kills the BOM.

  • 1 Chip
  • 0 External
  • SPI Interface
BOM Killer

Technical Specifications

Part Number GDEM035F86
Type Dot Matrix

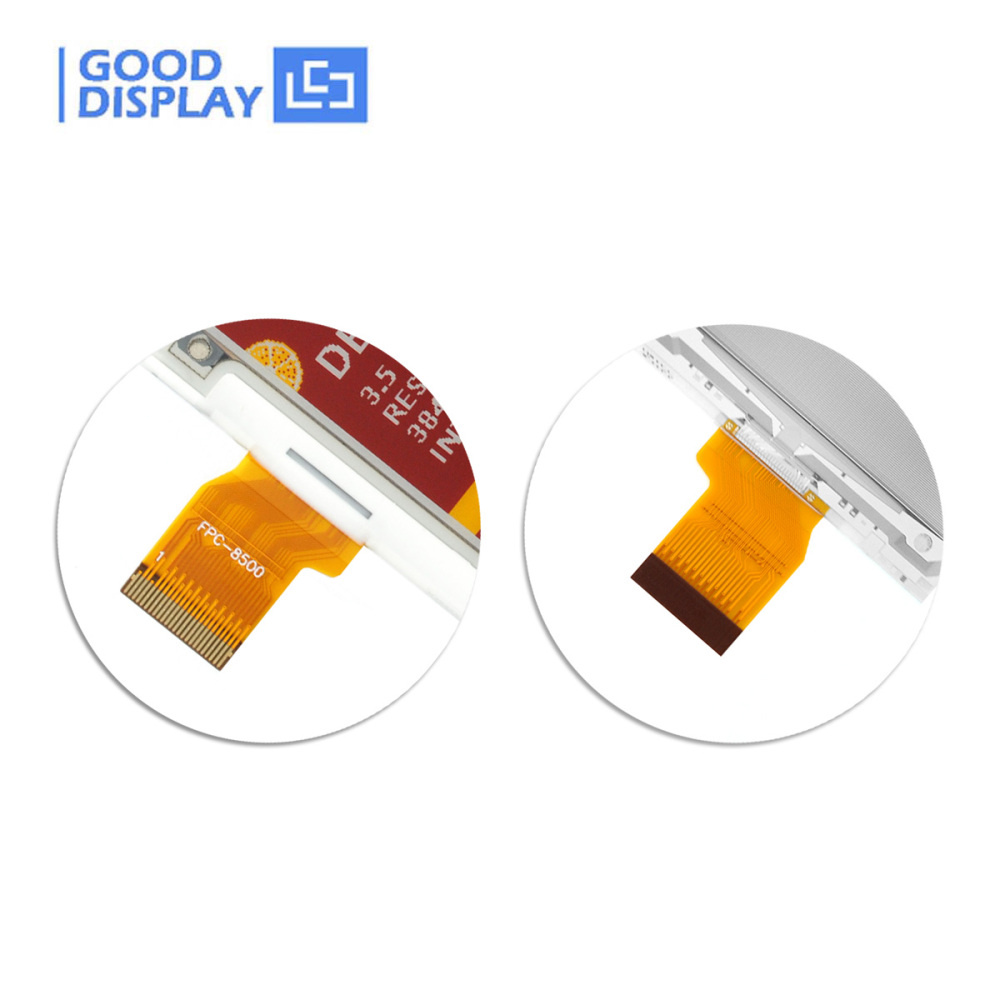

Connector 24 Pin 0.5mm
Size 3.5"
IC SSD2685A
Interface SPI
Resolution 384x184
Color Black, White, Red, Yellow
Operating Temp. 0℃~40℃
PPI 121.7
Full Refresh Time 20s
Storage Temp. -25℃~70℃
Outline Size 90.0x44.23x1.0mm
Fast Refresh Time 12s
Typical Power(mW) 10.5
Active Size 79.68x38.18mm
Weight /
Deep Sleep Power(mW) 0.003
Pixel Pitch 0.2075x0.2075mm

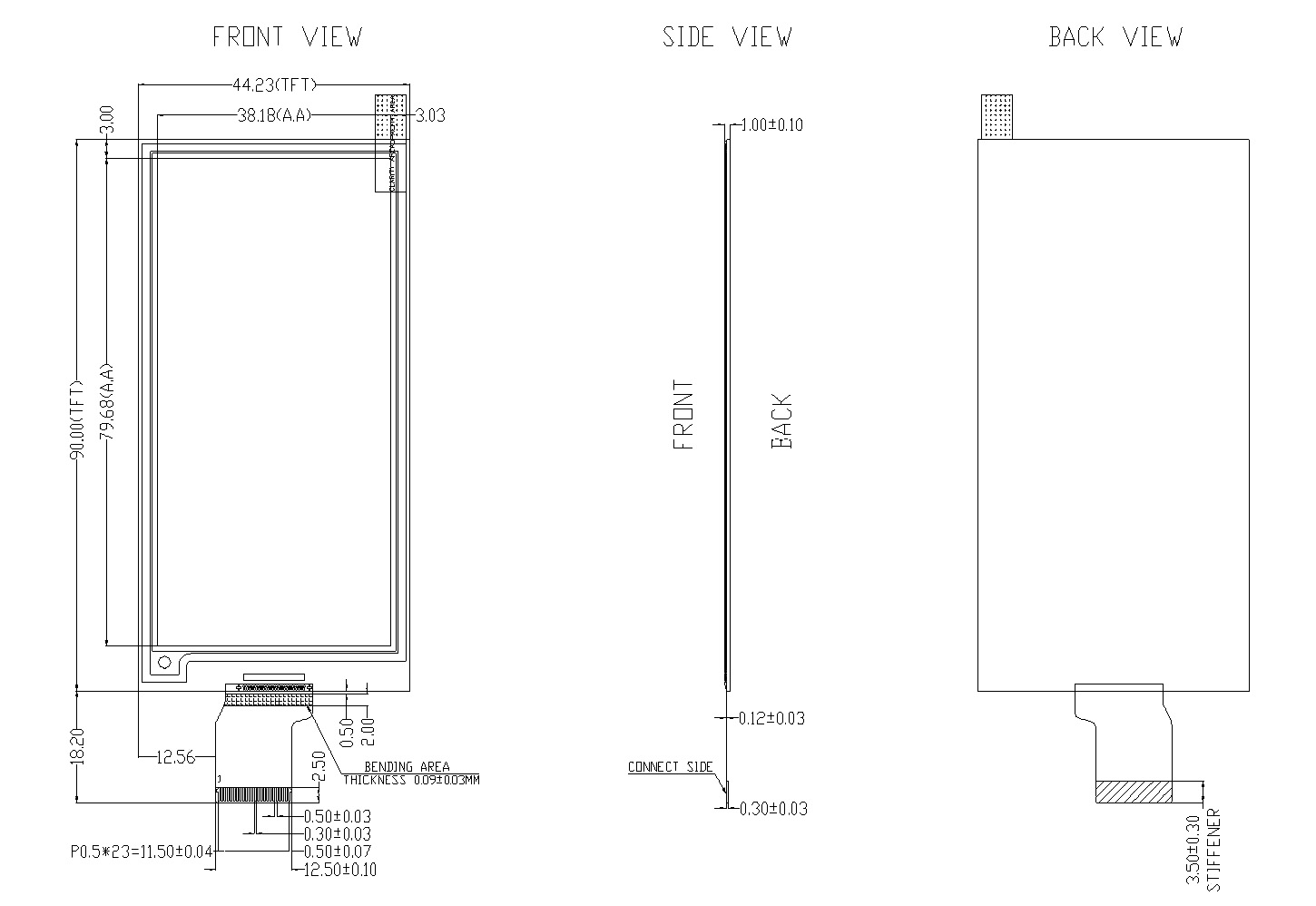

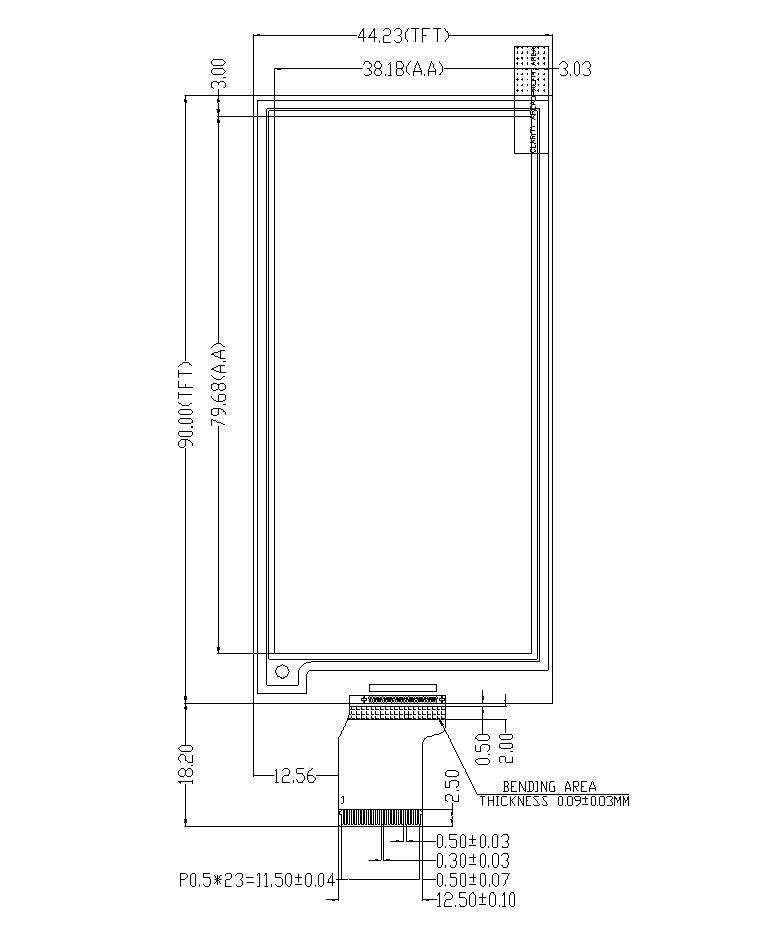

Drawing Details

Matching Driver Boards

DESPI-C02

Pure hardware interface adapter, no MCU, provides only physical conversion from SPI to 24-pin EPD.

View Details

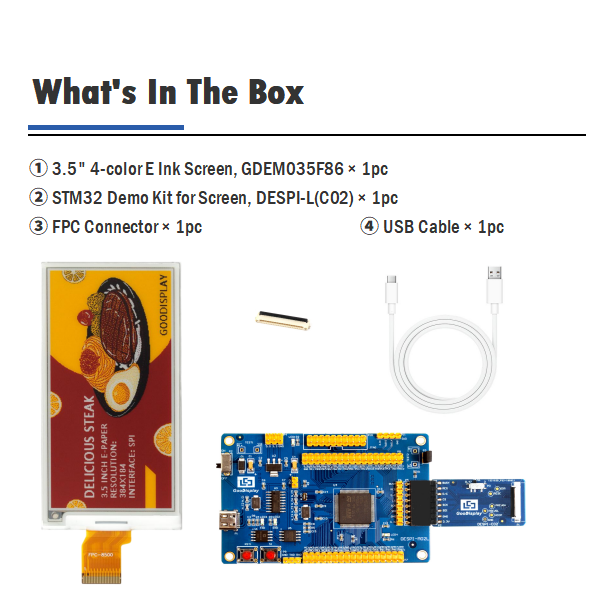

DESPI-L(C02)

STM32F103VET6 MCU, provides rich GPIO and Type-C interface.

View Details

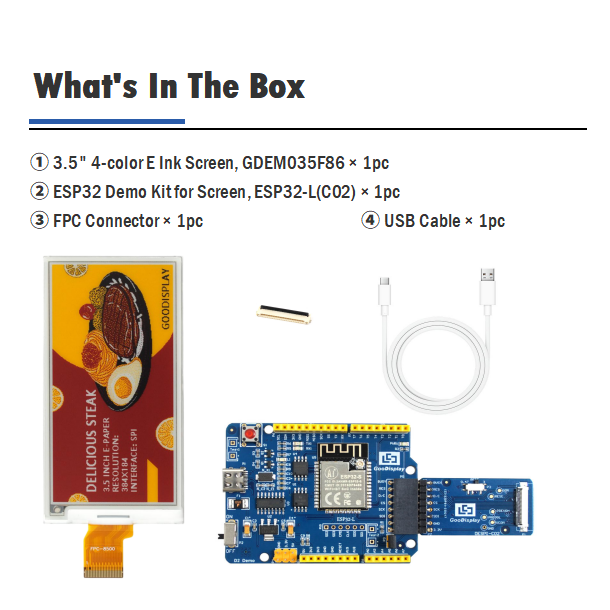

ESP32-L(C02)

ESP32-WROOM-32D MCU, integrated WiFi and Bluetooth.

View Details

ESP8266-L(C02)

Cost-optimized solution, ESP8266 core, supports WiFi connectivity.

View Details

Arduino UNO R4-L(C02)

Arduino ecosystem compatible, extensive library support.

View Details

Files & Download






Typical Applications

E-readers

Professional E-readers

Suitable for reading professional books, academic papers, technical documents, magazines, comics, etc. Charts, diagrams, and highlighted annotations are particularly important in these contexts.

Education

E-schoolbag/Classroom Display Terminals

Used for displaying textbooks, exercises, and exam papers. The four-color technology can better present color illustrations, highlight corrections, and indicate answer accuracy

Lifestyle

Kitchen Smart Recipe Displays

Fixed in the kitchen to show recipe steps, with color images making the instructions more intuitive.






We Also Recommend

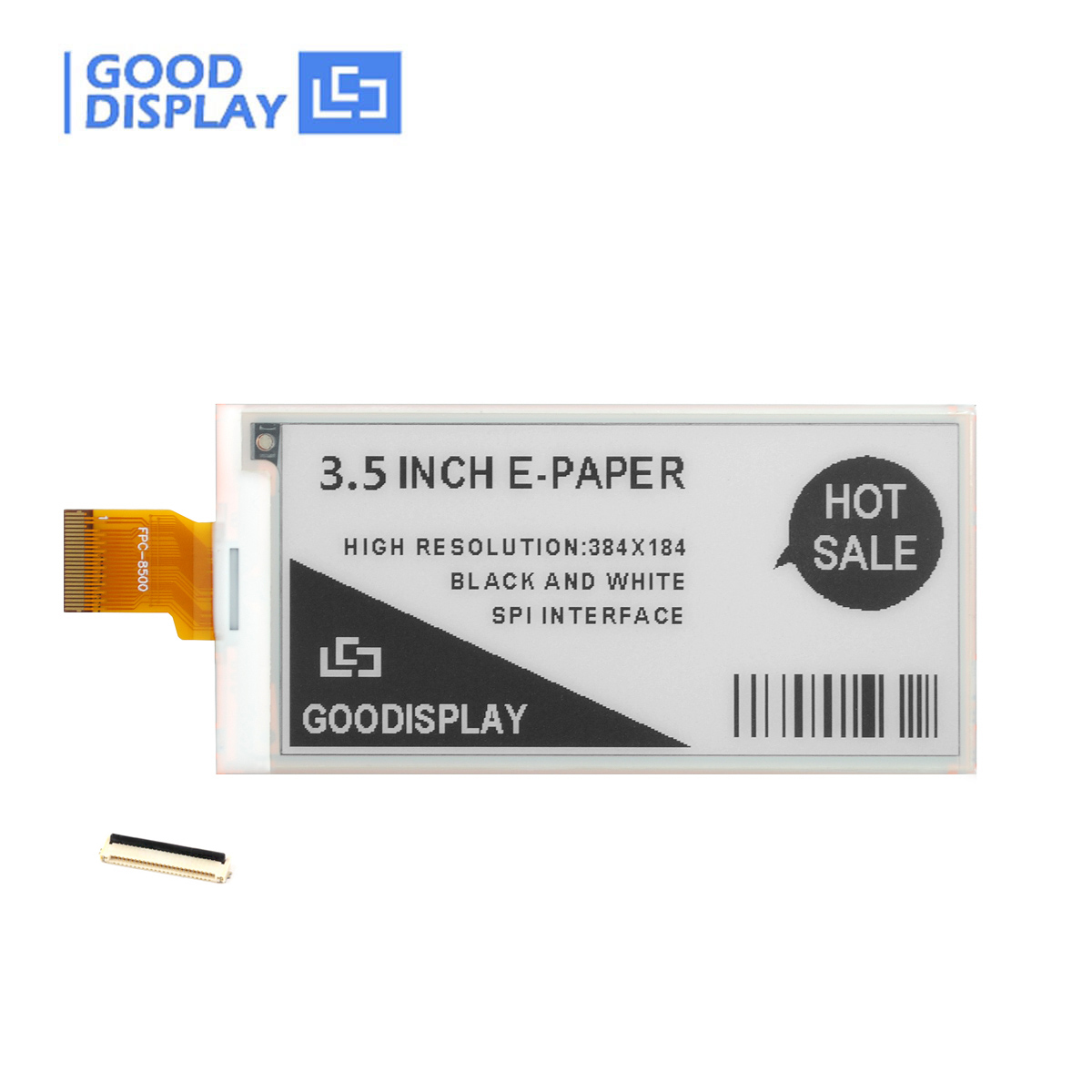

3.5" Monochrome EPD

View Details

3.7" Monochrome EPD

View Details

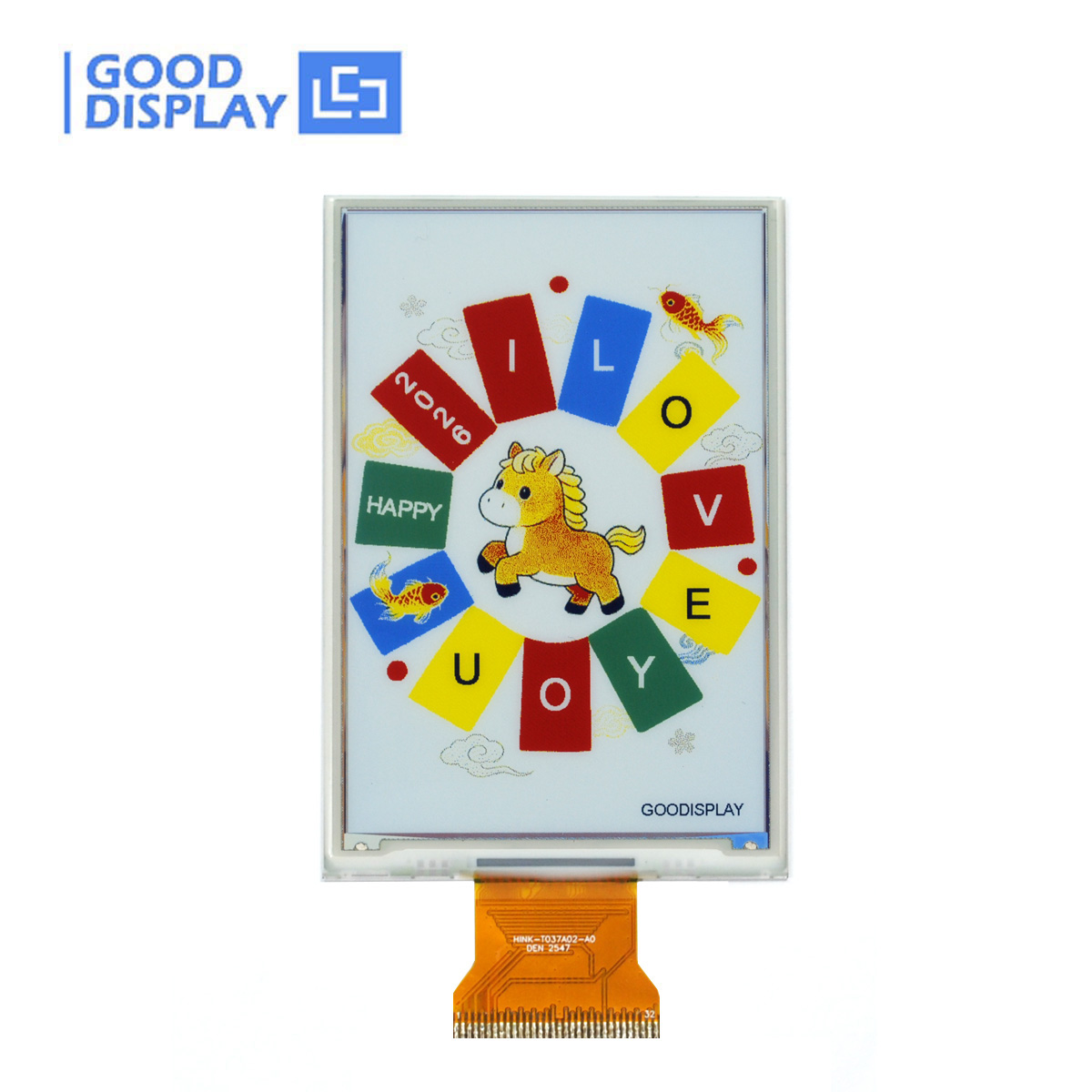

3.7" 4-color EPD

View Details

3.7" Full-color EPD

View Details

Sustainable Technology

Paperless Future

Each display saves ≈3,000 sheets annually. Join 15,000+ businesses reducing paper waste with ePaper solutions.

Sustainable Packaging

95% recycled materials with FSC-certified packaging. 100% plastic-free protective materials.

Energy Leadership

90% less energy than LCDs. Annual CO₂ reduction equivalent to 50 mature trees.

Why GooDisplay E-Paper Refreshes Faster



Optimized Fast-Refresh FPL

We rigorously select fast-refresh FPL films at the raw material level, laying a solid hardware foundation for high-speed performance.



Smart Temp-Controlled Drive

 Our engineers optimize waveform files for different temperature ranges, ensuring excellent display quality even during rapid refresh cycles.





Chip-Level Integrated Solution

Optimized waveforms are built into the display driver chip—activate fast refresh mode with a simple code call!

Display Type Refresh Capability Available Sizes
Black & White (B/W) Displays Supports fast refresh, partial refresh, and 4-level grayscale 0.97" to 10.3"
Black, White & Red (BWR) Displays Supports fast refresh and partial B/W refresh 2.13" to 11.6"
Black, White, Red & Yellow (BWRY) Displays Supports fast refresh with multi-color layered updating 0.97" to 11.6"
