E-paper display development demo kit, drive board Arduino, Support Wi-Fi, ESP8266(C02)

ESP8266(C02)
ESP8266(C02) for EPD development kit supports Arduino platform for SPI e-paper displays. Is mainly to assist customers to develop e-paper projects faster and smoother. Supports Wi-Fi, users need to develop by themselves.
1 Review(s) Sold:7
Price:
USD
$13.58
Quantity:
-
+
(93 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide
  • Reviews(1)

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




ESP8266 for EPD development kit supports Arduino platform for development procedures. This development kit is mainly to assist customers to develop e-paper display projects faster and smoother. It supports driving Good Display's black-white SPI E-paper Display and three-color (black, white and red/Yellow) Good Display ‘s SPI E-paper Display: 1.54'', 2.04'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''.

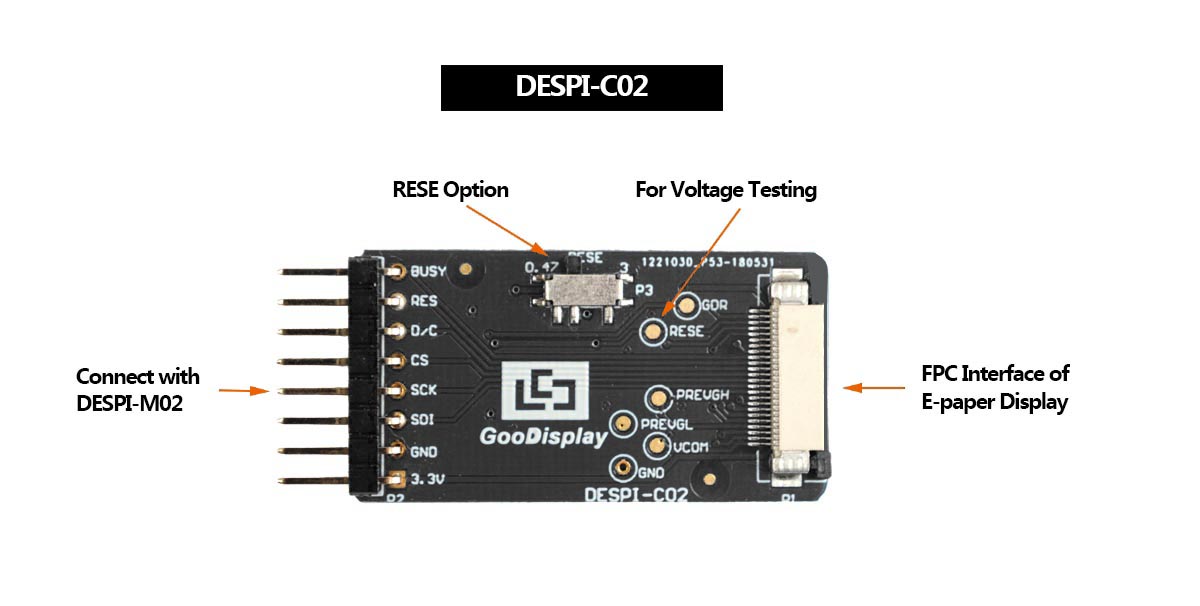

The ESP8266 for EPD development kit supports Wi-Fi, users need to develop by themselves. And it includes the motherboard ESP8266 for EPD and the adapter board DESPI-C02.



Relevant manual about this product on our official website (www.good-display.com), contact us please.







 THE ABOVE PRICE INCLUDE



1)  WIFI Driver board ESP8266 * 1pc
2)  Connector board DESPI-C02 * 1pc
3)  USB port cable * 1pc









 MAIN PARAMETERS




Part Number ESP8266-02
Platform Arduino
Function Drive E-paper Display
Outside Dimension 70mmx54mm (ESP8266 for EPD)
41x22mm (DESPI-C02)
Power Interface USB Interface
Sample Code Available (please contact sales)
Operating Temp. -20~70℃
Example Code Available
Reserved Function USB to serial port, indicator light, keys, current detection and so on.











☆ OTHER EPD DRIVE BOARD




DESPI (STM32 Platform/Universal)

DEArduino (Arduino Platform)

ESP32 (WiFi / Bluetooth)








☆ ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com


PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI

GDEW0102I4FC

1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0154I9FC 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -10℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEQ0213B74 2.13'' BW 4 250x122 48.55x23.7046 3 0℃~50℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEY029Z94 2.9'' BWR 2 296x128 66.896x29.056 12 0℃~40℃     SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -10℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEY037Z03 3.71'' BWR 2 416x240 81.54x47.04 12 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI
