E-paper display development demo kit, drive board Arduino, Support Wi-Fi, with touch screen and frontlight interface ESP8266(C03)

ESP8266 (C03) development kit supports program development using Arduino development platform. It is designed for SPI e-paper display. The connector board DESPI-C03 adds driving function for touch panel and frontlight.
    Please select the information you wantX
(18 available)
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews
Any questions, just feel free to contact me, my email is:

ESP8266 (C03) development kit supports program development using Arduino development platform.This development kit is used to help users develop e-paper display projects with provided source code to create more differentiated solutions. It is designed for SPI e-paper display. It supports driving Good Display's black-white e-paper display and three-color (black, white and red/Yellow) e-paper display: 1.54'', 2.04'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''. What’s more, DESPI-C03 can drive touch panel and front light panel.

ESP8266 (C03) development kit consists of motherboard ESP8266 for EPD and connector board DESPI-C03.

ESP8266 development kit is only for driving the e-paper, WIFI and other functions need to be developed by users according to the project.

· For SPI interface e-paper display.

. Supports Wi-Fi, users need to develop by themselves.

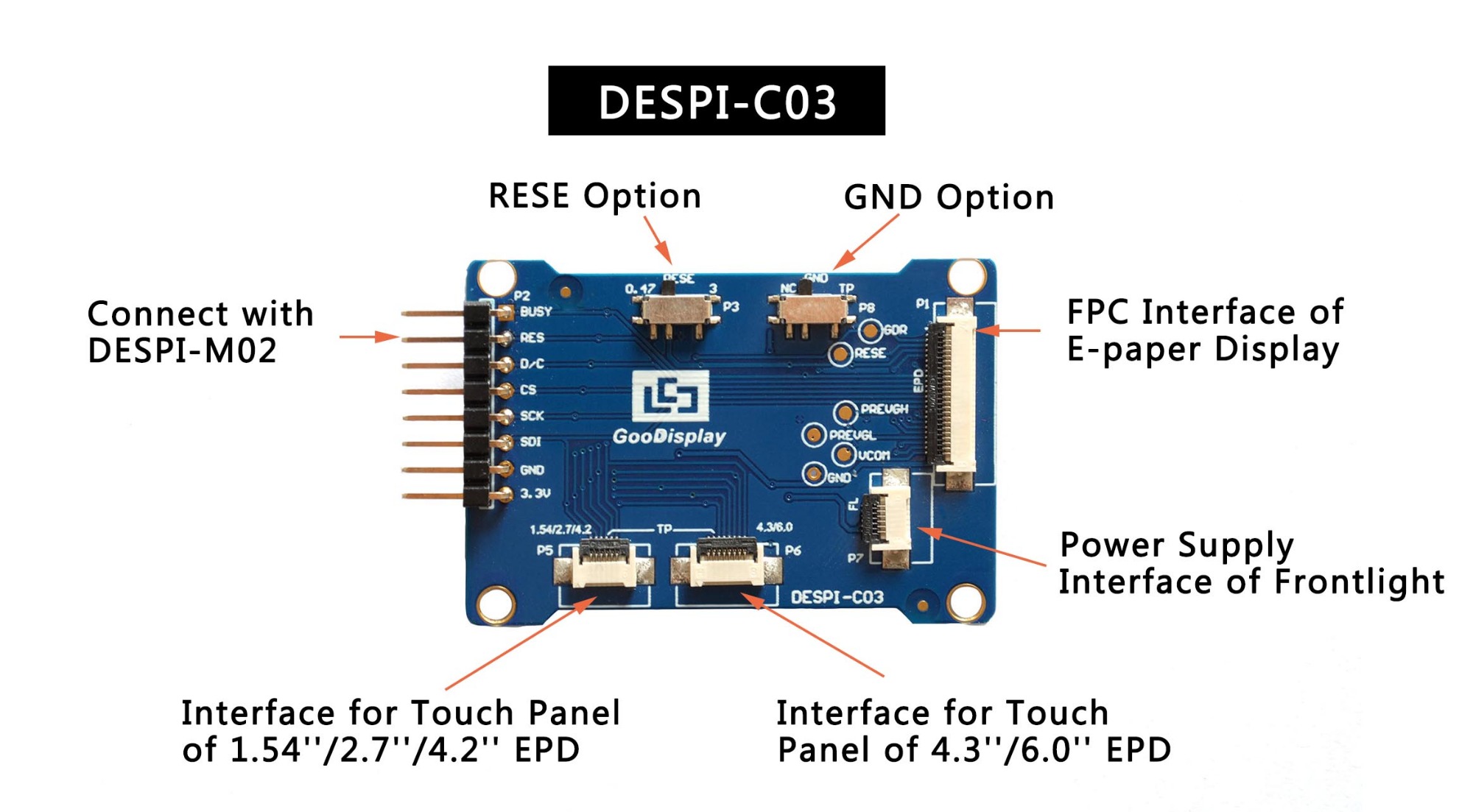

· The connector board DESPI-C03 adds driving function for touch panel and frontlight.

· Learn how to drive E-Paper Display based on Arduino.

· Test and evaluate the E-Paper Display.

. Secondary development based on DEArduino.

· Come with resources and manual.

1. Driving board ESP8266 for EPD*1pc
2. Connector board DESPI-C03 *1pc
3. USB port cable *1pc
4.Helpful resources and manual(sent via email or download link) *1pc

Part Number





Drive E-paper Display

Outside Dimension

70mmx54mm (ESP8266 for EPD)
52mm x 36mm (DESPI-C03)

Power Interface

USB Interface

Main Function

Driving e-paper display

Sample Code

Available (please contact sales)

Operating Temp


Additional Function  USB to serial port, indicator light, keys, current detection
and so on.

RESE To 0.47 Ω:
1.1.54 inch E-Paper Display:
2.2.13 inch E-Paper Display:  GDEW0213T5,GDEW0213Z16,GDEW0213I5F,GDEW0213C38,GDEW0213V7LT
3.2.6 inch E-Paper Display: GDEW026T0,GDEW026Z39
4.2.7 inch E-Paper Display:  GDEW027W3  GDEW027C44
5.2.9 inch E-Paper Display:  GDEW029T5,GDEW029Z10,GDEW029I6F,GDEW029C32
6.3.71 inch E-Paper Display: GDEW0371W7,GDEW0371Z80
7.4.2 inch E-Paper Display:  GDEW042T2,GDEW042Z15,GDEW042C37
8.5.83 inch E-Paper Display:  GDEW0583Z21,GDEW0583C64,GDEW0583Z83
9.7.5 inch E-Paper Display:  GDEW075Z09,GDEW075C21,GDEW075C64,GDEW075Z08
RESE To 3 Ω:
1.1.54 inch E-Paper Display:
2.2.04 inch E-Paper Display: GDE021A1
3.2.13 inch E-Paper Display:
4.2.9 inch E-Paper Display: GDEH029A1,GDEH029D56LT
5.5.83 inch E-Paper Display: GDEW0583T7
6.7.5 inch E-Paper Display: GDEW075T8
DEMO does not provide electronic paper screen, the screen must be purchased separately
