☆ INTRODUCTION
This is a 9.7 inch e ink display panel with 1200x825 resolution, Parallel interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, this 9.7 inch e-paper display GDEP097TC2 is an ideal choice for applications such as shelf label, industrial instrument, ebook reader and so on.
We could provide front light, touch screen and other accessories for you.

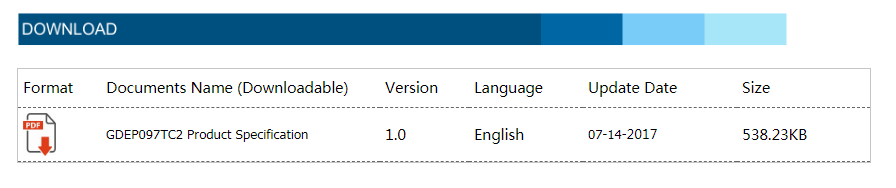

Relevant manual about this product on our official website (www.good-display.com), contact us please.
You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd.
☆ THE ABOVE PRICE INCLUDE
1) 9.7 inch Display resolution 1200x825 big size parallel e-paper display panel * 1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEP097TC2
|
|
|
SIZE
|
9.7 inch
|
MAX GRAYSCALE |
16 |
|
TYPE
|
Dot Matrix
|
COLOR |
Black,White |
|
RESOLUTION
|
1200x825
|
INTERFACE |
Parallel |
|
OUTLINE SIZE(mm)
|
218.8x156.425x1.15
|
FULL REFRESH(s) |
1 |
|
ACTIVE SIZE(mm)
|
202.8x139.425
|
PARTIAL REFRESH(s) |
1 |
|
PIXEL PITCH(mm)
|
0.169x0.169
|
POWER CONSUMPTION OF THE REFRESH(mW) |
3980 |
|
OPERATING TEMP.
|
0℃~50℃
|
STANDBY POWER CONSUMPTION (mW) |
0.6 |
|
STORAGE TEMP.
|
-20℃~70℃
|
|
|
☆ FEATURE
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● Bistable. (Will continue to display with no power source)
● Support Partial Refresh. The partial refresh rate is 1s/frame
● Low power consumption, basically power is only required for refreshing
☆ DRAWING
