Name: New 1.54 inch e-paper display frontlight three colors red E-ink GDEW0154Z04-FL
Brand: GOOD DISPLAY
SKU: GDEW0154Z04-FL
Price: 11.52 USD
Availability: InStock

Any questions, just feel free to contact me, my email is: clara@good-display.com

This is a 1.54 inch color e-paper display with frontlight, 200x200 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform, supports black, white and red.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, GDW0154Z04-FL is a very good choice for applications like shelf label, smart tags, wearable devices, smart home application, industrial instrument, smart cards and other related products, and it can be used in dark surrounding.

1)1.5''color e ink with frontlight GDEW0154Z04-FL *1pc
2)FPC Connector *1pc
After order our sales will contact you soon and send the documentation & source code.

With frontlight
Three colors, black, white and red

200x200 resolution
The I2C signal master interface to read built-in temperature sensor.
Come with helpful development resources and manual (STM32 platform )
Development platform available STM32 / Arduino / Raspberry Pi / ESP8266

Part Number	GDEW0154Z04-FL
Type	Dot Matrix
Resolution	200x200

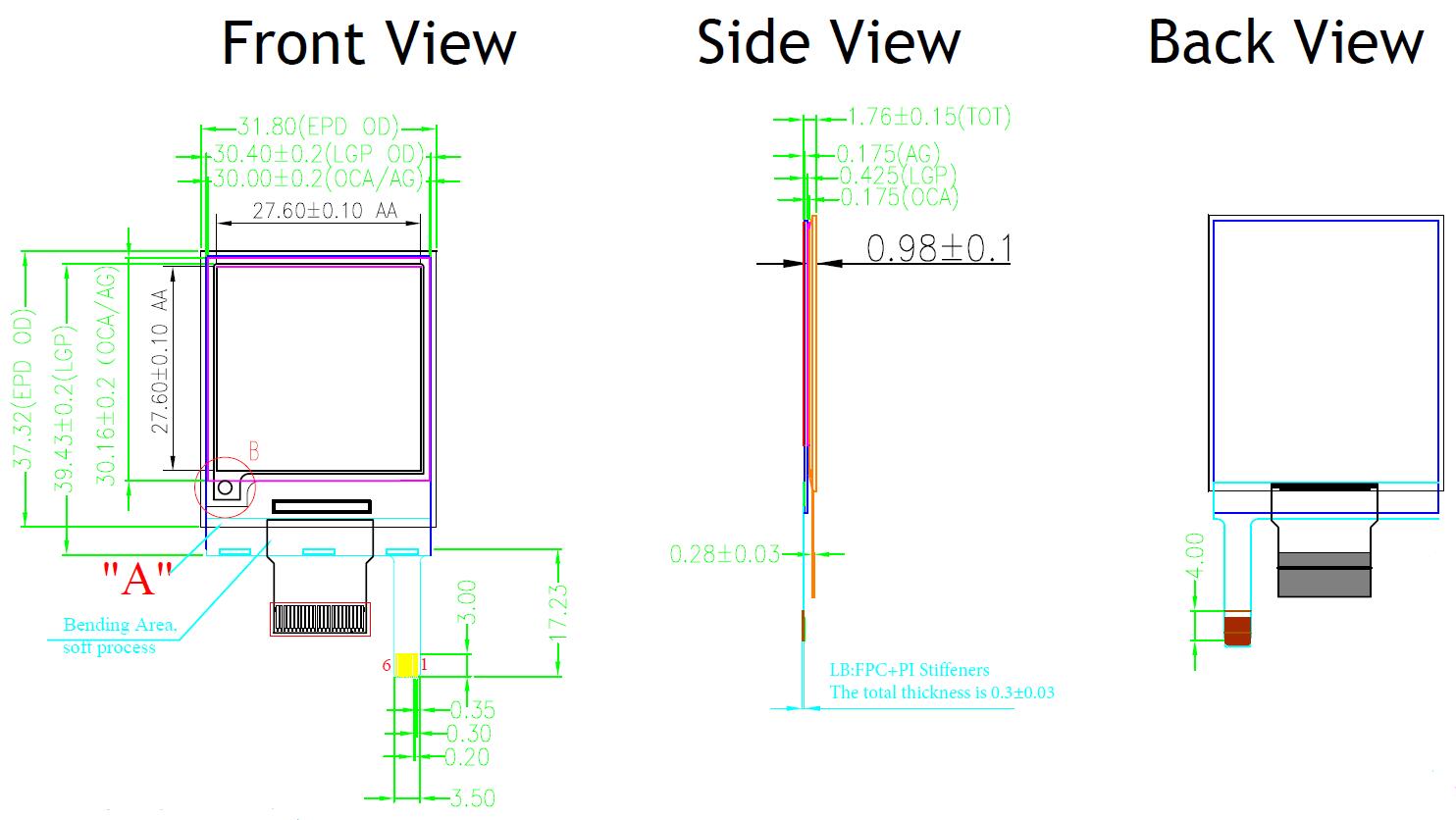

Outline Size(mm)	31.8x37.3x1.8
Actve Size(mm)	27.6x27.6
Operating Temp.	0℃~40℃
Storage Temp.	-25℃~60℃
Connector	24 Pin FPC, Pitch:0.5mm
Max Grayscale	2
Color	Black,White,Red
Time of refresh(s)	8
Current of the refresh(mA)	8
Interface	SPI
Driving voltage	2.8V-3V
Supply voltage of LED frontlight(TYP.)	3V
Power consumption of the e-paper only(mW)	26.4

Part Number	Color	Resolution	T/P and Front- light(Optional)	Features	Refresh Time
GDEW0154M09	B/W	200*200	√	Fast refresh,Partial refresh	0.82S(Fast refresh)
GDEW0154M10	B/W	152*152	√	DES, Wide working temperature, Can be used outdoors	4S(Full refresh)
GDEH0154D67	B/W	200*200	√	Partial refresh	2S(Full refresh)
GDEW0154I9F	B/W	152*152	x	Partial refresh, Flexible, 4 Grayscale	3S(Full refresh)
GDEW0154Z17	B/W/R	152*152	√	Three colors	16S(Full refresh)
GDEM0154E97LT	B/W	152*152	√	Ultra-low temperature	3S(Full refresh)
GDEW0154T8FL	B/W	152*152	√	Fast refresh,Partial refresh, with front light, 4 Grayscale	0.82S(Fast refresh)
GDEW0154T8	B/W	152*152	√	Fast refresh, Partial refresh, 4 Grayscale	0.82S(Fast refresh)
GDEW0154Z17FL	B/W/R	152*152	√	Three colors,with front light	16S(Full refresh)
GDEH0154D67-FL	B/W	200*200	√	Partial refresh,with front light	2S(Full refresh)
GDEW0154T8-FL	B/W	152*152	√	Fast refresh, Partial refresh, 4 Grayscale,with front light	0.82S(Fast refresh)
