☆ INTRODUCTION

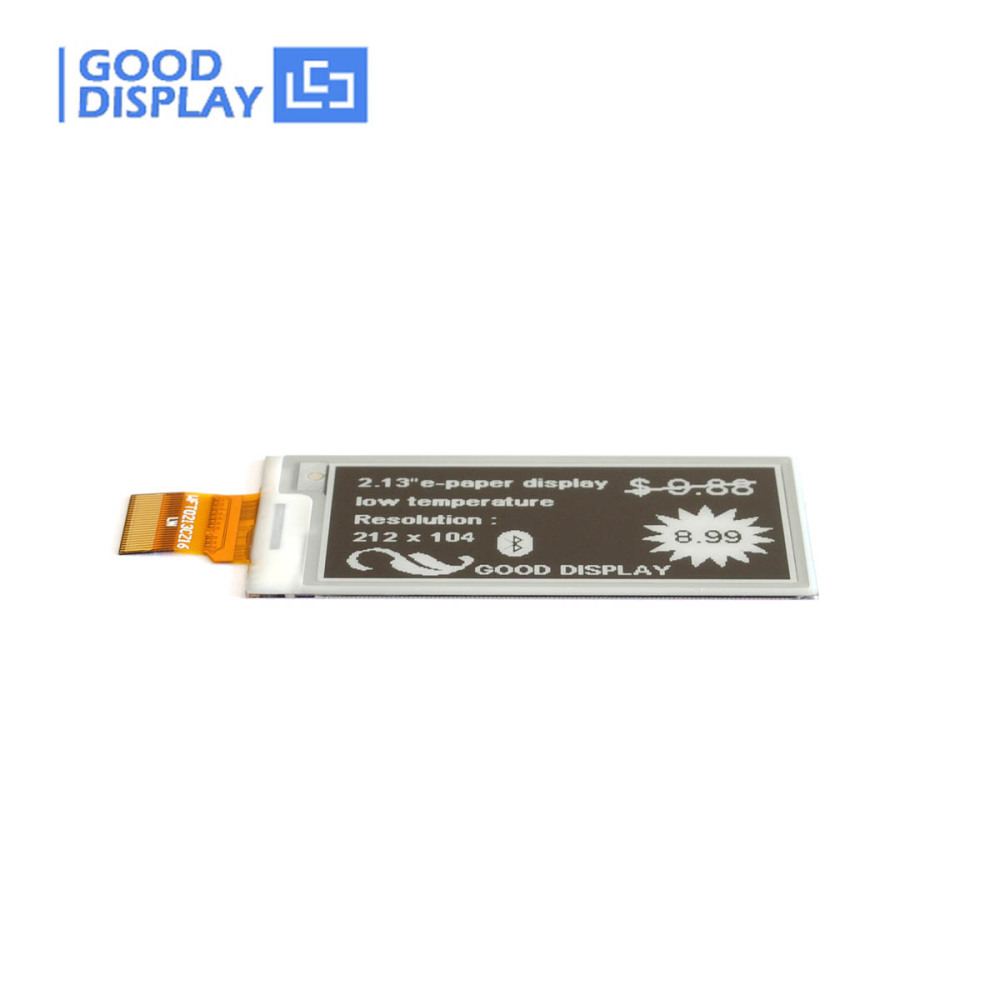

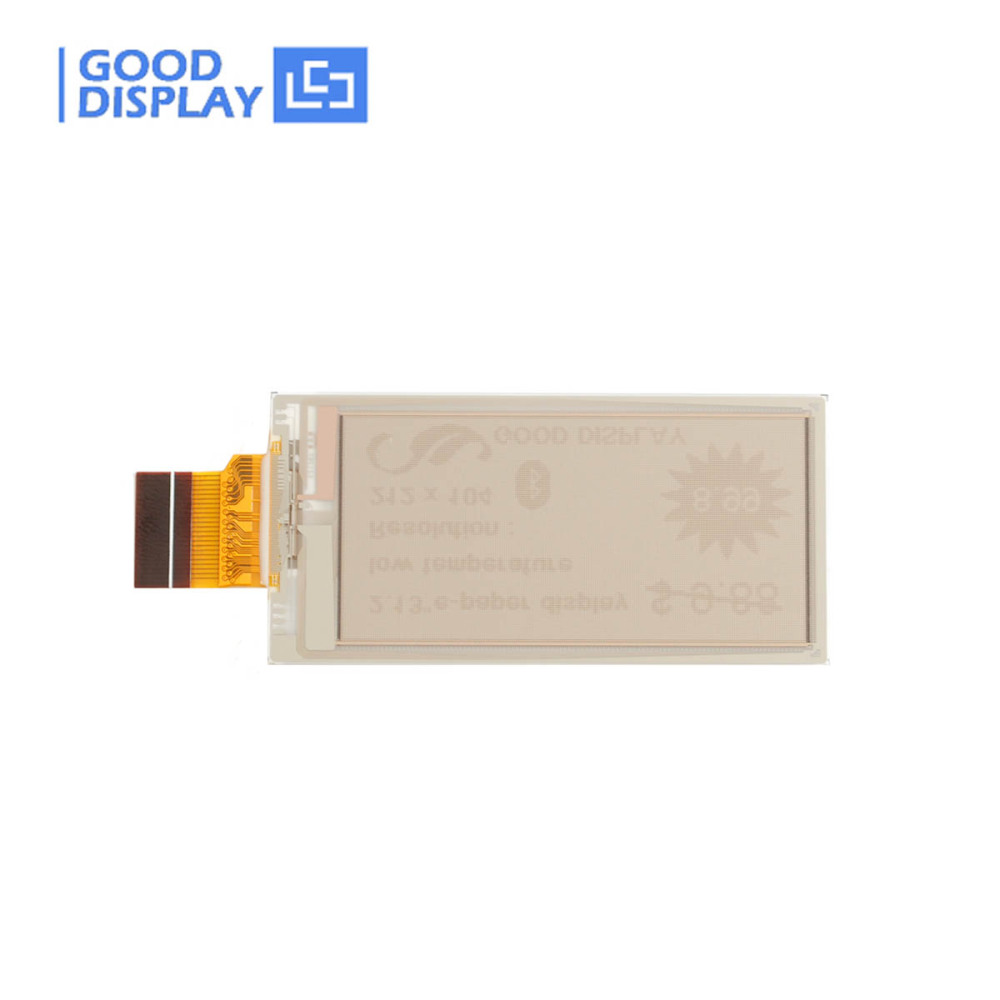

This is a set of development kit with 2.13 inch low temperature -25~10℃ e ink panel with 212x104 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-ink panel GDEW0213V7LT is perfect for low power devices powered by solar or batteries, and it's also suitable for the cold environment.
This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions. And it is added the functions of USB serial port and LED indicator light ect. It also supports being updated by computer directly.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
Use our free e-paper software to prepare your bitmap image for this display.
☆ FEATURE
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● It supports partial refresh, the refresh rate is 0.3s/frame
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Low operating temperature range: -25~10℃ (Normal e-paper display: 0~50℃, Normal color e-paper display: 0℃~40℃).

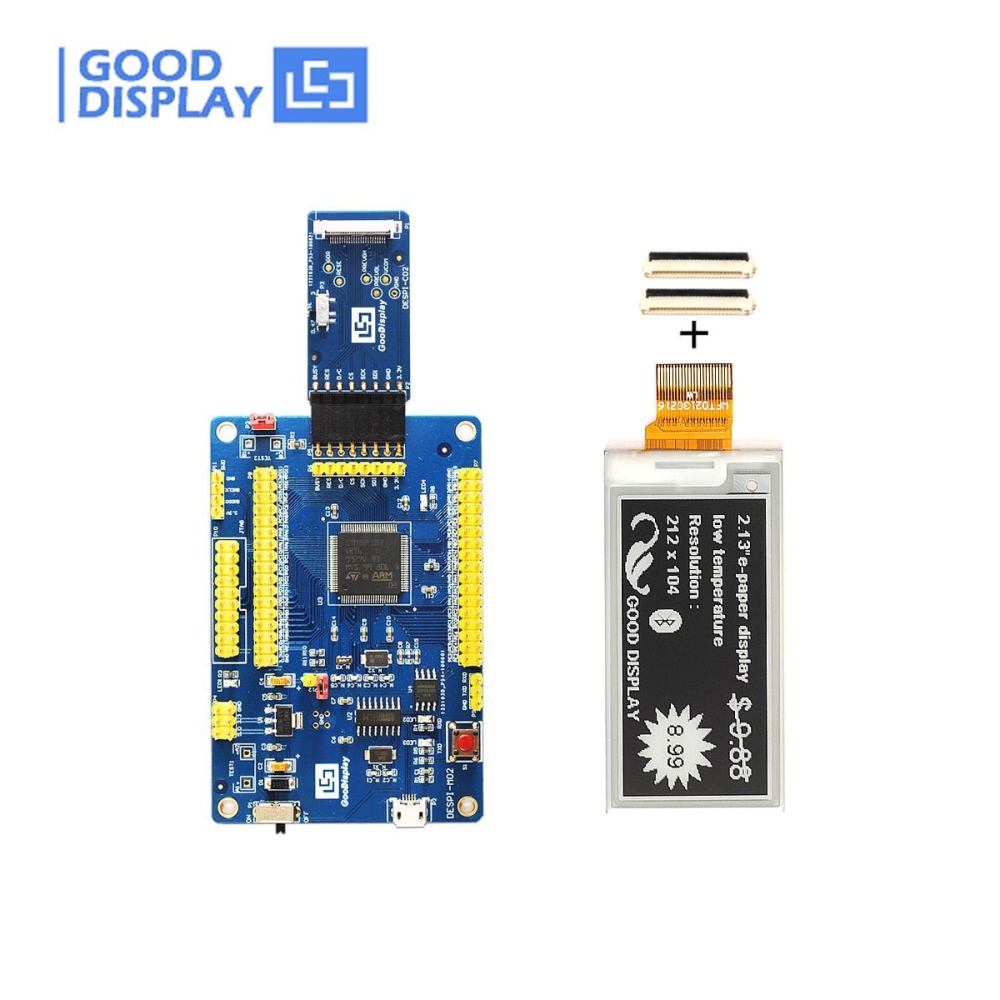

☆ THE ABOVE PRICE INCLUDE
1) 2.13 inch e-paper display Low temperature electronic paper module eink * 1pc
2) FPC Connector * 1pc
3) Driving board DESPI-M02 *1pc
4) Connector board DESPI-C02 *1pc
5) USB port cable *1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEW0213V7LT
|
|
TYPE
|
Dot Matrix
|
|
SIZE
|
2.13 inch
|
|
IC
|
UC8151D
|
|
RESOLUTION
|
212x104
|
|

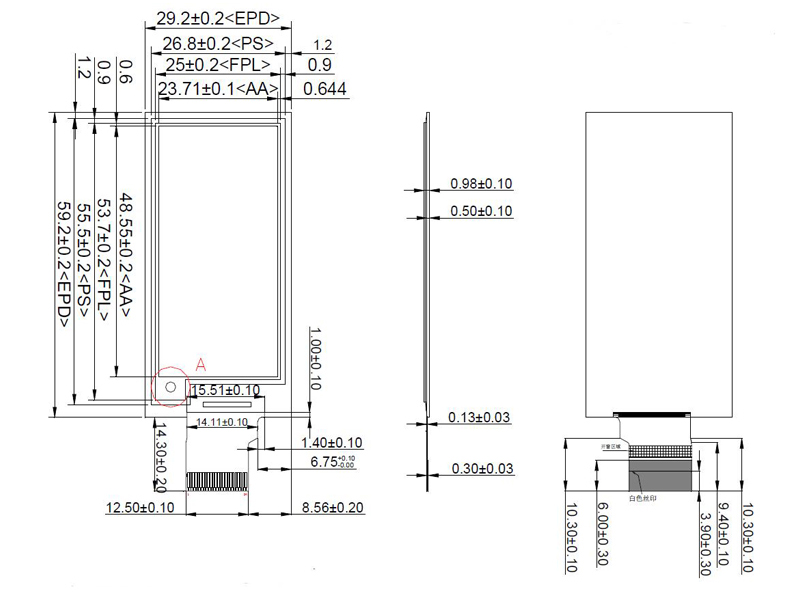

OUTLINE SIZE(mm)
|
59.2x29.2x0.98
|
|
ACTIVE SIZE(mm)
|
48.55x23.71
|
|
PIXEL PITCH(mm)
|
0.229x0.228
|
|
OPERATING TEMP.
|
-25℃~10℃
|
|
STORAGE TEMP.
|
-25℃~70℃
|
|

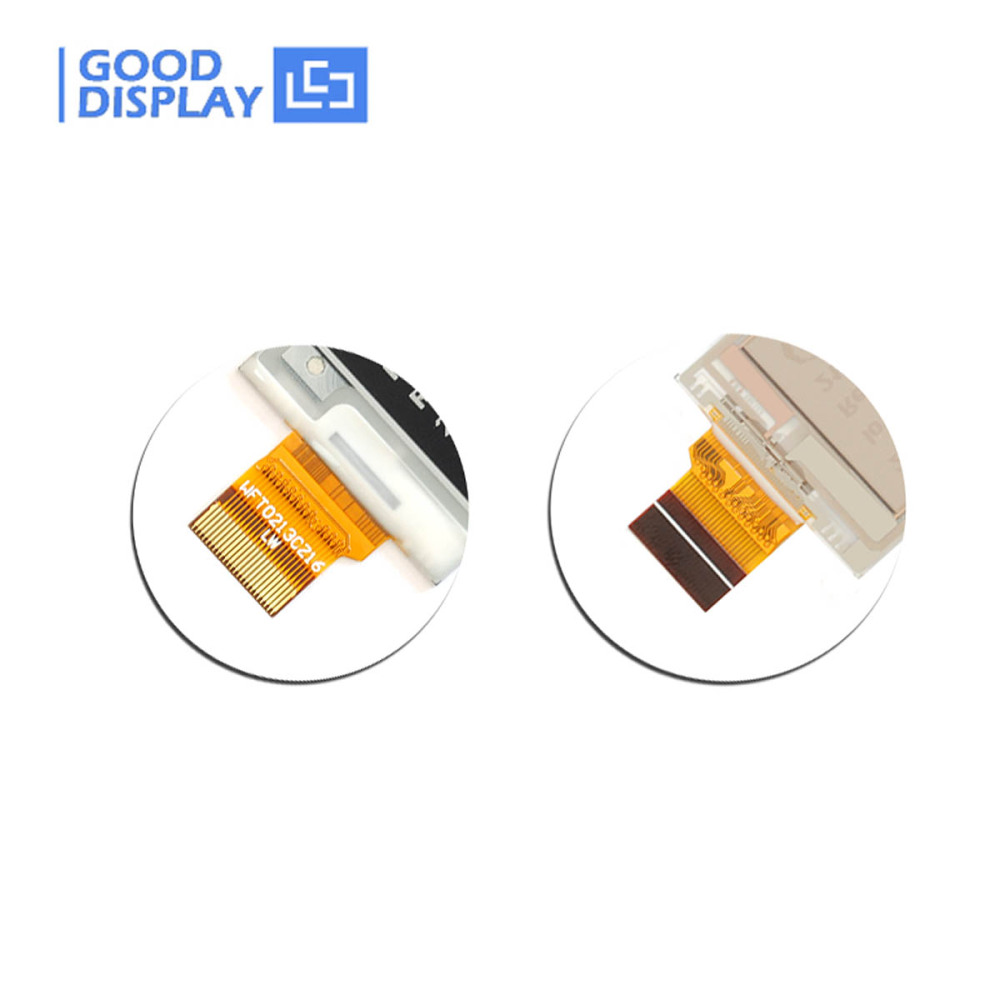

CONNECTOR
|
24 Pin FPC
|
|
MAX GRAYSCALE
|
2
|
|
COLOR
|
Black,White
|
|
INTERFACE
|
SPI
|
|
FULL REFRESH(s)
|
3
|
|
PARTIAL REFRESH TIME(s)
|
0.3
|
|
POWER CONSUMPTION OF THE REFRESH(mW)
|
26.4
|
|
STANDBY POWER CONSUMPTION (mW)
|
0.0165
|
|

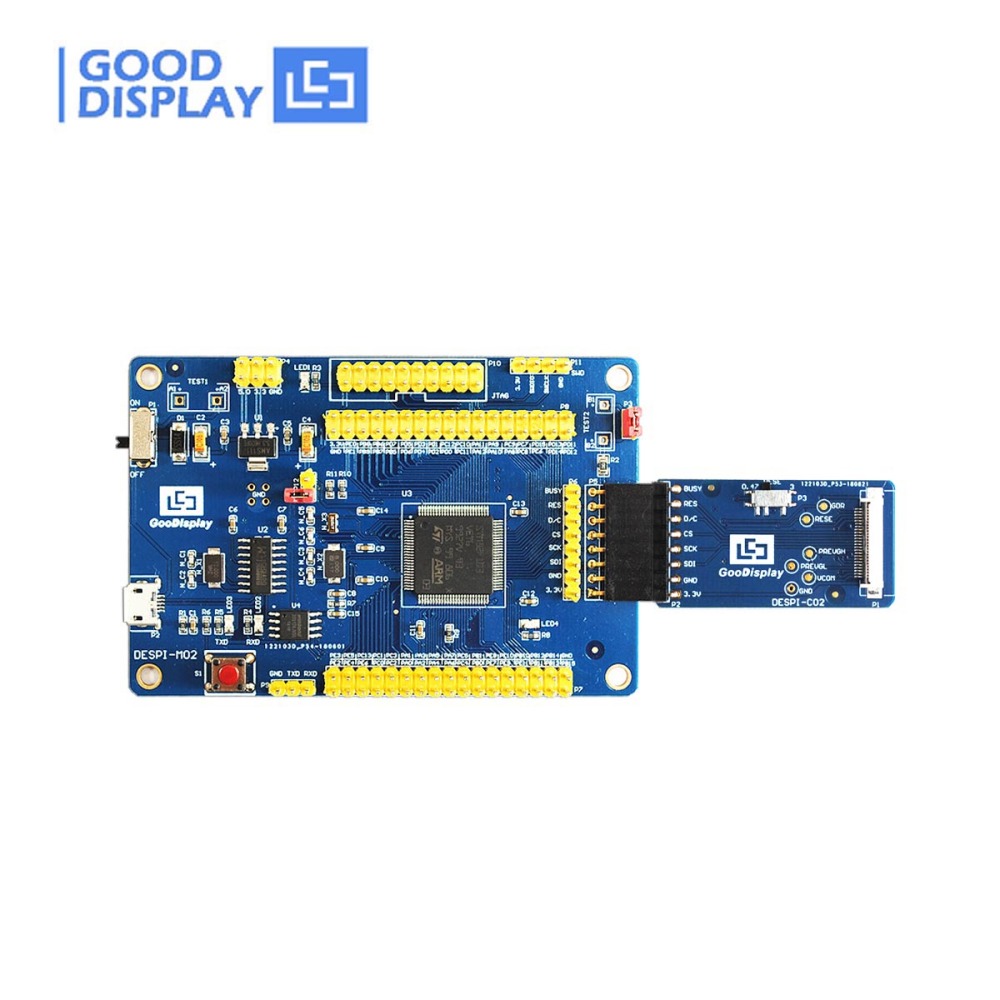

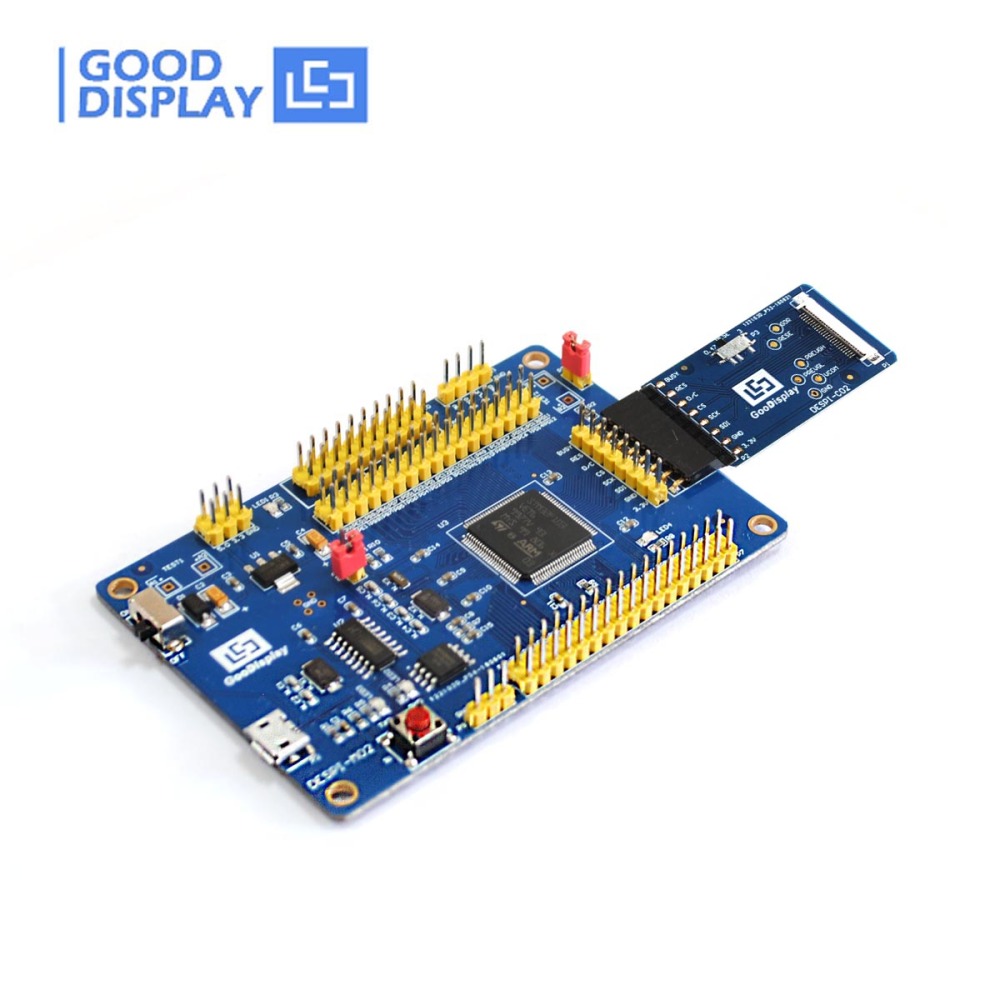

PART NUMBER
|
DESPI
|
|
PLATFORM
|
STM32
|
|
FUNCTION
|
Drive E-paper Display
|
|
OUTSIDE DIMENSION
|
90x60mm(DESPI-M02)
41x22mm(DESPI-C02)
|
|
INTERFACE
|
USB
|
|
POWER INPUT
|
DC5V
|
|
FEATURE
|
Fully and Partial Refresh
|
|
OPERATING TEMP.
|
-20℃~70℃
|
|
RECOMMENDED
|
Keil 4
|
☆ OTHER PRODUCTS
|
Part Number
|
Color
|
IC |
Resolution |
Features
|
Refresh Time |
| GDEW0213T5D |
BW |
UC8151D |
212x104 |
Partial Refresh, 4 Grayscale |
3s |
| GDEW0213T5-FL01 |
BW |
UC8151C |
212x104 |
Used in dark environment |
3s |
| GDEW0213I5F |
BW |
UC8151C |
212x104 |
Flexible, Partial Refresh |
3s |
| GDEY0213B74 |
BW |
SSD1680 |
250x122 |
Partial Refresh |
3s |
| GDEW0213V7LT |
BW |
UC8151D |
212x104 |
-25℃~10℃, Partial Refresh |
3s |
| GDEY0213Z98 |
BWR |
SSD1680 |
250x122 |
Colorful(Red) |
14s |
