This is an 12.48 inch E ink E paper display panel with two FPC interfaces, 4 Grayscale, 1304*984 resolution.
An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each panel.
· 4 Grayscale
· 1304x984 resolution
· Two FPC interface, both have 30 pins
· SPI interface, for connecting with controller boards
· The I2C signal master interface to read built-in temperature sensor.

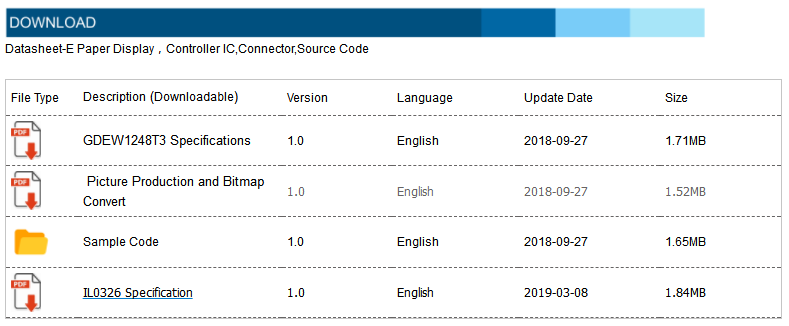

· Come with helpful development resources and manual (STM32 platform )
· Development platform available STM32 / Raspberry Pi
1. 12.48 inch 1304*984 low power consumption epaper display GDEW1248T3 *1pc
Part Number |
GDEW1248T3 |
Type |
Dot Matrix |
Resolution |
1304*984 |
Outline Size(mm) |
261.5*211*1.18 |
Active Size(mm) |
252.976*190.896 |
Pixel Pitch(mm) |
0.194*0.194 |
Operating Temp. |
0~50C |
Storage Temp. |
-25~70C |
Connector |
Two FPC Interface |
Max Grayscale |
4 |
Color |
Black,White |
Power consumption of the refresh(mW) | 26.4 |
Standby power consumption Pc(mW) | 0.71 |
Time of refresh(s) | 6 |
Size |
Part Number |
Color |
Features |
Refresh Time |
12.48inch | GDEW1248T3 |
B/W |
Large size,4 Grayscale |
6S |
GDEW1248Z95 |
B/W/R |
Three colors,Large size |
20S | |
GDEW1248C63 |
B/W/Y |
Three colors,Large size |
30S |
