Name: E-paper display development kit with SPI interface and Micro USB interface
Brand: GOOD DISPLAY
SKU: DESPI
Price: 24.99 USD
Availability: InStock

Your position: Home / EVALUATION KIT for EPD

Description
Reviews

Any questions, just feel free to contact me, my email is: clara@good-display.com

This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions. And it is added the functions of USB serial port and LED indicator light ect. It also supports being updated by computer directly.

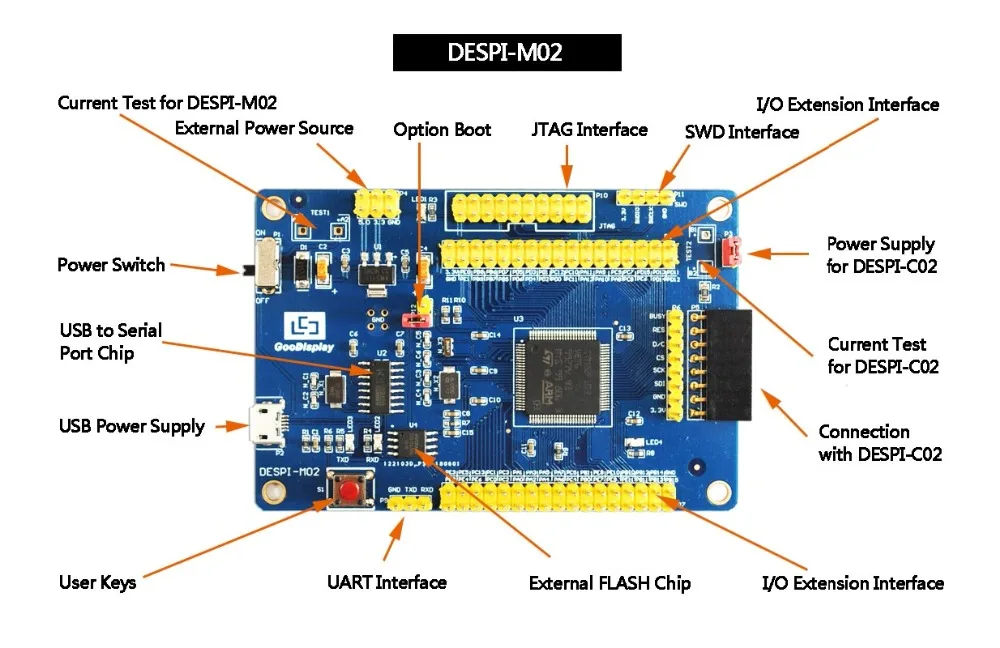

DESPI Develop Kit consists of the development board DESPI-M02 and the pinboard DESPI-C02.

It supports driving Good Display's black-white E-paper Display and three-color (black, white and red/Yellow) E-paper Display.

For SPI interface EPD, power interface is Micro USB interface.

USB serial port and LED indicator light.

Storage capacity increase

Supports being updated by computer directly.

Come with helpful development demo kit with resources and manual (STM32 platform )

1. Driving board DESPI-M02 *1pc

2. Connector board DESPI-C02 *1pc

3. USB port cable *1pc

4.Helpful resources and manual(sent via email or download link) *1pc

Part Number	DESPI
Platform	STM32
Function	Drive E-paper Display
Outside Dimension	90x60mm (DESPI-M02) 41x22mm (DESPI-C02)
Power Interface	USB Interface
Power Input	DC5V
Feature	Fully and Partial refresh
Grey scale Level	Max 16 grey scale
Operating Temp	-20~70℃
Recommended Tool	Keil4
Example Code	Available
Reserved Function	USB to serial port, indicator light 、keys、current detection and so on.

Part Number	DESPI-C02
Platform	STM32
Function	Connection E-paper Display with DESPI-M02
Outside Dimension	41x22mm
Interface	SPI
Power Input	DC3.3V
Feature	Fully and Partial refresh
Operating Temp	-20~70℃

structure

RESE To 0.47 Ω：
1.1.54 inch E-Paper Display: GDEW0154T8,GDEW0154Z17,GDEW0154Z04,GDEW0154C39
2.2.13 inch E-Paper Display:  GDEW0213T5,GDEW0213Z16,GDEW0213I5F,GDEW0213C38,GDEW0213V7LT
3.2.6 inch E-Paper Display: GDEW026T0,GDEW026Z39
4.2.7 inch E-Paper Display:  GDEW027W3  GDEW027C44
5.2.9 inch E-Paper Display:  GDEW029T5,GDEW029Z10,GDEW029I6F
6.3.71 inch E-Paper Display: GDEW0371W7,GDEW0371Z80
7.4.2 inch E-Paper Display:  GDEW042T2,GDEW042Z15,GDEW042C37
8.5.83 inch E-Paper Display:  GDEW0583Z21,GDEW0583C64
9.7.5 inch E-Paper Display:  GDEW075Z09,GDEW075C21

RESE To 3 Ω：
1.1.54 inch E-Paper Display:GDEH0154D67,GDEM0154E97LT
2.2.04 inch E-Paper Display: GDE021A1
3.2.13 inch E-Paper Display: GDEH0213D30LT,GDEH0213B73
4.2.9 inch E-Paper Display: GDEH029A1,GDEH029D56LT
5.5.83 inch E-Paper Display: GDEW0583T7
6.7.5 inch E-Paper Display: GDEW075T8

DEMO does not provide electronic paper screen, the screen must be purchased separately
