☆ INTRODUCTION

Name: e-paper display 1.54 inch 152x152 SPI interface 4 Grayscale eink display partial refresh, GDEW0154T8D
Brand: GOOD DISPLAY
SKU: GDEW0154T8
Price: 5.65 USD
Availability: OutOfStock
Rating: 5 (4 reviews)

This is a 1.54 inch e-paper display 4 Grayscale eink display with 152x152 resolution, SPI interface, and the display is capable to display images with black and white content. It supports 3s full refresh, 0.3s partial refresh and 0.82s fast refresh. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This eink display GDEW0154T8D is perfect for low power devices powered by solar or batteries.

We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please

☆ THE ABOVE PRICE INCLUDE

Package A		+
	*a. 1.54 inch 152x152 SPI interface 4 Grayscale eink display partial refresh, GDEW0154T8D 1pc**		*b. FPC Connector 1pc**

Package B		+		+
	*a. 1.54 inch 152x152 SPI interface 4 Grayscale eink display partial refresh, GDEW0154T8D 1pc**		*b. FPC Connector 1pc**		c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02* 1pc

Package C		+		+		+
Package C	*a. 1.54 inch 152x152 SPI interface 4 Grayscale eink display partial refresh, GDEW0154T8D 2pcs**		b. FPC Connector* 2pcs		c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02)* 1pc		d. USB Cable* 1pc

Package D		+		+		+
Package D	*a. 1.54 inch 152x152 SPI interface 4 Grayscale eink display partial refresh, GDEW0154T8D 2pcs**		b. FPC Connector* 2pcs		C.Arduino E-paper Driving Board Type-C Interface EPD development kit, DEArduino-L(C02)* 1pc		d. USB Cable* 1pc

Package E		+		+		+
Package E	*a. 1.54 inch 152x152 SPI interface 4 Grayscale eink display partial refresh, GDEW0154T8D 2pcs**		b. FPC Connector * 2pcs		C.ESP8266 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP8266-L(C02)* 1pc		d. USB Cable* 1pc

Package F		+		+		+
Package F	*a. 1.54 inch 152x152 SPI interface 4 Grayscale eink display partial refresh, GDEW0154T8D 2pcs**		b. FPC Connector * 2pcs		c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02)* 1pc		d. USB Cable* 1pc

☆ MAIN PARAMETERS

PART NUMBER	GDEW0154T8D
TYPE	Dot Matrix	CONNECTOR	24 Pin FPC
SIZE	1.54 inch	MAX GRAYSCALE	4
IC	UC8151D	COLOR	Black,White
RESOLUTION	152x152	INTERFACE	SPI
OUTLINE SIZE(mm)	31.8x37.32x0.98	FULL REFRESH(s)	3
ACTIVE SIZE(mm)	27.51x27.51	PARTIAL REFRESH TIME(s)	0.3
PIXEL PITCH(mm)	0.181x0.181	TIME OF FAST REFRESH(s)	0.82
OPERATING TEMP.	0℃~50℃	POWER CONSUMPTION OF THE REFRESH(mW)	26.4
STORAGE TEMP.	-25℃~70℃	STANDBY POWER CONSUMPTION (mW)	0.0165

☆ FEATURE

● Support 4 Grayscale

● Fast refresh (0.82s/frame)

● Black and white monochrome is easy to read

● Versatile. Use in portrait or landscape format

● It supports partial refresh, the refresh rate is 0.3s/frame

● Bistable. (Will continue to display with no power source)

● I2C Signal Master Interface to read external temperature sensor

● Development platform available STM32 / Arduino/ Raspberry Pi / ESP8266 / ESP32

☆ DRAWING

☆ MATCHED DEVELOPMENT KIT

● DESPI-C02 (E-ink Display HAT )

● DESPI-L(C02) (STM32 Platform/Universal)

● DEArduino-L(C02) (Arduino Platform)

● ESP8266-L(C02) (WiFi)

● ESP32-L(C02) (WiFi / Bluetooth)

● DESPI-PICO (Rasberry Pi Epaper HAT)

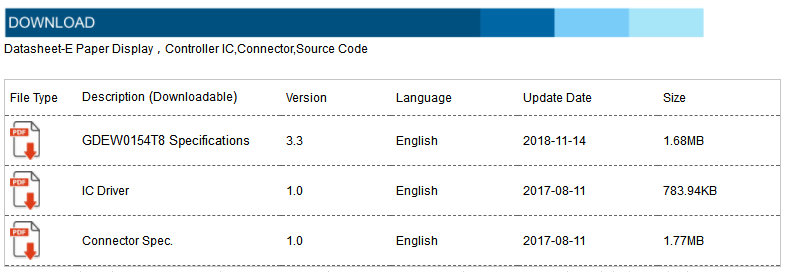

☆ RELATED INFORMATION DOWNLOAD

● GDEW0154T8D Specification

● IC Driver UC8151D

● IC UC8151C to IC UC8151D Instructions

● Picture Production and Bitmap Convert for GDEW0154T8D

● GDEW0154T8D STM32 Sample Code

● GDEW0154T8D ESP32 Sample Code

● GDEW0154T8D ESP8266 Sample Code

● GDEW0154T8D Arduino Sample Code

● GDEW0154T8D Raspberry Pi Pico Sample Code
