E-paper demo kit drive board with multifunction connection adapter board DESPI-L(C03)

DESPI-L(C03)
This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper with provided source code to create more differentiated solutions. Supports black-white and three-color E-paper.
Sold:2
Price:
USD
$25.99
Quantity:
-
+
(98 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION




This Development Kit designed for SPI E-paper Display aims to help users to begin constructing our e-paper display with provided sourc  e code to create more differentiated solutions. It supports driving Good Display's black-white E-paper Display and three-color (black, white and red/Yellow) Good Display ‘s E-paper Display: 1.54'', 2.04'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''.



And it is added the functions of USB serial port and LED indicator light ect. It also supports being updated by computer directly.And the connector board DESPI-C03 adds driving function for touch panel and frontlight.

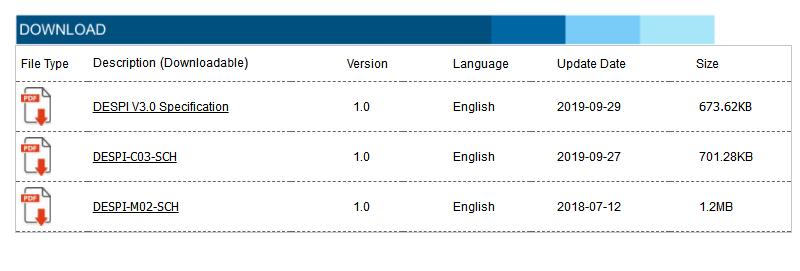

Relevant manual about this product on our official website (www.good-display.com), contact us please.
DEMO does not provide electronic paper screen, the screen must be purchased separately








☆ FEATURE




● For SPI interface EPD, power interface is MicroUSB interface.
● USB serial port and LED indicator light.

● it is added the functions of USB serial port and LED indicator light ect.

● Supports being updated by computer directly.

● Come with helpful development demo kit with resources and manual (STM32 platform )

● The connector board DESPI-C03 adds driving function for touch panel and frontlight.




 THE ABOVE PRICE INCLUDE



1) Driving board DESPI-M02L *1pc
2) Connector board DESPI-C03  *1pc
3) USB port cable *1pc






 MAIN PARAMETERS




PART NUMBER

DESPI-L(C03)

PLATFORM

STM32

FUNCTION

Drive E-paper Display

OUTSIDE DIMENSION

90mmx60mm (DESPI-M02L)
52mmx36mm (DESPI-C03)

POWER INTERFACE

USB Interface

MAIN FUNCTION

EPD driving, touch panel driving and frontlight driving.

SAMPLE CODE

Available (please contact sales)

ADDITIONAL FUNCTION

USB to serial port, indicator light, keys, current detection
and so on.

OPERATING TEMP.

-20~70℃

RECOMMENDED TOOL

Keil4






☆ OTHER E-PAPER DISPLAY BOARD




DEArduino-03 (Arduino Platform)

ESP8266-03 (WiFi)

ESP32-03 (WiFi / Bluetooth)





☆ ABOUT US



Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com








PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI

GDEW0102I4FC

1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0154I9FC 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -10℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ SPI
GDEQ0213B74 2.13'' BW 4 250x122 48.55x23.7046 3 0℃~50℃   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃   SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃   SPI
GDEY029Z94 2.9'' BWR 2 296x128 66.896x29.056 12 0℃~40℃     SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -10℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃   SPI
GDEY037Z03 3.71'' BWR 2 416x240 81.54x47.04 12 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI
