☆ INTRODUCTION
This is a set of EPAPER HAT with 2.7 inch small e-ink display with 264x176 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW027W3 is perfect for low power devices powered by solar or batteries.
This connection board DESPI-C02 used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow)
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ FEATURE
● Support 4 Grayscale
● Black and white monochrome is easy to read
● Versatile. Use in portrait or landscape format
● It supports partial refresh, the refresh rate is 0.3s/frame
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Development platform available STM32 / Arduino/ ESP8266 / ESP32

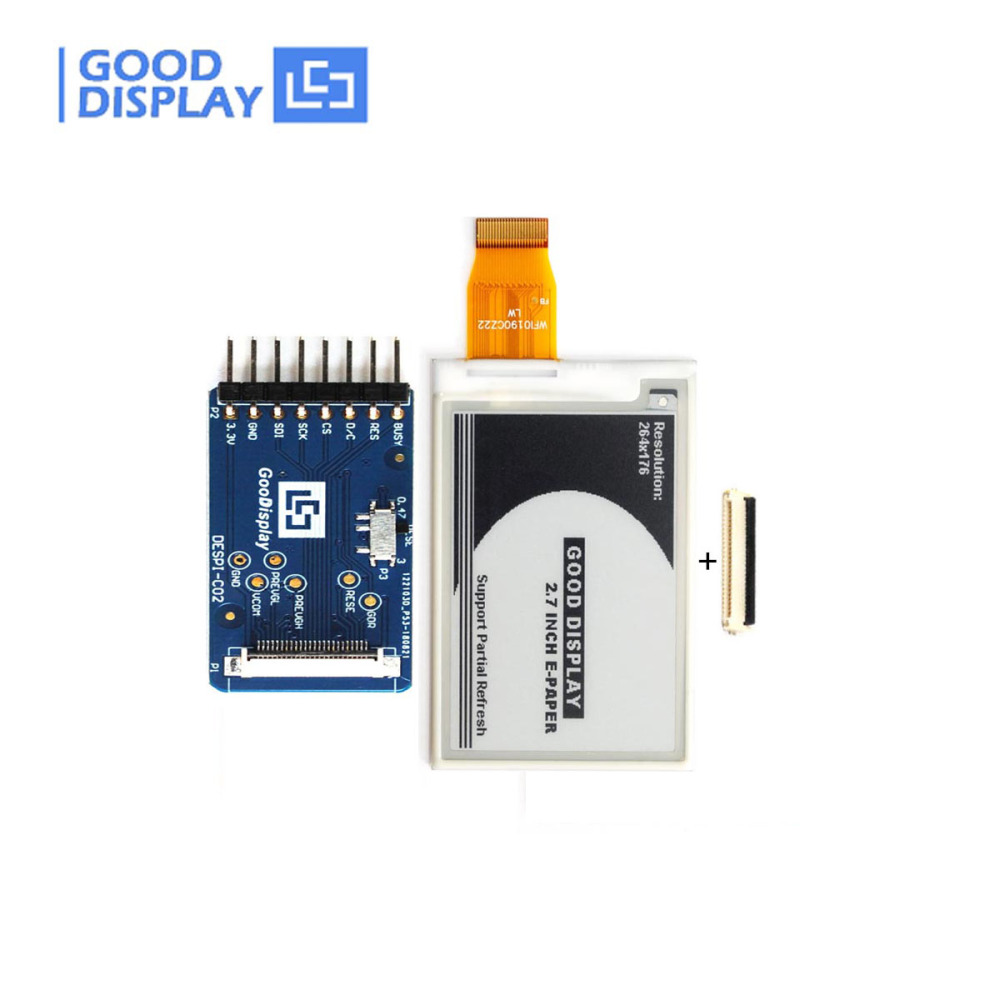

☆ THE ABOVE PRICE INCLUDE
1)2.7inch e ink 4 Grayscale GDEW027W3 *1pc
2)FPC Connector Board DESPI-C02*1pc
3)FPC connector *1pc
☆ MAIN PARAMETERS
|
PART NUMBER
|
GDEW027W3
|
|
TYPE
|
Dot Matrix
|
|
SIZE
|
2.7 inch
|
|
IC
|
EK79652
|
|
RESOLUTION
|
264x176
|
|

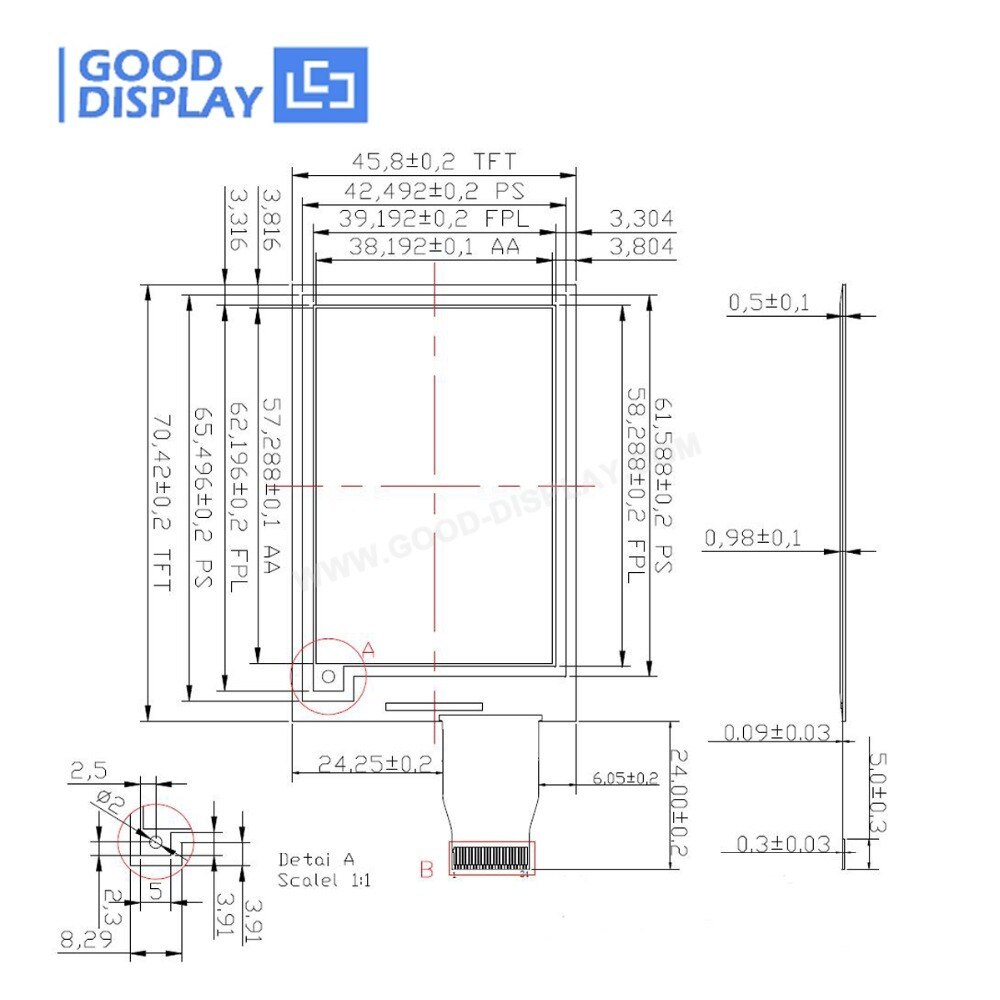

OUTLINE SIZE(mm)
|
70.42x45.8x0.98
|
|
ACTIVE SIZE(mm)
|
57.288x38.192
|
|
PIXEL PITCH(mm)
|
0.217x0.217
|
|
OPERATING TEMP.
|
0℃~50℃
|
|
STORAGE TEMP.
|
-25℃~70℃
|
|
CONNECTOR
|
24 Pin FPC
|
|
MAX GRAYSCALE
|
4
|
|
COLOR
|
Black,White
|
|
INTERFACE
|
SPI
|
|
FULL REFRESH(s)
|
3
|
|
PARTIAL REFRESH TIME(s)
|
0.3
|
|
POWER CONSUMPTION OF THE REFRESH(mW)
|
26.4
|
|
STANDBY POWER CONSUMPTION (mW)
|
0.0165
|
|
PART NUMBER
|
DESPI-C02
|
|
PLATFORM
|
STM32
|
|
FUNCTION
|
Connection E-paper Display with Drive Board
|
|
OUTSIDE DIMENSION
|
41x22mm
|
|
INTERFACE
|
SPI
|
|
POWER INPUT
|
DC3.3V
|
|
FEATURE
|
Fully and Partial Refresh
|
|
OPERATING TEMP.
|
-20℃~70℃
|
☆ OTHER PRODUCTS
|
Part Number
|
Color
|
IC |
Resolution
|
Features
|
Refresh Time
|
|
GDEW027W3
|
B/W
|
EK79652 |
264x176
|
Partial refresh, 4 Grayscale |
3s
|
|
GDEW027W3-T
|
B/W |
EK79652 |
264x176
|
Partial refresh, touch screen, 4 Grayscale |
3s
|
