HAT Connection board for 12.48 inch large e-paper e-ink display demo DESPI-C1248

DESPI-C1248
This HAT connection board DESPI-C1248 is aim to help  users to learn how to use the 12.48 inch E-paper Display easier, and it is used for connecting Good Display's 12.48 inch e-paper display with driving board.
Sold:25
Price:
USD
$9.78
Quantity:
-
+
(80 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Library
  • Selection Guide
  • Reviews



☆ INTRODUCTION

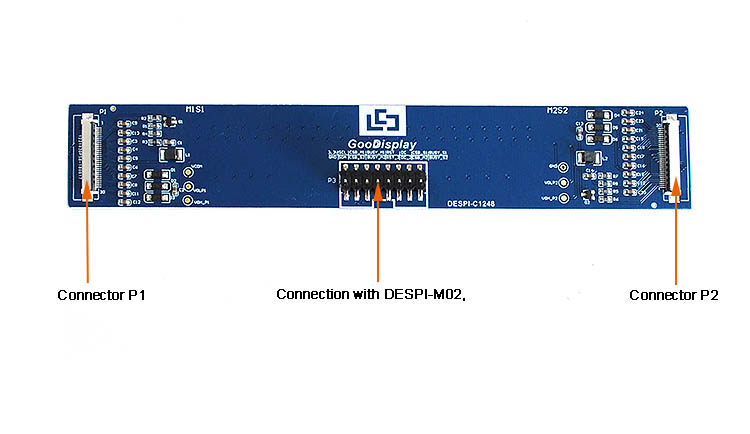

This connection board DESPI-C1248 is aim to help users to learn how to use the 12.48 inch E-paper Display easier, and it is used for connecting Good Display's 12.48 inch e-paper display with driving board.

Good Display's development kit for 12.48 inch e-paper display is DESPI-1248, which consists of the development board DESPI-M02 and the pinboard DESPI-C1248. It aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions.


Relevant manual about this product on our official website (www.good-display.com), contact us please.





☆ THE ABOVE PRICE INCLUDE


1)  Connector board DESPI-C1248 * 1pc
2)  Connecting cable * 1pc







☆ MAIN PARAMETERS



PART NUMBER DESPI-C1248
PLATFORM STM32
FUNCTION Connection 12.48 inch E-paper Display with DESPI-M02
OUTSIDE DIMENSION 150.2mmx26mm
INTERFACE SPI
POWER INPUT DC3.3V
OPERATING TEMP. -20~70℃



☆ DRIVE BOARD



● DESPI-1248 (STM32 Platform/Universal)








☆ ABOUT US


Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!!
My email is: info@good-display.com





☆ SPECIFICATION DOWNLOAD



1)  DESPI-C1248 Specification
2)  DESPI-C1248-SCH



PART NUMBER SIZE COLOR GREY SCALE RESOLUTION ACTIVE SIZE(mm) FULL REFRESH TIME (S) OPERATING TEMP. PARTIAL REFRESH FLEXIBLE INTERFACE
GDEW0102T4 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ √   SPI
GDEW0102I3F 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ √ √ SPI

GDEW0102I4FC

 1.02'' BW 2 128x80 21.76x14 3 0℃~50℃ √ √ SPI
GDEW0154M10 1.54'' BW 2 152x152 27.512x27.512 3 -10℃~60℃     SPI
GDEH0154D67 1.54'' BW 4 200x200 27x27 2 0℃~50℃ √   SPI
GDEW0154T8D 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ √   SPI
GDEH0154Z90 1.54'' BWR 2 200x200 27x27 15 0℃~40℃     SPI
GDEW0154I9FC 1.54'' BW 4 152x152 27.51x27.51 3 0℃~50℃ √ √ SPI
GDEW0213M21 2.13'' BW 2 212x104 48.548x23.712 3 -10℃~60℃     SPI
GDEW0213I5FD 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √ √ SPI
GDEQ0213B74 2.13'' BW 4 250x122 48.55x23.7046 3 0℃~50℃ √   SPI
GDEY0213Z98 2.13'' BWR 2 250x122 48.55x23.7046 14 0℃~40℃     SPI
GDEW0213T5D 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √   SPI
GDEW0213T5D-FL01(With Frontlight) 2.13'' BW 4 212x104 48.55x23.71 3 0℃~50℃ √   SPI
GDEW026T0D 2.6'' BW 4 296x152 60.09x30.7 3 0℃~50℃ √   SPI
GDEY0266T90 2.66'' BW 4 296x152 60.088x30.704 3 0℃~50℃ √   SPI
GDEW027W3 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃ √   SPI
GDEW027W3-T(With Touch Panel) 2.7'' BW 4 264x176 57.288x38.192 3 0℃~50℃ √   SPI
GDEH029Z13 2.9'' BWR 2 296x128 66.9x29.06 15 0℃~40℃     SPI
GDEY029T94 2.9'' BW 4 296x128 66.896x29.056 3 0℃~50℃ √   SPI
GDEY029Z94 2.9'' BWR 2 296x128 66.896x29.056 12 0℃~40℃     SPI
GDEW029M06 2.9'' BW 2 296x128 66.896x29.056 3 -10℃~60℃     SPI
GDEW029I6FD 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √ √ SPI
GDEW029T5D 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √   SPI
GDEW029T5D-FL02(With Frontlight) 2.9'' BW 4 296x128 66.9x29.06 3 0℃~50℃ √   SPI
GDEY037Z03 3.71'' BWR 2 416x240 81.54x47.04 12 0℃~40℃     SPI
GDEW0371W7 3.71'' BW 2 416x240 81.536x47.04 4 0℃~50℃     SPI
