HAT Connection board demo kit for 1.02 inch e-ink display

DESPI-C102
This HAT connection board DESPI-C102 is aim to help  users to learn how to use the 1.02 inch E-paper Display easier, and it is used for connecting Good Display's 1.02 inch e-paper display with driving board.
2 Review(s) Sold:26
Have a question?
Price:
USD
$6.99
Quantity:
-
+
(46 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Inquiry Now
Add to Favorite Items
  • Description
  • Reviews(2)


Supporting 1.02 inch e-paper display




This connection board DESPI-C102 is aim to help users to learn how to use the 1.02 inch E-paper Display easier, and it is used for connecting Good Display's 1.02 inch e-paper display with driving board.



Good Display's development kit for 1.02 inch e-paper display is DESPI-C102, which consists of the development board DESPI-M02 and the pinboard DESPI-C102.  It aims to help users to begin constructing our e-paper display with provided source code to create more differentiated solutions.









Special Features


    Our product boasts distinctive features that set it apart from the competition
      ●  Compact Precision: With its 33.8x22.2mm form factor, this adapter board delivers powerful functionality in a minimal space, ideal for compact and portable e-paper projects.
  ●  Built-in Boost Detection: The reserved boost detection points simplify troubleshooting, ensuring reliable performance and easy fault diagnosis for your custom e-paper solutions.
  ●  Universal Compatibility: Designed for versatility, it seamlessly pairs with popular development platforms like Arduino, ESP32, and ESP8266, streamlining integration into your existing projects.









Technical Details


    Please refer to the product drawings for detailed dimensions
1.02-








Product Specifications


    Please refer to the product specifications for more details

PART NUMBER  DESPI-C102 SCREEN INTERFACE  30PIN 0.5mm
PLATFORM  STM32、Arduino OUTLINE SIZE  33.8x22.2mm
KEY COMPONENTS  SI1308EDL, MBR0530 DIP SWITCH  RESE resistor selection (3Ω, 0.47Ω)
COMMUNICATION INTERFACE  SPI OPERATING VOLTAGE  3.3V
OPERATING TEMPERATURE  -20~70℃ SAMPLE CODE   (please contact sales)
MAIN FUNCTION  Provide driving voltage for e-paper;
 Provide interface for e-paper and motherboard;
 Help users operate e-paper quickly.
ADDITIONAL FUNCTION  Measurement of e-paper power consumption;
 Test of e-paper working condition.








Compatible 1.02 inch E-INK















GDEW0102T4(30PIN)

GDEW0102I4FC(30PIN)

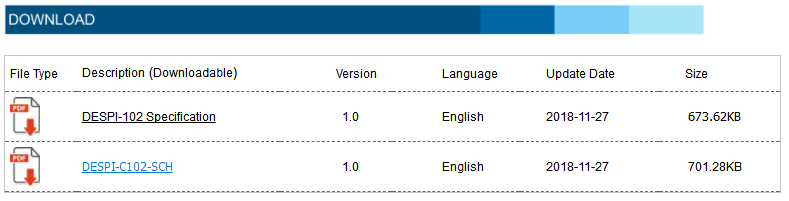

Related Information Download

Click on the subheadings below to download

  ● DESPI-C102 Specification
  ● DESPI-C102-SCH
