2.13 inch china color yellow e-paper 3-Colors e-ink screen module GDEW0213C38

GDEW0213C38

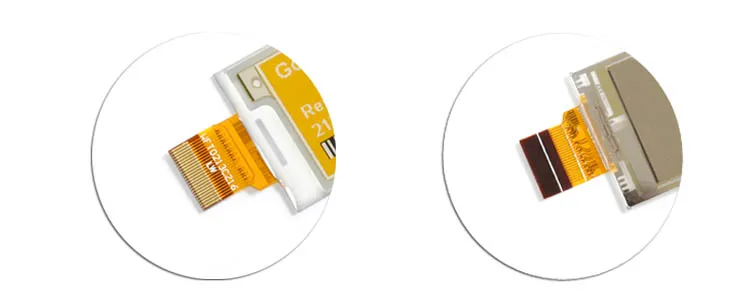

This is an E ink E paper display panel, 2.13 inch, 212*104 resolution, square, 24 pins FPC connection,optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports yellow, black, and
Sold:1
Price:
USD
$5.96
$7.44
(20% OFF)
Wholesale:
100-499
$4.15
500+
$3.86
    Please select the information you wantX
  • 规格:
    EPD
    EPD with adapter board
    EPD with demo kit
Quantity:
-
+
(0 available)
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews

Any questions, please feel free to contact me, my email is: clara@good-display.com

This is an E ink E paper display panel, 2.13 inch, 212*104 resolution, square, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform, supports yellow, black, and white three-color. It's IC Driver is UC8151C.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW0213C38 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products.

· Three colors, black, white and yellow.
· 212x104 resolution

· The I2C signal master interface to read built-in temperature sensor.
· Comes with helpful development resources and manual (STM32 platform )
· Development platform available
STM32 / Arduino Raspberry Pi / ESP8266 / ESP32

1)212x104 Resolution GDEW0213C38 *1pc
2) Matched FPC Connector*1pc
3) Example code and Manual*1pc.(Please advise email ID along with order,so that we can send them.)
If you want to buy this display with demo kit together, click here:
http://upaj177.myueeshop.com/usb-port-programmable-demo-kit-despi-with-213inch-3-color-e-ink-display-p0152.html

If you want to buy this display with connect board, click here:
http://upaj177.myueeshop.com/213-inch-eink-board-e-paper-display-p0138.html

Part Number

GDEW0213C38

Type

Dot Matrix

IC UC8151C

Resolution

212*104

Outline Size(mm)

59.2*29.2*0.98

Actve Size(mm)

48.55*23.71

Pixel Pitch(mm)

0.229*0.228

Operating Temp.

0℃~+40℃

Storage Temp.

-25℃~+60℃

Connector

24 PIN,  Pitch: 0.5mm

Max Grayscale

2

Color

Black, White and Yellow

Power consumption of the refresh(mW) 26.4
Standby power consumption Pc(mW) 0.0165
Time of refresh(s) 18



Part Number Color Resolution

Feature

Full refresh time

GDEH0213B72 B/W 250x122 Partial refresh 3s
GDEW0213M21 B/W 212x104 DES,wide working temperature range: -20℃~60℃, can be used in sunlight and cold environments 3s
GDEW0213I5F B/W 212x104 Flexible, Partial refresh, 4 Grayscale 3s
GDEH0213D30LT B/W 212x104 Low temperature 3s
GDEW0213V7LT B/W 212x104 Low temperature 3s
GDEW0213C38 B/W/Y 212x104 Three colors 18s
GDEW0213T5 B/W 212x104 Fast refesh, Partial refresh, 4 Grayscale 0.82s(fast refresh)
GDEM0213U23 B/W/R 250x122 Three colors --
GDEM0213D23 B/W 250x122 SPI interface --
GDEH0213Z98 B/W/R 250x122 Three colors 13s
GDEH0213Z19 B/W/R 212x104 Three colors 15s



https://zh-tw.buyepaper.com/e-paper-display-development-kit-with-spi-interface-and-micro-usb-interface-p0031-p0031.html
demo-      27.78USD
Please feel free to contact us for any questions, on trademanager, or send message to me. It's our pleasure to serve you! We appreciate your business!! my email is: clara@good-display.com
