2.13 inch Tri-color red eink display SPI interface epaper screen module GDEM0213U23

GDEM0213U23
This is an E ink E paper display panel, 2.13 inch, 250*122 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black, white and red.
Price:
USD
$5.50
  • Product:
    EPD
    EPD with adapter board DESPI-C02
    EPD with demo kit DESPI-L(C02)
    EPD with demo kit DEArduino-L(C02)
    EPD with demo kit ESP8266-L(C02)
    EPD with demo kit ESP32-L(C02)
Quantity:
-
+
(1074 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Selection Guide
  • Selection Guide (Above 4.2 inch)
  • Reviews(1)



☆ INTRODUCTION




This is a 2.13 inch e-paper screen with 250x122 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEM0213U23 is perfect for low power devices powered by solar or batteries.



We provide the E-Ink Adapter Board for you to connect the E-paper Display.


Relevant manual about this product , contact us please.

You can refer to the following link for the procedures and instructions of automatic e-paper display bitmap conversion: ImageToEpd. Also you could use our free e-paper software to prepare your bitmap image for this display, or make the picture on our bitmap conversion website: Image to Array



☆ THE ABOVE PRICE INCLUDE



1) 2.13 inch Tri-color red eink display SPI interface epaper screen module GDEM0213U23 * 1pc
2) FPC Connector * 1pc



 MAIN PARAMETERS




PART NUMBER

GDEM0213U23



TYPE

Dot Matrix

OPRATING TEMP. 0℃~25℃

RESOLUTION

250x122

STORAGE TEMP. -25℃~70℃

OUTLINE SIZE(mm)

29.2x59.2x1.05

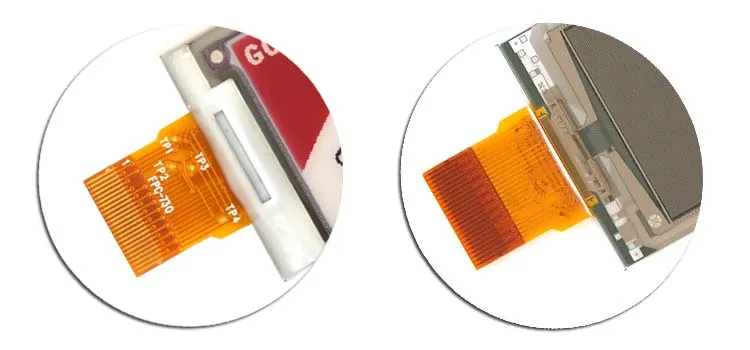

CONNECTOR 24 Pin FPC

ACTIVE SIZE(mm)

23.67x48.50

MAX GRAYSCALE 2

PIXEL PITCH(mm)

0.194x0.194

COLOR Black,White,Red



 FEATURE




●  Black and white monochrome is easy to read

●  Versatile. Use in portrait or landscape format

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor

●  Development platform available STM32 / ArduinoRaspberry Pi / ESP8266 / ESP32


☆ MATCHED DEVELOPMENT KIT




● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)

● DEArduino-L(C02) (Arduino Platform)

● ESP8266-L(C02) (WiFi)

● ESP32-L(C02) (WiFi / Bluetooth)

● DESPI-C03 (Rasberry Pi Epaper HAT)


☆ WE ALSO SUGGEST...




Fast Refresh 1.5s 2.13 inch 250x122 Raspberry Pi EPD supports Electronic Epaper price tag, GDEY0213B74

2.13 inch E-Paper Eink Display SSD1680Z Backlit Electronic Paper Screen, GDEY0213B74-FL01

2.13 inch UC8151D e-paper display flexible ultra-thin partial refresh 4 Grayscale eink screen module GDEW0213I5FD

2.13 inch color eink 250x122 HD raspberry pi e-paper display module, GDEY0213Z98

E-ink Display 2.13 Epaper Partial Refresh SPI HDMI 250x122 EPD Screen, GDEQ0213B74

2.13 inch e-ink display black and white 4 Grayscale electronic paper screen partial refresh e-paper GDEW0213T5D







PART NUMBER SIZE COLOR RESOLUTION ACTIVE SIZE(mm) FULL UPDATE(S) OPERATING TEMP. PARTIAL UPDATE FLEXIBLE
GDEW0097T50 0.97'' BW 184x88 22.264x10.648 4 0℃~50℃
GDEW0097C50 0.97'' BWY 184x88 22.264x10.648 22 0℃~40℃
GDEW0102T4 1.02'' BW 128x80 21.76x14 3 0℃~50℃
GDEW0102I3F 1.02'' BW 128x80 21.76x14 3 0℃~50℃

GDEW0102I4FC

1.02''

BW

128x80

21.76x14

3

0℃~50℃

GDEW0154M10 1.54'' BW 152x152 27.512x27.512 3 -10℃~60℃
GDEY0154D67 1.54'' BW 200x200 27x27 2 0℃~50℃
GDEW0154T8D 1.54'' BW 152x152 27.51x27.51 3 0℃~50℃
GDEY0154Z90 1.54'' BWR 200x200 27x27 16 0℃~40℃
GDEW0154I9FC 1.54'' BW 152x152 27.51x27.51 3 0℃~50℃
GDEW0213I5FD 2.13'' BW 212x104 48.55x23.71 3 0℃~50℃
GDEY0213B74 2.13'' BW 250x122 48.55x23.7046 3 0℃~50℃
GDEY0213Z98 2.13'' BWR 250x122 48.55x23.7046 14 0℃~40℃
GDEW0213T5D 2.13'' BW 212x104 48.55x23.71 3 0℃~50℃
GDEW026T0D 2.6'' BW 296x152 60.09x30.7 3 0℃~50℃
GDEY0266T90 2.66'' BW 296x152 60.088x30.704 3 0℃~50℃
GDEY0266Z90 2.66'' BWR 296x152 60.088x30.704 12 0℃~40℃
GDEY027T91 2.7'' BW 264x176 57.29x38.19 3 0℃~50℃
GDEY029T94 2.9'' BW 296x128 66.896x29.056 3 0℃~50℃
GDEY029Z94 2.9'' BWR 296x128 66.896x29.056 12 0℃~40℃
GDEW029I6FD 2.9'' BW 296x128 66.9x29.06 3 0℃~50℃
GDEQ031T10 3.1'' BW 320x240 62.72x47.04 3 0℃~50℃
GDEY037Z03 3.71'' BWR 416x240 81.54x47.04 12 0℃~40℃
GDEY037T03 3.71'' BW 416x240 81.54x47.04 3 0℃~50℃

PART NUMBER SIZE COLOR RESOLUTION ACTIVE SIZE(mm) FULL UPDATE(S) OPERATING TEMP. PARTIAL UPDATE FLEXIBLE
GDEW042C37 4.2'' BWY 400x300 84.8x63.6 28 0℃~40℃
GDEW042T2 4.2'' BW 400x300 84.8x63.6 3 0℃~50℃
GDEY042T91 4.2'' BW 400x300 84.8x63.6 3 0℃~50℃
GDEQ042Z21 4.2'' BWR 400x300 84.8x63.6 19 0℃~40℃
GDEY0579T93 5.79'' BW 792x272 139.00×47.74 3 0℃~50℃
GDEY0579Z93 5.79'' BWR 792x272 139.00×47.74 20 0℃~40℃
GDEW0583C64 5.83'' BWY 600x448 118.80x88.26 25 0℃~40℃
GDEY0583T8 5.83'' BW 648x480 118.78x88.22 3 0℃~50℃
GDEW0583Z83 5.83'' BWR 648x480 119.232x88.32 12 0℃~40℃
GDEY075T7 7.5'' BW 800x480 163.2x97.72 3 0℃~50℃
GDEY075Z08 7.5'' BWR 800x480 163.2x97.72 12 0℃~40℃
GDEP097TC2

9.7''

BW

1200x825

202.8x139.425

1

0℃~50℃



GDEQ102T90 10.2'' BW 960x640 215.52x143.68 4 0℃~50℃
GDEQ102Z90 10.2'' BWR 960x640 215.52x143.68 4 0℃~50℃
GDEH116T91 11.6'' BW 960x640 244.512x163.008 5 0℃~50℃
GDEH116Z91 11.6'' BWR 960x640 244.512x163.008 30 0℃~35℃
GDEY1248Z51 12.48'' BWR 1304x984 252.98x190.90 25 0℃~40℃
GDEP133UT3 13.3'' BW 1600x1200 270.4x202.8 1 -15℃~65℃
