2.13 inch e-paper display partial refresh 4 Grayscale with connector demo board

GDEW0213T5+DESPI-C02

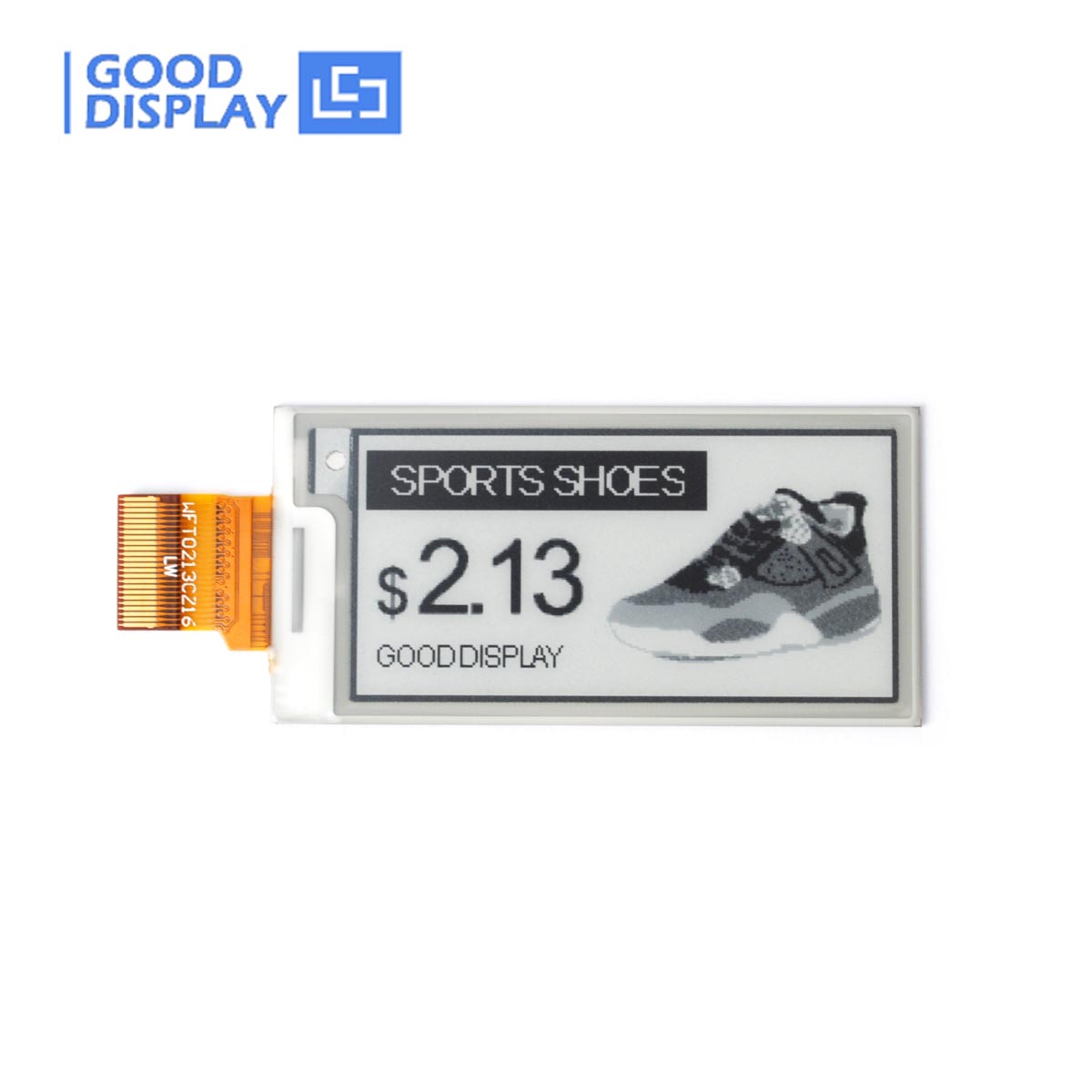

This is an E ink E paper display panel, 2.13 inch, 212*104 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, 4 Grayscale,  supports black and white.
Price:
USD
$12.78
    Please select the information you wantX
Quantity:
-
+
(199 available)
  • Description
  • Reviews

Any questions, please feel free to contact me, my email is: clara@good-display.com

General Description

This is a set of demo kit with a 2.13 inch 212x104 e-ink 4 Grayscale e-paper display panel and a connection board DESPI-C02 which aims to help users to learn how to use the e-paper display easier. It communicates via SPI interface and IC driver.

This connection board DESPI-C02 used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow) : 1.54'', 2.04'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''.

Feature
Keep displaying the last content when power down.
Reflect type, sunlight readable.
4 Grayscale
Ultra low power consumption, basically power is only required for refreshing.
SPI interface, for connecting with controller boards
Come with helpful development resources and manual (STM32 platform )

The above price inclundes
1. 2.13 inch 212x104  e-paper display GDEW0213T5*1pc
2. Matched FPC Connector*1pc
3. Connector board DESPI-C02  *1pc
4. Helpful resources and manual(sent via email or download link) *1pc
If you only want to buy this e-paper display, click here:
http://upaj177.myueeshop.com/213-inch-e-ink-display-black-and-white-electronic-paper-screen-partial-refresh-e-paper-p0045.html
Main Parameters

Part Number

GDEW0213T5

Type

Dot Matrix

Resolution

212*104

Outline Size(mm)

59.2*29.2*0.98

Active Size(mm)

48.55*23.71

Pixel Pitch(mm)

0.229*0.228

Operating Temp.

0~50C

Storage Temp.

-25~70C

Connector

24 Pin FPC, Pitch:0.5mm

Max Grayscale

4

Color

Black,White

Part Number

DESPI-C02

Platform

STM32

Function

Connection E-paper Display with DESPI-M02

Outside Dimension

41x22mm

Interface

SPI

Power Input

DC3.3V

Feature

Fully and Partial refresh

Operating Temp

-20~70℃

Related Products
Part Number Color Resolution

Feature

Refresh time

GDEH0213B73 B/W 250x122 Partial refresh 1s
GDEW0213I5F B/W 212x104 Flexible, Partial refresh 3s
GDEH0213D30LT B/W 212x104 Low temperature --
GDEW0213V7LT B/W 212x104 Low temperature 3s
GDEW0213Z16 B/W/R 212x104 Three colors 16s
GDEW0213C38 B/W/Y 212x104 Three colors 18s
GDEW0213T5 B/W 212x104 Partial refresh, 4 Grayscale 3s
GDEM0213U23 B/W/R 250x122 Three colors --
GDEM0213D23 B/W 250x122 SPI interface --
Matched Demo Kit (Highly Recommend)
https://zh-tw.buyepaper.com/e-paper-display-development-kit-with-spi-interface-and-micro-usb-interface-p0031-p0031.html
demo-27.78USD



Specification download
http://www.e-paper-display.com/products_detail/productId=309.html
