1.02 inch Mini flexible e-ink display small epaper screen module buy GDEW0102I3F

GDEW0102I3F
This is the 1.02 inch mini flexible E ink small Epaper display panel with 128*80 resolution, 30 pins FPC connection, SPI interface and it supports black and white. Ultra-thin, not fragile.
Sold:64
Price:
USD
$5.57
Wholesale:
100-499
$3.85
500+
$3.57
    Please select the information you wantX
  • 规格:
    EPD
    EPD with adapter board
    EPD with demo kit
Quantity:
-
+
(273 available)
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews

Any questions, just feel free to contact me, my email is: info@good-display.com




☆ INTRODUCTION



This is a 1.02 inch flexible e-ink epaper display use the flexible substrate as base plate, with 128x80 resolution, SPI interface, the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEW0102I3F is perfect for low power devices powered by solar or batteries.



We could provide front light, touch screen and other accessories for you.


Relevant manual about this product on our official website (www.good-display.com), contact us please.


Use our free e-paper software to prepare your bitmap image for this display.



 FEATURE




●  Black and white monochrome is easy to read

●  Versatile. Use in portrait or landscape format

●  It supports small bending because its flexible feature

●  It supports partial refresh, the refresh rate is 0.3s/frame

●  Bistable. (Will continue to display with no power source)

●  I2C Signal Master Interface to read external temperature sensor

●  Development platform available STM32 / Arduino / ESP8266







 THE ABOVE PRICE INCLUDE



1) 1.02 inch Mini flexible e-ink display small epaper screen * 1pc
2) FPC Connector * 1pc
3) Example code and Manual * 1pc.(Please advise email ID along with order,so that we can send them.)





 MAIN PARAMETERS




PART NUMBER

GDEW0102I3F

TYPE

Dot Matrix

SIZE

1.02 inch

IC

UC8175

RESOLUTION

128x80

OUTLINE SIZE(mm)

32.57x18.6x0.3

ACTIVE SIZE(mm)

21.76x14

PIXEL PITCH(mm)

0.175x0.17

OPERATING TEMP.

0℃~50℃

STORAGE TEMP.

-25℃~70℃

CONNECTOR

30 Pin

MAX GRAYSCALE

2

COLOR

Black,White

INTERFACE

SPI

FULL REFRESH(s)

3

PARTIAL REFRESH TIME(s)

0.3

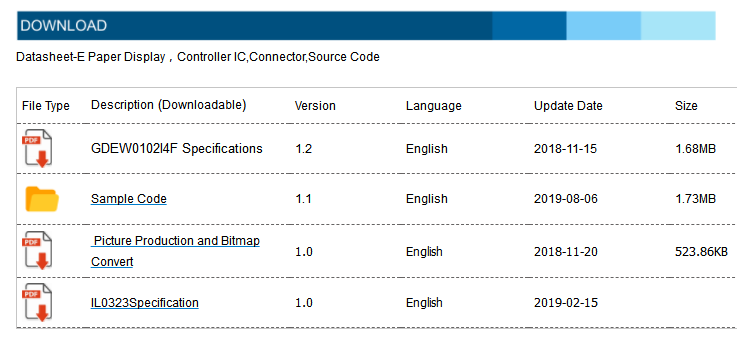

 SPECIFICATION DOWNLOAD




https://www.good-display.com/product/256.html
