☆ INTRODUCTION

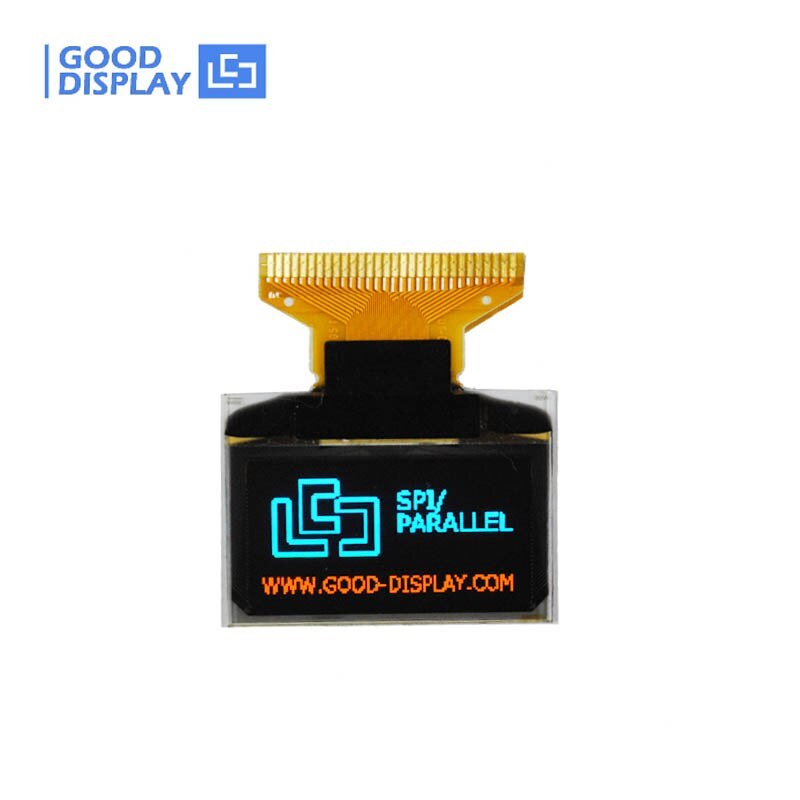

GDO0096YB is the graphic OLED display module made of 128x64 yellow and blue OLED pixels,diagonal is only 0.96 inch.The controller ic SSD1306, communicates via 6800/8080 8-bit parallel and I2C/3-wire/4-wire serial interface,thanks to controller's built-in voltage generation,only a single 3.3V power supply is needed.
Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the soldering type,no need connector.Just solder the FPC on your PCB directly.
Relevant manual about this product on our official website (www.good-display.com), contact us please.
☆ FEATURE
● Self-luminous, no backlight is required.
● Ultra low power consumption.
● Wide operating temperature: -30℃~70℃
☆ THE ABOVE PRICE INCLUDE
1) 0.96 inch small OLED display mini screen panel * 1pc
☆ MAIN PARAMETERS
| PART NUMBER |
GDO0096YB |
| DIAGONAL SIZE |
0.96" |
| DISPLAY MODE |
Passive Matrix |
| DISPLAY COLOR |
Blue+Yellow on Black |
| NUMBER OF PIXELS |
128x64 (16lines Yellow, 48lines Blue) |
| INTERFACE |
I2C |
| Driver IC |
SSD1306 |
| OUTLINE DIMENSION(mm) |
26.70x19.26x1.45 |
| ACTIVE AREA(mm) |
21.744x10.864 |
| BRIGHTNESS(Typ) |
120 cd/m2 |
| VIEW ANGLE |
80/80/80/80 |
| OPERATING TEMP. |
-30℃~70℃ |
| STORAGE TEMP. |
-40℃~80℃ |
| POWER SUPPLY |
2.8V |
