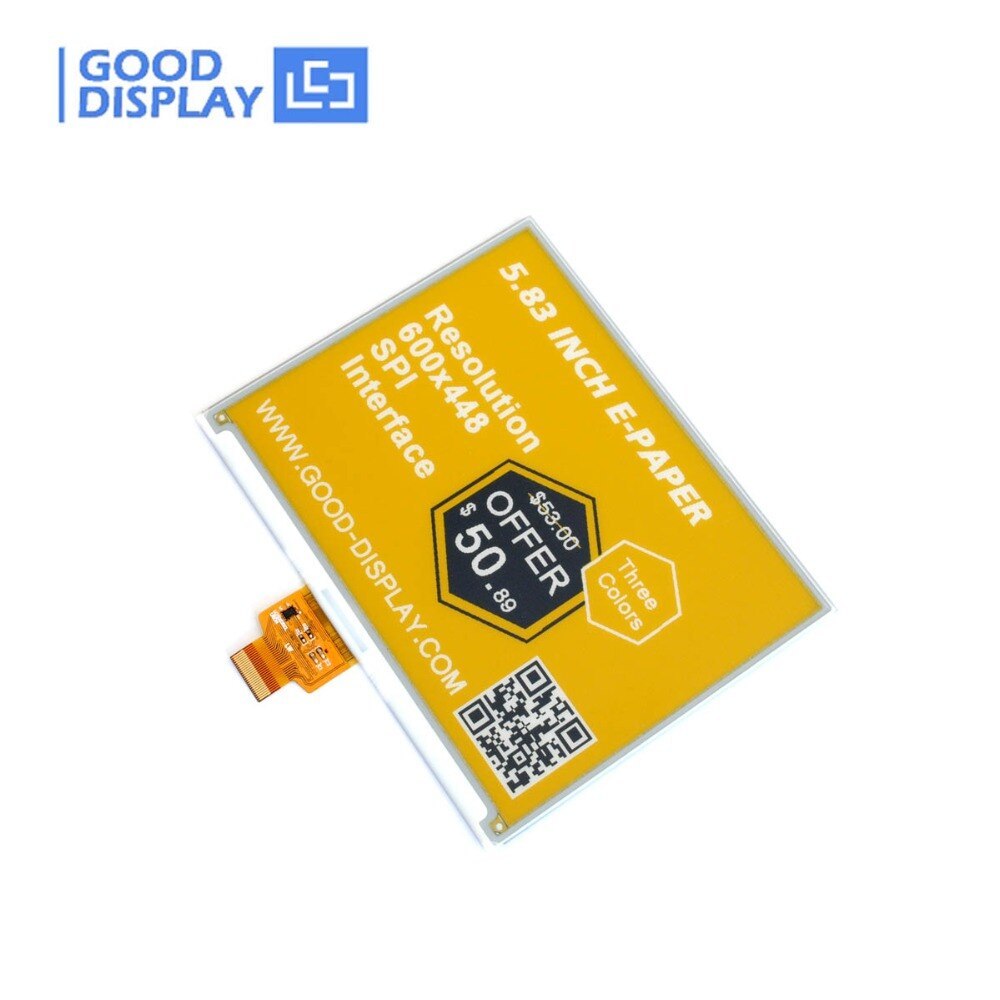

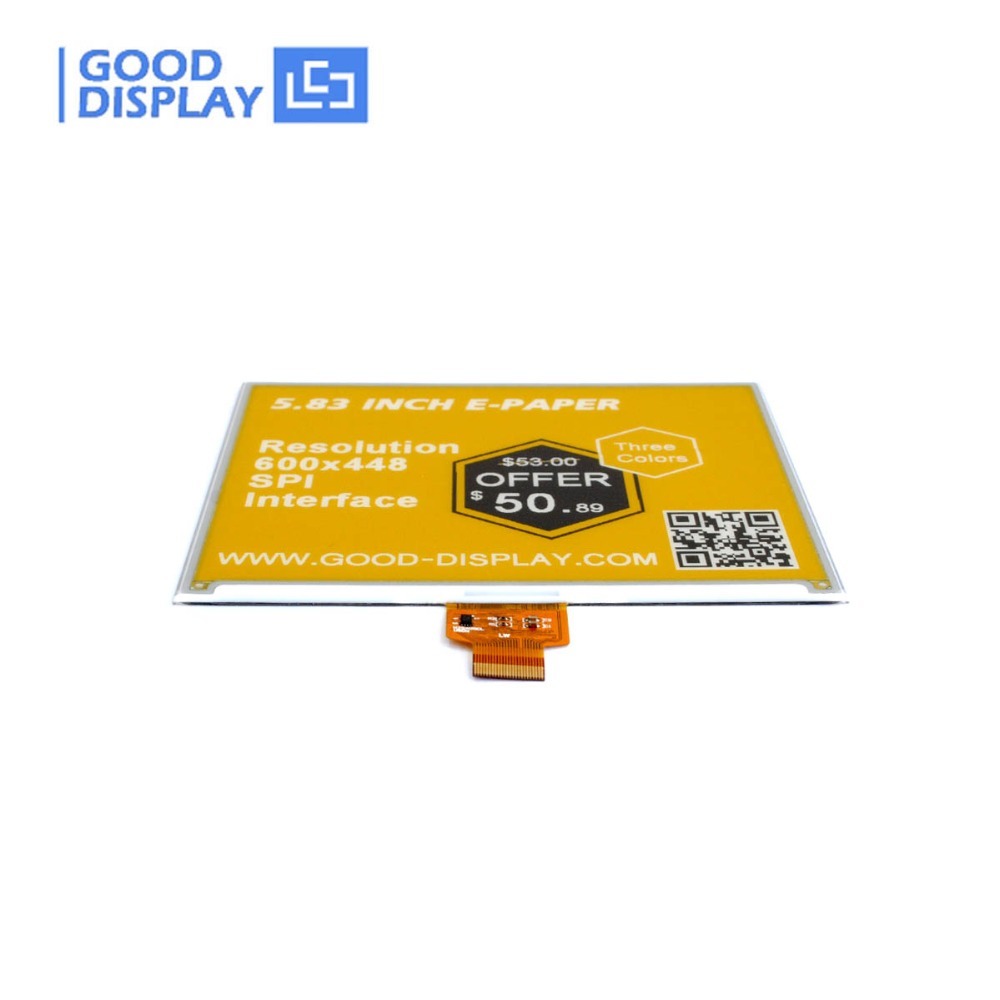

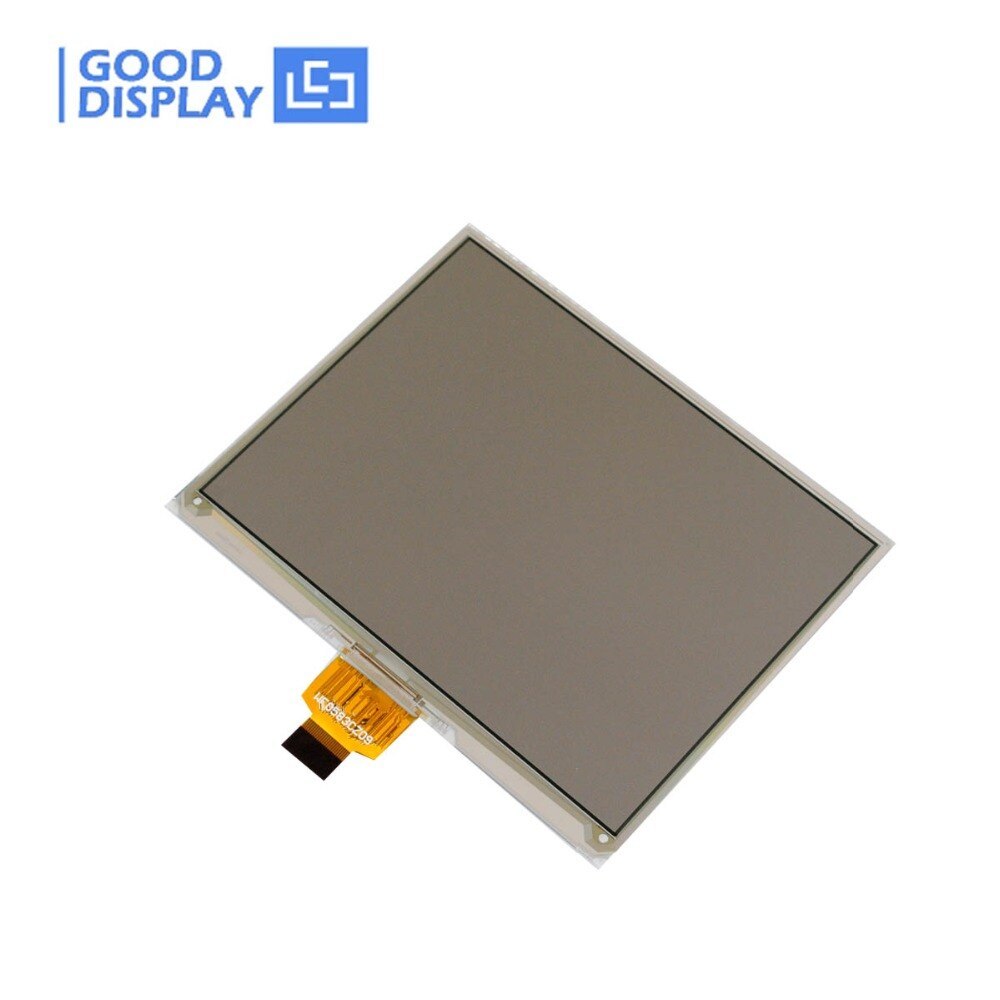

This is a 5.83 inch e-ink display with 648x480 resolution, SPI interface, and the display is capable to display images with black, white and yellow content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.
This 5.83 inch e-ink display GDEW583C64 is perfect for low power devices powered by solar or batteries, or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.
We provide the E-Ink Adapter Board for you to connect the E-paper Display.
We could provide front light, touch screen and other accessories for you.
Relevant manual about this product on Library or you could go to our official website (www.good-display.com), contact us please.
* This e-ink display module DOES NOT support partial updates.

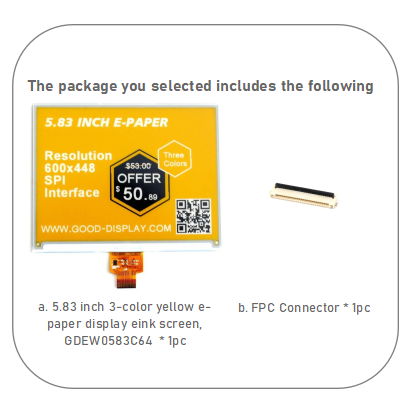

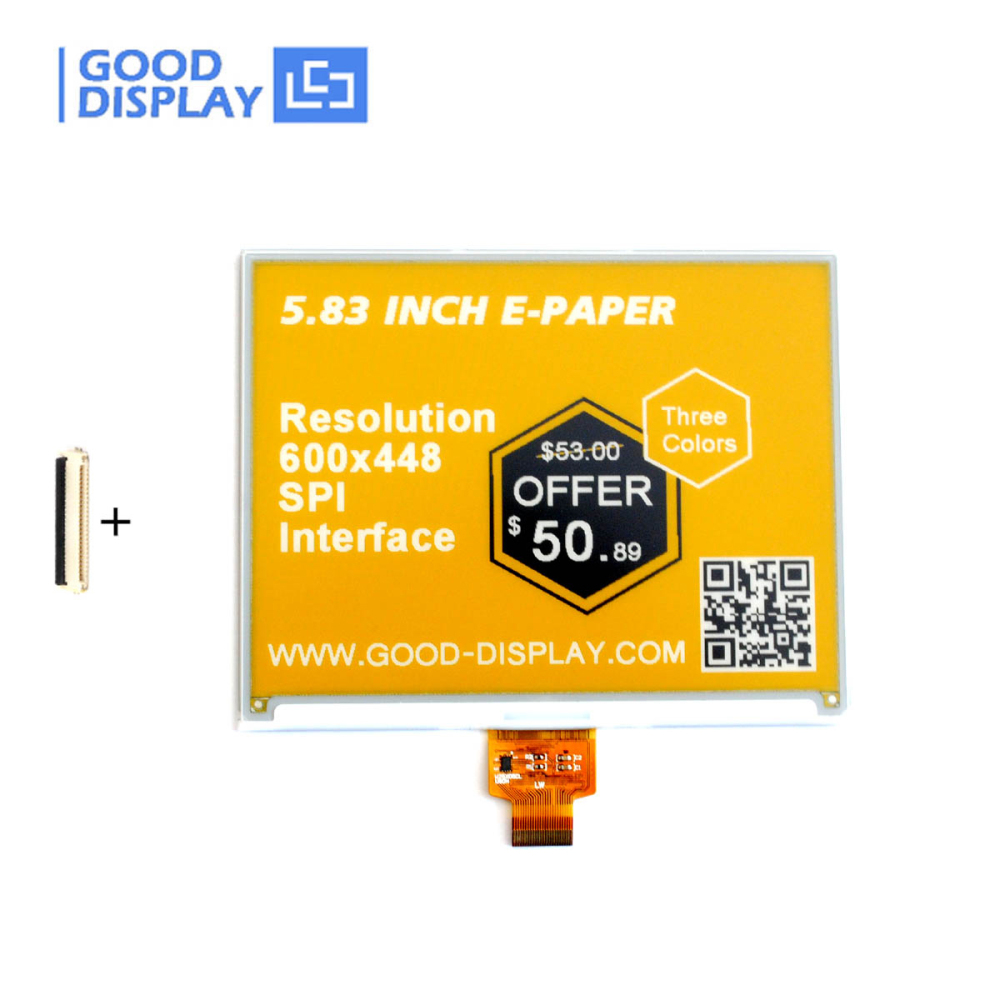

Package A | + | ||||||||
a. 5.83 inch 3-color three colors yellow e-paper display eink screen module, GDEW0583C64 * 1pc | b. FPC Connector * 1pc | ||||||||
|
|||||||||

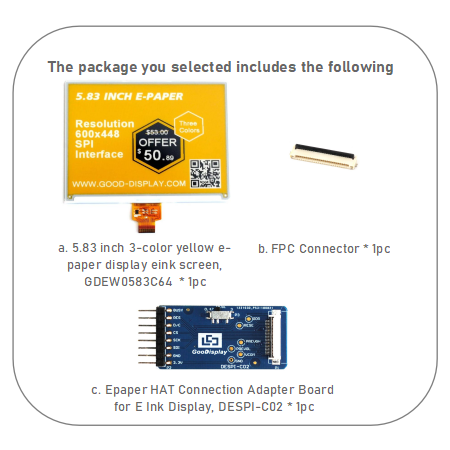

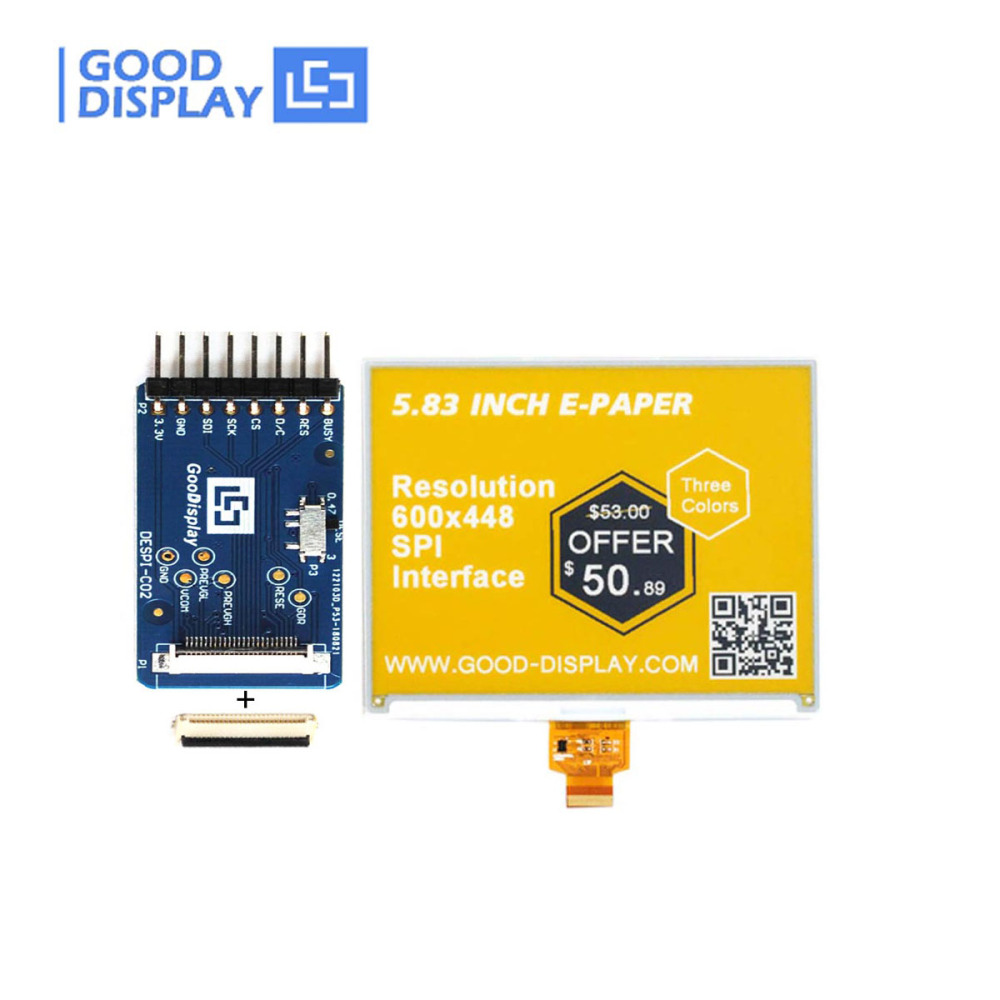

Package B | + | + | |||||||
a. 5.83 inch 3-color three colors yellow e-paper display eink screen module, GDEW0583C64 * 1pc | b. FPC Connector * 1pc | c.Epaper HAT Connection Adapter Board for E Ink Display, DESPI-C02* 1pc | |||||||
|
|||||||||

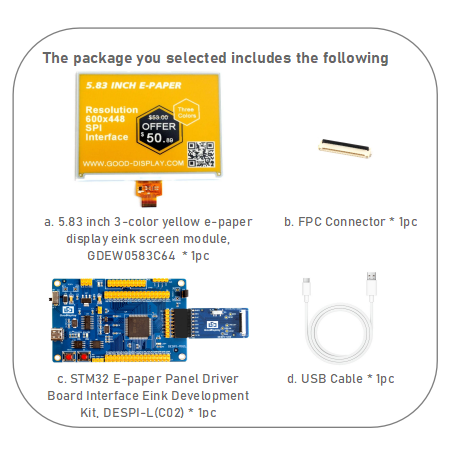

Package C | + | + | + | ||||||
a. 5.83 inch 3-color three colors yellow e-paper display eink screen module, GDEW0583C64 * 1pc | b. FPC Connector * 1pc | c.STM32 E-paper Panel Driver Board Type-C Interface Eink Development Kit, DESPI-L(C02)* 1pc | d. USB Cable* 1pc | ||||||
|
Package D | + | + | |||||
a. 5.83 inch 3-color three colors yellow e-paper display eink screen module, GDEW0583C64 * 1pc | b. FPC Connector * 1pc | c.Arduino E-paper Driving Board Type-C Interface EPD development kit, DEArduino-L(C02)* 1pc | d. USB Cable* 1pc | ||||
|
|||||||
Package E | + | + | |||||
a. 5.83 inch 3-color three colors yellow e-paper display eink screen module, GDEW0583C64 * 1pc | b. FPC Connector * 1pc | c. ESP8266 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP8266-L(C02)* 1pc | d. USB Cable* 1pc | ||||
|
|||||||

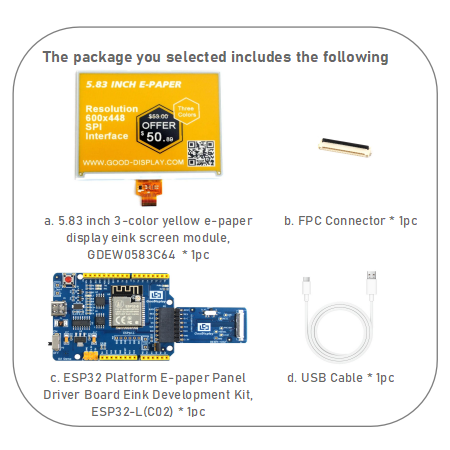

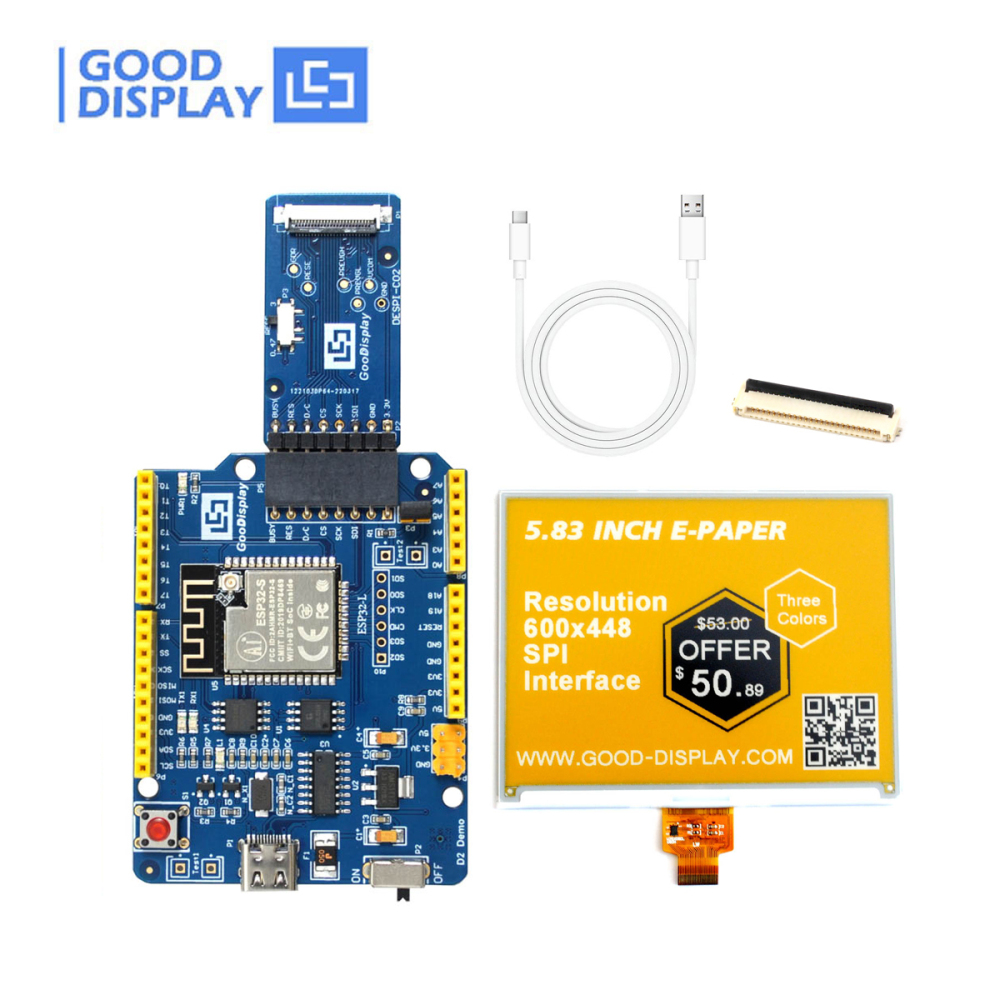

Package F | + | + | + | ||||
a. 5.83 inch 3-color three colors yellow e-paper display eink screen module, GDEW0583C64 * 1pc | b. FPC Connector * 1pc | c. ESP32 Arduino Platform E-paper Panel Driver Board Type-C Interface Eink Development Kit, ESP32-L(C02)* 1pc | d. USB Cable* 1pc |
PART NUMBER |
GDEW0583C64 |
||
TYPE |
Dot Matrix |
STORAGE TEMP. | -25℃~60℃ |
IC | UC8159 | MAX GRAYSCALE | 2 |
RESOLUTION |
600x448 |
COLOR | Black, White, Yellow |

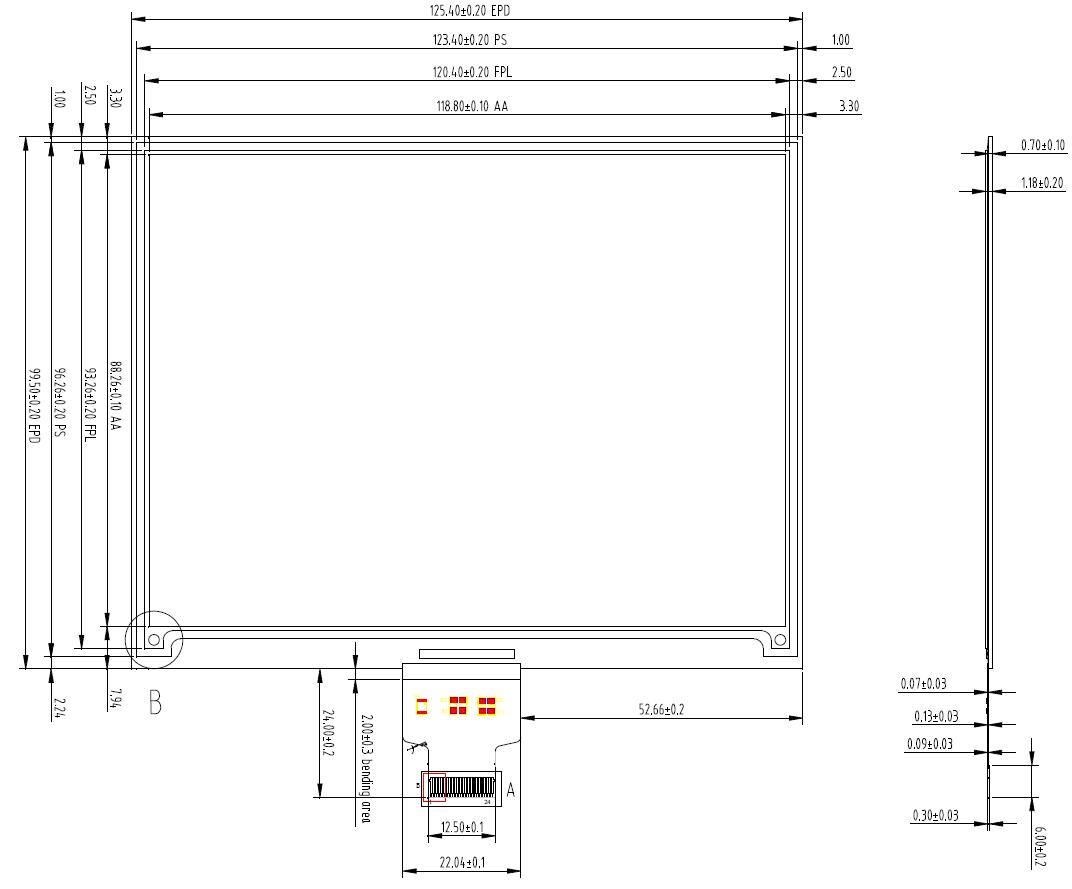

OUTLINE SIZE(mm) |
125.40x99.50x1.18 |
INTERFACE | SPI |
ACTIVE SIZE(mm) |
118.80x88.26 |
POWER CONSUMPTION OF THE REFRESH(mW) | 26.4 |
PIXEL PITCH(mm) |
0.198x0.197 |
STANDBY POWER CONSUMPTION(mW) | 0.0165 |
OPERATING TEMP. |
0℃~40℃ |
TIME OF REFRESH(s) | 25 |
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor.
● Color Optional. We also have other color for you to choose.
● Development platform available STM32 / Arduino / Raspberry Pi / ESP8266 / ESP32
Part Number |
Color |
Resolution |
Feature |
Full refresh time |
GDEY0583Z31 | B/W/R | 648x480 | Three colors,SPI interface | 3.5s |
GDEW0583Z83 | B/W/R | 648x480 | Three colors,High resolution | 12s |
GDEY0583T81 | B/W | 648x480 | High resolution | 3.5s |
● DESPI-C02 (E-ink Display HAT)
● DESPI-L(C02) (STM32 Platform/Universal)
● ESP32-L(C02) (WiFi / Bluetooth)
● DEArduino-L(C02) (Arduino Platform)
● ESP8266-L(C02) (WiFi)
● DESPI-PICO (Rasberry Pi Epaper HAT)
5.83 inch high resolution color red e-paper display Tri-color e-ink screen module buy GDEW0583Z83 |
5.83 inch Epaper Fast Update Screen 648x480 Resolution Paper-Like Eink Display, GDEQ0583T31 |
